Product Details:
|
| Piston Stroke: | 250mm | Structure: | 4 Columns 2 Screws |
|---|---|---|---|
| Effective Test Force Range: | 0.02/100~100% | Certificate: | CE And ISO |
| Elongation Accuracy: | 0.001mm | Operation Method: | Computer Control |
| Brand Name: | GSKA | Certification: | CE SGS ROHS UL |
| High Light: | Tensile Testing Machine,Universal Testing Machine |
||

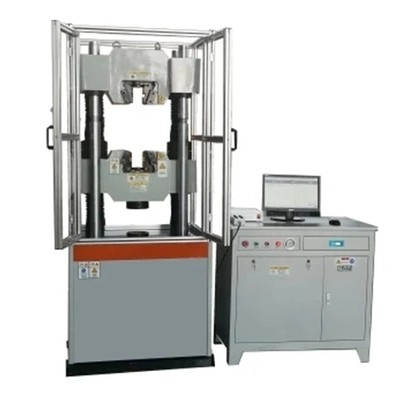

Electro Hydraulic Servo Bolt Tension Testing Machine Microcomputer Controlled
1. The space can be adjusted freely in three sections, which is convenient for experiments with different sample lengths
2. Fully enclosed protection, the protection is safer.
3. Free software upgrades for life
4. The new dovetail jaw clamp plate, quick and convenient sample centering
5. The new dovetail jaws are completely integrated with the joint surface of the clamping plate, which avoids the free sliding of the jaws during the experiment
Description:
Computer control Electro-hydraulic Servo Hydraulic Universal Testing Machine is mainly used to do stretching, compression and bending testing for metal and nonmetals such as rebar,wire rope,anchor rod,bolt fastener,cable and so on.It is widely used in aerospace,petrochemical
industry,wire and cable,machinery manufacturing,plastic, rubber,mining,ceramic building materials,machinery,high polymer mechanics and other industries,as well as colleges and universities,scientific research institutions,technical supervision,quality inspection station and other
departments.
GB/T 2611-2007 "General Technical Requirements for Testing Machines"
JB/T 7406.1-1994 "Testing Machine Terminology Material Testing Machine"
GB/T 16826-2008 "Electro-hydraulic servo universal testing machine"
GB/T 16825.1-2008 "Inspection of Static Uniaxial Testing Machine Part 1: Inspection and Calibration of Tension and/or Pressure Testing Machine Force Measuring System"
GB/T 22066-2008 "Evaluation of Computer Data Acquisition System of Static Uniaxial Testing Machine"
JJG 139-1999 "Tensile, Compression and Universal Material Testing Machine"
JB/T 6146-2007 "Technical Conditions of Extensometer"
JB/T 6147-2007 "Technical requirements for packaging, packaging marks, storage and transportation of testing machines"
GB/T 228.1-2010 "Metallic Materials Tensile Test Part 1: Room Temperature Test Method"
GB/T 7314-2005 "Metal material room temperature compression test method"
GB/T 232-2010 "Metal material bending test method
ASTM E8 Standard Test Methods for Tension Testing of Metallic Materials
Main Technical Parameter:
| Controller | Full computer operation |
| Maximum force | Optional within 50KN |
| Effective itinerary | 900mm |
| Double column width | 425mm |
| Features | Full computer control, curve, displacement, report output |
| Speed | 0.01~500mm/min |
| Force display accuracy | 0.001kg |
| Equipment level | 0.5 level |
| Motor | Servo |
| Transmission | Ball screw rod |
| Fixture | A pair of tensile and rotary clamps are provided as standard |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair

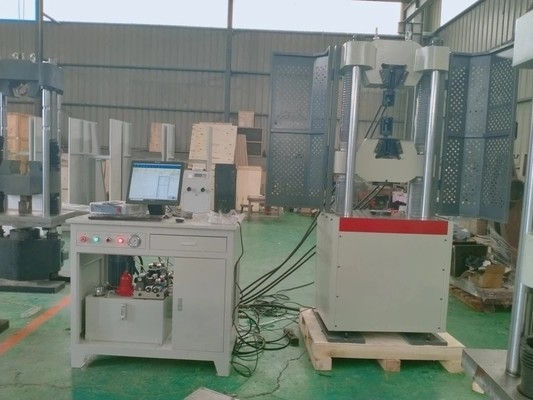

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
