Hydraulic Tensile Testing Machine Servo Control Universal Testing Machine OEM

Hydraulic Tensile Testing Machine Servo Control Universal Testing Machine OEM

Product:

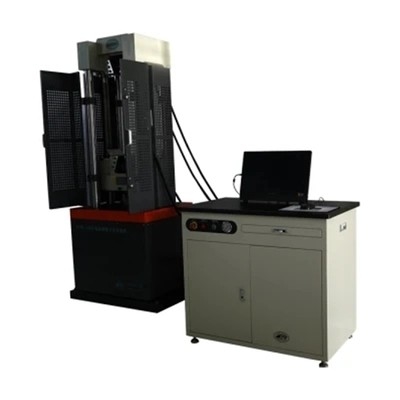

This series of testing machines is clamped in the form of hydraulic jaws,controlled by a hand-controlled valve to control the testing machine,and a testing machine that displays the test curve by a microcomputer screen display.lt is mainly used to stretch,compress and bend metal and non-metal materials.Tests such as cutting,shearing,etc.,computter screen display load curve,force value,loading speed,displacement,etc.,aytomatically record data,print data results.The host uses four-column double-screw test space architevture and high-strength,high-toughness,and beautiful protection nets for securityprotection.It is a necessary equipment for research institutes,matallurgy and machinery factories,quality in spection stations,and universities and colleges.
Features of control and data processing system:
1) With advanced chipping technology and professionally designed data gathering and amplifying system,the tester is highly integrated,reliable and convenient. Control software automatically derives data of tensile strength, yield strength, fracture strength, modulus of elasticity,
elongation.The open formula edition function allows automatic calculation of force, tension displacement deformation at any designated point. The standard in the process of control and data processing meet national requirement for testing metallic material and non-metallic material.
2) Control method: fixed speed, fixed displacement, fixed loading, fixed load increasing rate,fixed tension, fixed tension
increase rate.
3) Automatically resetting: After the test begins, measuring system automatically reset to zero.
4) Automatic shifting: automatically changes range when load changes to make sure precise collection of data.
5) Automatic saving: testing data and testing condition are automatically stored to avoid data loss caused by forgetting saving.
6) Batch testing: For specimen with same setting, batch test can be performed after setting the test sequence.
7) Display mode: data and curve are presented while testing.
8) Curve display: after testing, it is possible to revisit the curve to analyze. Move your mouse on the curve to find relative
data at each point.
9) Curves: parameters: stress-strain, force-displacement, force-time, displacement-time results are displayed and printable.
10) Parameters: Force parameters(g,kg,N,lb) Stress parameters(kg/mm2,N/mm2,Mpa,lbf/in2) Displacement parameters (m,mm,in)
11) Test report: test reports are edited and printed according to the desired format by client and can be output as Excel files.
12) Safety protection : safety mechanism is triggered when overloading is above 2~10%
13) The tester is able to automatically test and calculate mechanic property of specimen. It is also possible to intervene
manually in the analyzing process. Automatic analyzing test results are revised according to relevant standard to improve data accuracy.

Main Technical Parameter:

Customer Support Services:

Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
