Product Details:
|
| Loading Method: | Static Load | Power Source: | AC220V |
|---|---|---|---|
| Effective Test Force Range: | 0.02/100~100% | Working Environment: | -10~50 Degree |
| Elongation Accuracy: | 0.001mm | Operation Method: | Computer Control |
| Place Of Origin: | Dongguan China | Brand Name: | GSKA |
| High Light: | Tensile Test Equipment,Tensile Strength Tester |
||

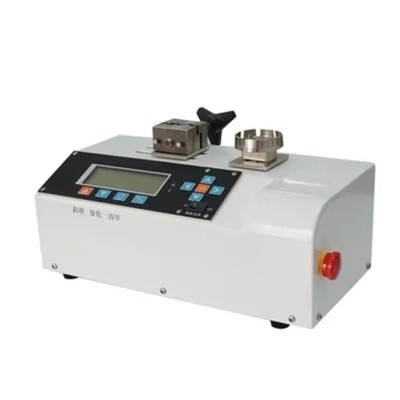

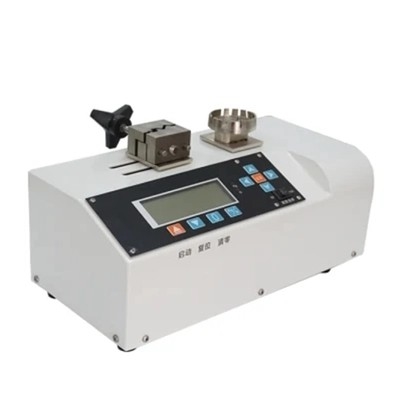

Digital Cable Wire Display Terminal Tensile Testing Machine OEM
Features:
This is a high-precision testing instrument for processing wire and cable tensile testing for wire harness manufacturing industry.
Processing wire and cable tensile testing for wire harness manufacturing industry
Special fast jig for wire harness, automatic test, force sensor adopts original NTS sensor imported from Japan
The loading device is driven by motor, and the load measurement adopts imported load sensor with high precision and stability
The control part adopts full digital microprocessor control, force value LCD display and expandable PC interface for convenient data processing
The wire tensile testing machine is compact, easy-to-use, accurate in control, high in measurement accuracy, and convenient for specimen mounting. It is the ideal equipment for wire harness manufacturers to ensure product quality
Product Features:
1. Servo Motor Control
2. The machine includes a thermal printer, which can automatically output the test results;
3. Units can be switched arbitrarily: Strength: kN/N/kgf/gf/t/lbf;
4. Displacement: mm/cm/in;
5. Automatic homing function;
6. The overload protection function can be set;
7. Various test methods such as fixed load and positioning displacement.
8. The height and angle of the control screen are adjustable, which can better match the usage habits of various groups of people.
Product description:
| Model | GSKA-03 |
| Measuring range | 0~1000(N) or 0~100(Kg) |
| Unit of measure | kilogram(Kg)/Newton(N) |
| Display | 6-digit LCD display |
| Sensor accuracy | +0.2% (full scale) |
| Power supply voltage | 220V,50Hz; 110V,60Hz |
| Working environment | -10~50ºC |
| Maximum stroke | 43(mm) |
| Weight | 15kg |
| Dimensions | 42*25*25cm |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
