Product Details:
|
| Voltage: | AC220V/110V, 50/60Hz | Induction Method: | Precision Load Cell (sensor) |
|---|---|---|---|
| Effective Test Force Range: | 0.02/100~100% | Transport Package: | Wooden Case |
| Elongation Accuracy: | 0.001mm | Operation Method: | Computer Control |
| Brand Name: | GSKA | Certification: | CE SGS ROHS UL CE |
| Highlight: | Tensile Test Equipment,Tensile Strength Tester |
||

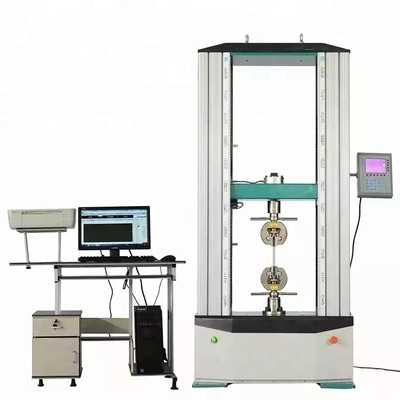

Geosynthetics Wide Tensile Testing Machine Intelligent Touch Interface
Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Standards:
ASTM D4595, BS EN ISO 10319, EN ISO 12236(GB/T14800), ASTM D5034, ASTM D5035, ASTM D-4533, BS6906.1,GB/T16989
Features:
1. Smart touch interface, 5.7-inch super large screen, click at will.
2. The load cell adopts a 0.5-level high-precision load cell.
3. Adopt the international high-end all-aluminum alloy shape design, and the surface is treated with sandblasting and anodizing process.
4. The Chinese and English dual interface can be switched arbitrarily, and the test curve, graph, and data can be displayed dynamically.
5. Adopt advanced digital signal processing (DSP) technology, Philips 32-bit full digital control and 2500 f/s high-speed data acquisition.
6. Taiwan precision pre-loaded ball screw, no backlash, high positioning accuracy.
7. Non-clutch drive device, capable of running at full speed under maximum force.
8. Fully comply with "Mechanical Equipment 2006/42/EC", "Low Voltage 2006/95/EC", "EMC Directive 20044/108/EC" and GOST-R;
Technical specifications:
| Model | GSKA-010 | GSKA010D |
| Test method & Control | CRE principle, microcomputer control, LCD display, support for online |
CRE principle, microcomputer & computer dual control, dual-screen display |
| Test load | 5KN;10KN; 30KN; 50KN | |
| Sampling frequency | 2500hz | 2500hz |
| Measuring force range | 1%~100% of full scale | 1%~100% of full scale |
| Force measurement accuracy | ≤±0.02%F.S | ≤±0.02%F.S |
| Stretching speed | 0.05-500mm/min | 0.05-500mm/min |
| Effective stroke of beam | 800mm Resolution: 0.01mm | 800mm Resolution: 0.01mm |
| Holder: wide strip tensile test | width 200mm; tear test: width 100mm | width 200mm; tear test: width 100mm |

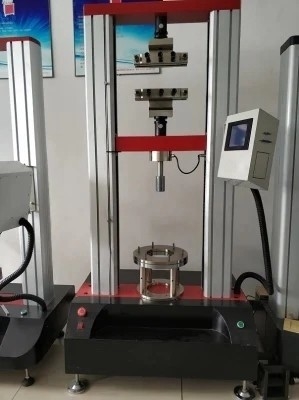

| CBR burst test | φ50×100mm | φ50×100mm |
| Power supply: | AC220V±10% 50Hz 1.5KW | AC220V±10% 50Hz 1.5KW |
| Dimensions | 860×600×1800mm | 860×600×1800mm |
| Weight | 300kg | 320kg |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
