Product Details:
|
| Range Of Speed: | 0.5-1000mm/min | Resolution: | 1/250,000 |
|---|---|---|---|
| Effective Testing Space: | 120mm Max | Optional Accessories: | Stretcher, Air Clamp |
| Capacity Choice: | 1.2.5.10.20.50.100.200.500kg Optional | Specification: | UL, CE, ISO9001, CCC, RoHS |
| Accuracy: | ±0.5% | Weight: | 80KG |
| High Light: | Universal Tensile Tester,Universal Testing Machine |
||

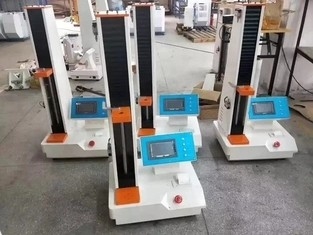

Tensile Strength Test Of Servo Motor Electronic Universal Testing Machine
Usage:
This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.
1. Product Description
A. Using the computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
B. Having steady performance, high accuracy, powerful software function and easy operation.
C. Using the USA high-precision load cell.Machine accuracy is ±0.5%.
| Range of speed | 0.5-1000mm/min |
| Motor | Japan Panasonic Servo Motor |
| Capacity choice | 1.2.5.10.20.50.100.200.500kg optional |
| Resolution | 1/250,000 |
| Effective testing space | 120mm max |
| Accuracy |
±0.5%
|
| Operation method | Windows operation |
| Accessories | computer, printer, system operation manual |
| Optional accessories | stretcher, air clamp |
| Weight | 80KG |
| Dimension | (W×D×H) 58×58×125cm |
| Power | 1PH, AC220V, 50/60Hz |
| Stroke protection | Upper and lower protection, prevent over preset |
| Force protection | system setting |
| Emergency stop device | Handling emergencies |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
