Product Details:
|
| Effective Testing Space: | Width 750mm Or Customized | Stress Speed: | 1-45Mpa/s |
|---|---|---|---|
| Test Type: | Tensile Strength Test / Loading Hold Test | Power Supply: | AC220V±10% 50HZ |
| Brand Name: | GSKA | Certificate: | CE |
| Range Of Testing Force: | 1%-100% | Technical Parameters MODEL WAL-3000 Maximum Load 3000kN Structure Single Rod Double-acting Cyli: | Better Than ±0.5% Of Indication |
| High Light: | Tensile Test Equipment,Tensile Strength Tester |
||
OEM Computer Control Universal Testing Machine Compression 5000KN
Application:

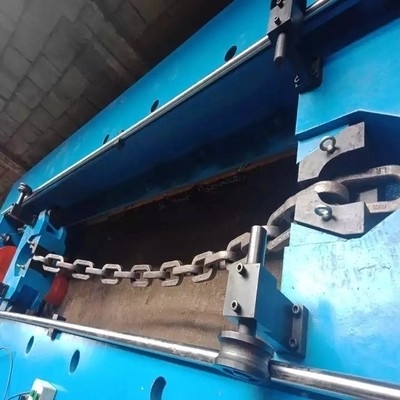

Microcomputer controlled electro-hydraulic servo horizontal testing machine is a kind of suitable for chain, rope, wire rope, electrical accessories tensile test, fracture test, cycle test, tensile test, elongation measurement of special high precision test equipment. The equipment can realize automatic operation and complete the test automatically by computer software. The device adopts load sensor and spherical centering device, which is composed of thrust cylinder, frame and lifting platform. The equipment is driven by special power hydraulic source, electro-hydraulic servo control technology, computer data acquisition and processing, which can realize automatic closed-loop control. The equipment consists of test host, oil source system (hydraulic power source), measurement and control system,
Introduction to Main Structure:

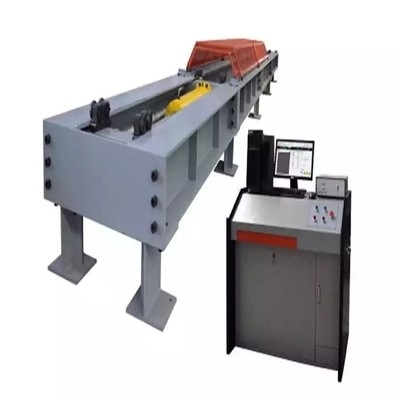

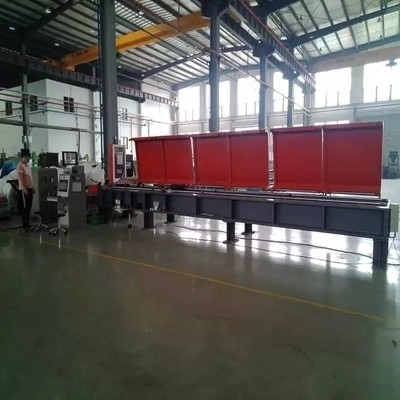

The main engine adopts horizontal frame structure, the cylinder stroke is 2000mm, the maximum test space is 9000mm. The two beams, the fixed beam and the thrust beam with drawing fixture are made of steel plate. The trusses are welded by thick steel plates and machined on horizontal machining centers. All auxiliary tools are finished by heat treatment of alloy steel. The overall design bearing capacity of the frame structure is 5000kN, which ensures the accuracy, stability and reliability of the testing machine.
The tension test space is adjusted by moving the remote beam back and forth. For electric remote control, the beam movement can be controlled by close micromotion to make the positioning more accurate. At the same time, there is no need for manual push, which is fast and labor-saving. The ends of the bolts are vertically inserted into the guide rail and the remote beam by manual assistance. The bolt operation realizes the beam positioning and completes the space adjustment of the testing machine. The 500mm step adjustment is very convenient.
The main machine adopts high precision load sensor, which has high comprehensive accuracy, high sensitivity and good repeatability. After random calibration, the test is not affected by external forces, which can ensure the accuracy of the test process and parameters. The calibration is simple and convenient.
The whole machine design in the beautiful, convenient, safety and other aspects have been fully considered. Such as:
Test space adjustment is convenient and fast; Special fixture clamping reliable; All parts of the testing machine are treated with strict anti-rust. The rod surface is plated with hard chromium and polished with anti-rust to ensure the quality and beauty of the equipment and satisfy customers.
| MODEL | WAL-3000 |
| Maximum load | 3000kN |
| Structure | Single rod double-acting cylinder frame structure |
| Drive control mode | Computer controlled electro-hydraulic servo control |
| Test type | Tensile strength test / Loading hold test |
| Overload protection | 105% overload protection |
| Noise of the whole machine | no more than 70dB |
| Accuracy of load indication | better than ±1% of indicated value |
| Load resolution |
500000 yards, and the whole resolution remains unchanged |
| Load control accuracy | Class 1.0 (class 0.5 is optional) |
| Force value measuring range | 2%~100%F·S (the whole process is not divided into files) |
| Stress control accuracy | better than ±1% of the indicated value |
| Accuracy of displacement indication | better than ±0.5% of indication |
| Displacement resolution | 0.001mm |
| Displacement control accuracy (speed) | better than ±0.5% of the indicated value |
| Piston moving speed range | 0-100mm/min full load stepless speed regulation |
| Piston stroke | 500mm-1500mm |
| Maximum Tension space | 4000mm-30000mm |
| Tension space adjustment interval | 500mm |
| Tension space width (inner clear width) | 600mm |
| Height of the center of the Tension space | 600mm |
| Total motor power | 4.0 KW |
Customer Support Services:
1. Installation
2. Training (Training customer employees)
3. Calibration
4. Preventative maintenance
5. Replacement parts
6. Assistance via phone or internet
7. On-site diagnosis and repair/online diagnosis and repair
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
