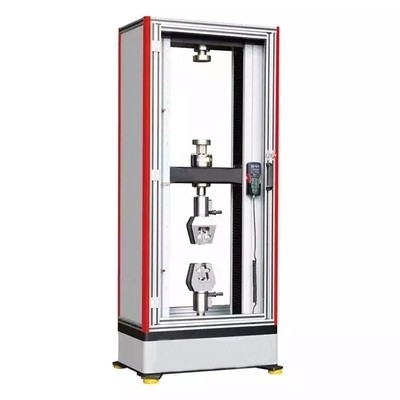

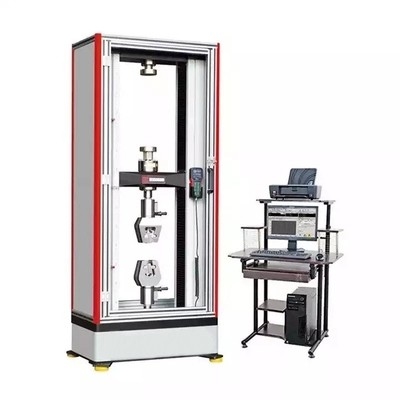

Frequency Conversion System Tension Testing Machine With Hydraulic Clamp OEM

Frequency Conversion System Tension Testing Machine With Hydraulic Clamp OEM
Frequency Conversion System Tension Testing Machine With Hydraulic Clamp OEM Frequency Conversion System Tension Testing Machine With Hydraulic Clamp OEM

Large Image :  Frequency Conversion System Tension Testing Machine With Hydraulic Clamp OEM

Product Details:
Place of Origin: DongGuan,China
Brand Name: GSKA
Certification: CE ISO
Model Number: Universal Tensile Testing Machine
Payment & Shipping Terms:
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time: 15-20working days after received deposit
Payment Terms: L/C, T/T
Supply Ability: 150 Set / Sets per Month

Frequency Conversion System Tension Testing Machine With Hydraulic Clamp OEM

Place Of Origin: Dongguan China Accuracy Class: 0.5
Speed Accuracy: Less Than ±0.5% Operation Method: Computer Control
Brand Name: GSKA Induction Method: Precision Load Cell (sensor)
Effective Test Force Range: 0.02/100~100% Power: Electronic
High Light:

Tensile Test Equipment


Tensile Strength Tester

Frequency Conversion System Tension Testing Machine With Hydraulic Clamp OEM


Industry and functional characteristics:

1, metal tensile testing machine: metal material tensile strength, small elongation, need to configure metal punctuation extensiometer.

2, rubber tensile testing machine: rubber or elastomer elongation is relatively large, need to be attached with a large punctuation elongation device, at the same time the fixture design to consider the characteristics of rubber, can not slip. Can be added with O - ring fixture, tire industry fixture, etc.

3, plastic tensile testing machine: plastic tensile strength is bigger than rubber, elongation is big or small, and often to test three point bending test.

4, textile tensile testing machine: textile industry needs to test fabric peeling, piercing, tearing, single yarn tensile test, fixture and software is special.

5, paper tensile testing machine: paper needs to test tensile strength, ring compressive strength, vertical pressure, flat pressure, side pressure, peel strength, etc., more fixtures.

6, leather tensile testing machine: leather needs to test tensile strength, tear strength, etc., the test item is relatively simple.

Four, according to the test materials: metal material fixture and non-metal material fixture;

Five, according to the test temperature: normal temperature fixture, high temperature fixture, low temperature fixture, high and low temperature fixture;

Six, according to use: stretching fixture, compression fixture, bending fixture, cutting fixture, stripping fixture, tearing fixture, sealing fixture, bending and bending fixture;

Seven, according to the degree of automation: manual fixture, pneumatic fixture, electric fixture, hydraulic fixture.


Control system:

1, frequency conversion system tensile testing machine: the use of frequency conversion motor control system, stretching, compression speed through the frequency conversion governor control.

2, servo system tensile testing machine: servo motor control system, stretching, compression speed and displacement control is more accurate. The servo motor system is a servo control system with intelligent feedback operation, which can be used for speed test, cycle test, programming test and so on.

3, other driving mode tensile testing machine: through the DC motor control, the driving mode of tensile testing machine due to low cost performance, has been gradually phased out.


Main Technical Parameter: Tensile Test Equipment:


Max capacity 5kg,10kg,25kg,50kg,100kg,250kg,500kg,1000kg,2000kg,5000kg(It is optional.) can be setting
Induction method : Precision load cell (sensor)
Max. Load Capacity : 5000kg
Force Resolution/Accuracy: ± 0.5%
Accuracy class : 0.5
Resolution: 1/1,000,000
Test width: 400mm(Standard specifications special specifications can be customized)
Test stroke : Max.700 mm( included the fixture)
Stroke Resolution: 0.01mm
Speed range: 0.001-20inches/min
Reference Machine Dimension: 800×530×1600mm (L*W*H) Support Customized
Power : 1 phase 220V 50/60Hz
Packing Standard Export plywood case
Force system servo drives + Servo motor + precision ball screw drive
Control system Mechanical transmission + TM2101 + Pulse Command and Control System control
Measurement and Control System TM2101 and control system; master controller uses the most advanced 32-bit ARM processor in the 21st century, the processing speed
of the Pentium-class common computer standards, compared to the traditional 8 yuan SCM control system overall performance greatly
improved, faster operation, control accuracy higher

Obtain data
The key components are used America's most stable and ultra-precision 24 yuan AD,
sampling rate of up to 2000 times / sec, can capture the power of instantaneous change process, the entire file, regardless of the
resolution of up to 1,000,000 indexing
Displacement Control: Displacement encoder count with four frequency technology
So that the displacement of four times
the resolution can up to 0.0005mm
Safety devices: 1. overload, emergency stop device
2. the upper and lower travel limit devices
3. the test is completed automatic shutdown device
Reference standard
ASTM D903, ASTM E8 CNS11888, JIS K6854, PSTC7 ASTM D903,GB/T16491CNS-11888,JIS K6854, PSTC-7 ,ASTM E4,ASTM D828,ASTM D882,ASTM,D1938,ASTM D 412 ,ISO 8339ASTM D3330,ASTM F88,ASTM F904,ISO 37,JIS P8113,QB/T 2358,QB/T 1130 , ISO 527 ,ISO 178 and other

Frequency Conversion System Tension Testing Machine With Hydraulic Clamp OEM 0


Customer Support Services:

Ø Installation

Ø Training (Training customer employees)

Ø Calibration

Ø Preventative maintenance

Ø Replacement parts

Ø Assistance via phone or internet

Ø On-site diagnosis and repair/online diagnosis and repair

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.
