Product Details:
|
| Place Of Origin: | Dongguan China | Material: | Stainless Steel |
|---|---|---|---|
| Speed Accuracy: | Less Than ±0.5% | Operation Method: | Computer Control |
| Brand Name: | GSKA | Stoke: | 650~1200mm |
| Effective Test Force Range: | 0.02/100~100% | Power: | Electronic |
| High Light: | Tensile Test Equipment,Tensile Strength Tester |
||

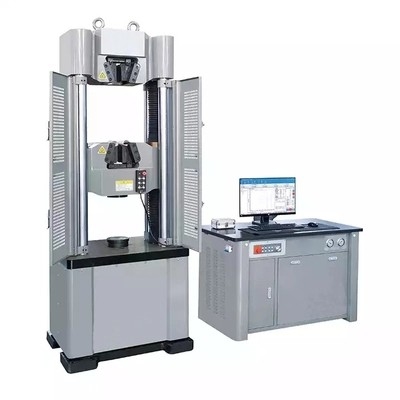

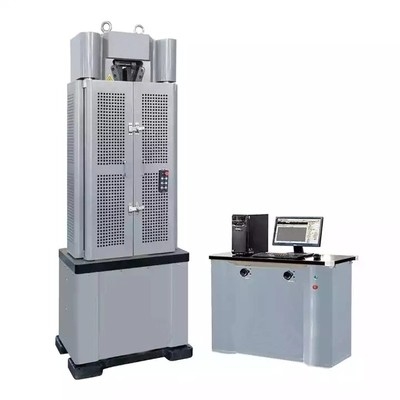

OEM Computerized Tensile Testing Machine Panasonic Sevor Drive
range of application:
Electronic tensile testing machine, also known as electronic tensile machine, suitable for plastic film, composite materials, adhesives, adhesive tape, stickers, medical patch, protective film, from type paper, backplane materials, rubber, paper, fiber products such as tensile, stripping, deformation, tearing, heat sealing, bonding, puncture force, opening force, low speed performance test solution volume force etc, are widely applied in daily production. Electronic tensile testing machine is a combination of modern electronic technology and mechanical transmission technology products, is to give full play to their own strengths and constitute a large precision testing instrument, can be stretched on a variety of materials, compression, bending and other performance tests, and has a wide range of measurement, high precision, fast response and other characteristics. Reliable work, high efficiency, can be real-time display of the test data, record, print. Electronic tensile testing machine is composed of measuring system, driving system, control system, and computer structure
Structure principle:
The computer tension testing machine is designed by mechatronic integration, mainly composed of force sensor, transmitter, microprocessor, load driving mechanism, computer and color inkjet printer. High precision electronic speed regulating motor can be set stepless test speed. All integrated components are connected by interpolation. Floor type models, modeling and painting are fully considered the modern industrial design, ergonomic principles.
| Item | Description |
| Frame capacity | 10T |
| Load cell brand | USA brand transcell load cell for high accuracy 10T (2T, 5T are optional) |
| Load accuracy | 0.5% F.S |
| Control system | PC with windows 7 system |
| Motor | Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Vertical test space | 1100mm including fixture |
| Horizontal test space | ≤400mm |
| Test speed | 0.1~300mm/min (adjustable) |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features | E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Universal test software:
The TM2101 software is designed purposely for computer controlled electronic universal testing machine, used for tension, compress, bend, shear, tearing andpeel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force maximum deformation, yielding point and elastic modulus; this universal test equipment system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
