Product Details:
|
| Warranty: | 1 Year | Maximum Loadsupport: | 3000kN |
|---|---|---|---|
| Test Type: | Tensile Strength Test / Loading Hold Test | Resolution Of Testing Force: | 1/200000 |
| Brand Name: | GSKA | Certificate: | CE |
| Range Of Testing Force: | 1%-100% | Technical Parameters MODEL WAL-3000 Maximum Load 3000kN Structure Single Rod Double-acting Cyli: | Better Than ±0.5% Of Indication |
| High Light: | Tensile Test Equipment,Tensile Strength Tester |
||

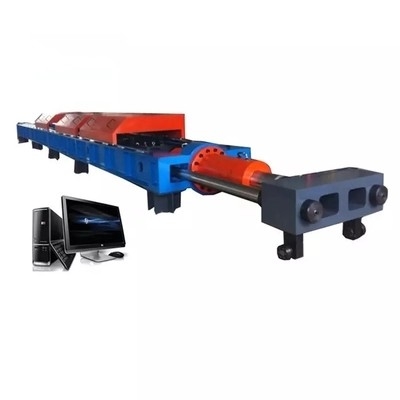

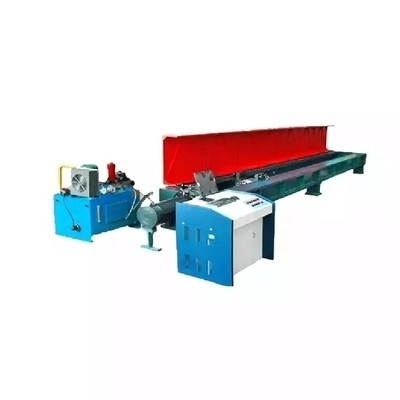

Microprocessor Control Horizontal Tensile Testing Machine OEM
The machine is introduced:
1. The body is welded with high manganese steel plate, which has the advantages of tensile resistance, vibration resistance, durability and deformation. Equipped with ultra-high pressure pump system, to ensure sufficient power to easily complete the experiment.
2. Electro-hydraulic servo automatic control technology is adopted to automatically control the propulsion speed of two cylinders, and the tension test can be completed with simple operation.
3, high precision weighing sensor, by the national metrology institutions, the measurement accuracy is better than 1%.
4. The tension test is controlled by computer, with simple operation interface and complete functions. The test is completed by simply manipulating the mouse to select. Data and corresponding curves can be displayed in real time.
5. The computer completes data acquisition and analysis directly after the tensile test, and then prints the test report and line chart.
6, can be configured with high precision camera, so that you can easily grasp the whole tension process, and take photos in the process.
7, the equipment can complete all kinds of tests, such as static tensile test, fracture tensile test, displacement test, fatigue test, etc.
8, this machine is suitable for tensile test of all kinds of rigging, such as steel wire rope, steel wire rope, lifting belt, strength ring, shackle, etc. We can also provide tensile test solutions for special-shaped parts according to customer needs.
| MODEL | GSKA-3000 |
| Maximum load | 3000kN |
| Structure | Single rod double-acting cylinder frame structure |
| Drive control mode | Computer controlled electro-hydraulic servo control |
| Test type | Tensile strength test / Loading hold test |
| Overload protection | 105% overload protection |
| Noise of the whole machine | no more than 70dB |
| Accuracy of load indication | better than ±1% of indicated value |
| Load resolution |
500000 yards, and the whole resolution remains unchanged |
| Load control accuracy | Class 1.0 (class 0.5 is optional) |
| Force value measuring range | 2%~100%F·S (the whole process is not divided into files) |
| Stress control accuracy | better than ±1% of the indicated value |
| Accuracy of displacement indication | better than ±0.5% of indication |
| Displacement resolution | 0.001mm |
| Displacement control accuracy (speed) | better than ±0.5% of the indicated value |
| Piston moving speed range | 0-100mm/min full load stepless speed regulation |
| Piston stroke | 500mm-1500mm |
| Maximum Tension space | 4000mm-30000mm |
| Tension space adjustment interval | 500mm |
| Tension space width (inner clear width) | 600mm |
| Height of the center of the Tension space | 600mm |
| Total motor power | 4.0 KW |
Customer Support Services:
1. Installation
2. Training (Training customer employees)
3. Calibration
4. Preventative maintenance
5. Replacement parts
6. Assistance via phone or internet
7. On-site diagnosis and repair/online diagnosis and repair
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
