Product Details:
|
| Power: | Electronic | Induction Method: | Precision Load Cell (sensor) |
|---|---|---|---|
| Effective Test Force Range: | 0.02/100~100% | Accuracy: | ±0.5% |
| Stoke: | 650~1200mm | OEM: | Accept OEM |
| Operation Method: | Computer Control | Band: | GSKA |
| High Light: | Tensile Test Equipment,Tensile Strength Tester |
||

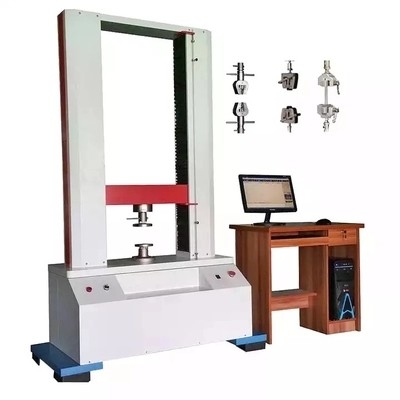

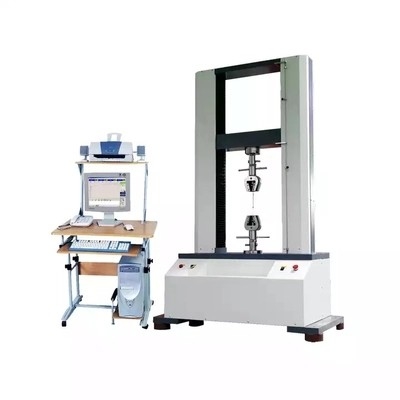

Servosystem Mechanical Tensile Testing Machine High Sensor Accuracy
The choose and buy things:
1, should first consider the need to test the material tension range
Tension range of different, determines the use of different sensors, also determines the structure of the tension machine, but the impact on the price is not big (except the door). For general flexible packaging manufacturers, the tension range of 100 Newtons is enough. Therefore also decided to use the single arm type is OK. The corresponding structure of the single arm type is the door type structure, which is adapted to a relatively large pulling force, such as a ton or more. So flexible packaging manufacturers basically do not need.
2. The problem of test stroke
According to the needs of flexible packaging film test performance and requirements, stroke in 600-1500mm can be. For material elongation over 1000%, the stroke of 1000 or 1200mm can be selected.
3. Standard configuration problem
Intelligent three basic configuration: mainframe, microcomputer, and printer, if the microcomputer is powerful can print directly. It can also be equipped with ordinary computers. With computers, sophisticated data analysis can be performed, such as data editing, local magnification, the ability to adjust the form of the report, and statistical analysis in groups. If equipped with a computer, manufacturers should be added to the corresponding control system.
4. Output the result
The output results can be set arbitrarily: maximum force value, elongation, tensile strength, constant elongation, constant elongation force value, yield strength, elastic modulus, maximum test force 8 items. This is arguably the most comprehensive output of a microcomputer operation. The product OF A few foreign manufacturers, can output THESE 8 items commonly. Some domestic manufacturers can output 5-6 items, some manufacturers can only output the maximum value, average, minimum value three.
5, in the experimental project
Flexible packaging requires pulling machine multi-purpose, that is, on the basis of different fixtures, can do stretching, compression, bending, tearing, shearing, 180 degrees peeling, 90 degrees peeling test. There are some high-grade pulling machine on the market in addition to the above items, because of its high sensor accuracy (some reach 350,000th) can also test the coefficient of friction.
6, product mechanical main configuration
Transmission, lead screw transmission and rack transmission, the former is expensive, used for high precision, high test repeatability; The latter is cheap, used for low accuracy and low test repeatability. Lead screw, the tension precision measurement has a decisive role. General ball screw, trapezoidal lead screw, general lead screw. Among them, the precision of ball screw is the highest, but its performance can only be played by computer servo system operation, and the price of the whole set is also expensive. The general lead screw and trapezoidal lead screw can achieve the required precision of flexible packaging, that is, 0.1-1% accuracy. Transmission, gear transmission and chain transmission, the former is expensive, used for high precision; The latter is cheap and used for low precision. Sensor, the main cost is life, photoelectric induction is one of the more advanced technology, generally available more than 100,000 times.
Main Technical Parameter: Tensile Test Equipment:
| Max capacity | 5kg,10kg,25kg,50kg,100kg,250kg,500kg,1000kg,2000kg,5000kg(It is optional.) can be setting |
| Induction method : | Precision load cell (sensor) |
| Max. Load Capacity : | 5000kg |
| Force Resolution/Accuracy: | ± 0.5% |
| Accuracy class : | 0.5 |
| Resolution: | 1/1,000,000 |
| Test width: | 400mm(Standard specifications special specifications can be customized) |
| Test stroke : | Max.700 mm( included the fixture) |
| Stroke Resolution: | 0.01mm |
| Speed range: | 0.001-20inches/min |
| Reference Machine Dimension: | 800×530×1600mm (L*W*H) Support Customized |
| Power : | 1 phase 220V 50/60Hz |
| Packing | Standard Export plywood case |
| Force system | servo drives + Servo motor + precision ball screw drive |
| Control system | Mechanical transmission + TM2101 + Pulse Command and Control System control |
| Measurement and Control System | TM2101 and control system; master controller uses the most advanced 32-bit ARM processor in the 21st century, the processing speed of the Pentium-class common computer standards, compared to the traditional 8 yuan SCM control system overall performance greatly improved, faster operation, control accuracy higher |
Obtain data |
The key components are used America's most stable and ultra-precision 24 yuan AD, sampling rate of up to 2000 times / sec, can capture the power of instantaneous change process, the entire file, regardless of the resolution of up to 1,000,000 indexing |
| Displacement Control: | Displacement encoder count with four frequency technology So that the displacement of four times the resolution can up to 0.0005mm |
| Safety devices: | 1. overload, emergency stop device
2. the upper and lower travel limit devices
3. the test is completed automatic shutdown device
|
|
|
ASTM D903, ASTM E8 CNS11888, JIS K6854, PSTC7 ASTM D903,GB/T16491CNS-11888,JIS K6854, PSTC-7 ,ASTM E4,ASTM D828,ASTM D882,ASTM,D1938,ASTM D 412 ,ISO 8339ASTM D3330,ASTM F88,ASTM F904,ISO 37,JIS P8113,QB/T 2358,QB/T 1130 , ISO 527 ,ISO 178 and other standards. |
Industry and functional characteristics:
1, metal tensile testing machine: metal material tensile strength, small elongation, need to configure metal punctuation extensiometer.
2, rubber tensile testing machine: rubber or elastomer elongation is relatively large, need to be attached with a large punctuation elongation device, at the same time the fixture design to consider the characteristics of rubber, can not slip. Can be added with O - ring fixture, tire industry fixture, etc.
3, plastic tensile testing machine: plastic tensile strength is bigger than rubber, elongation is big or small, and often to test three point bending test.
4, textile tensile testing machine: textile industry needs to test fabric peeling, piercing, tearing, single yarn tensile test, fixture and software is special.
5, paper tensile testing machine: paper needs to test tensile strength, ring compressive strength, vertical pressure, flat pressure, side pressure, peel strength, etc., more fixtures.
6, leather tensile testing machine: leather needs to test tensile strength, tear strength, etc., the test item is relatively simple.
Four, according to the test materials: metal material fixture and non-metal material fixture; according to the test temperature: normal temperature fixture, high temperature fixture, low temperature fixture, high and low temperature fixture;according to use: stretching fixture, compression fixture, bending fixture, cutting fixture, stripping fixture, tearing fixture, sealing fixture, bending and bending fixture;according to the degree of automation: manual fixture, pneumatic fixture, electric fixture, hydraulic fixture.
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
