Product Details:
|
| Measuring Thickness Range: | 0.01~30mm | Minimum Display Value: | 0.01mm |
|---|---|---|---|
| Press Foot Area: | 25cm² And 100cm² | Press Foot Weight: | 5N; 2kpa |
| Sample Pressure: | 2kpa, 20kpa, 200kpa | Reference Plate: | 200mm×160mm |
| Leverage Ratio: | 1:61:12 | Product Size: | 740×400×700mm |
| High Light: | Geosynthetic Material Thickness Tester,30mm Geofabric Thickness Tester |
||

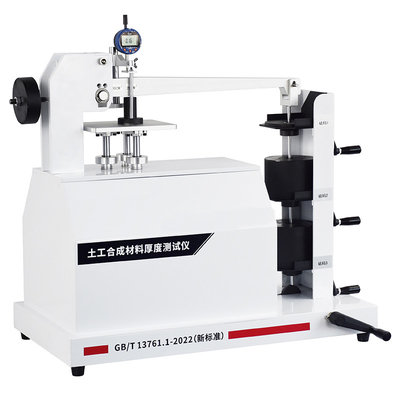

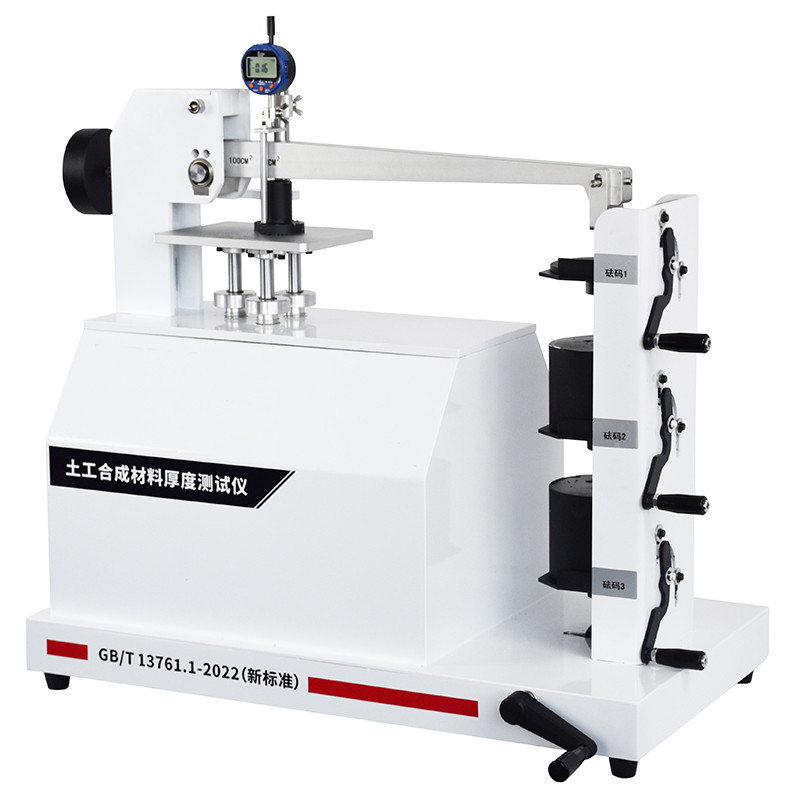

Geosynthetic Material Thickness Tester/Geofabric Thickness Tester Model GSA-812T
Product introduction
Suitable for geosynthetic materials and related products, under different pressure and time determination of thickness.
Implementation standard
JTG E50-2006 Test Code for Highway Geosynthetic Materials
Iso 9863-90 - Determination of geotextile Thickness
GB/T 1371.1-2022 "Geosynthetic materials - Determination of thickness under specified pressure - Part 1: Method for determination of thickness of single layer products"
Product characteristics
1, can do four kinds of side head (25cm², 100cm², φ10mm, φ2mm) different loading force thickness test

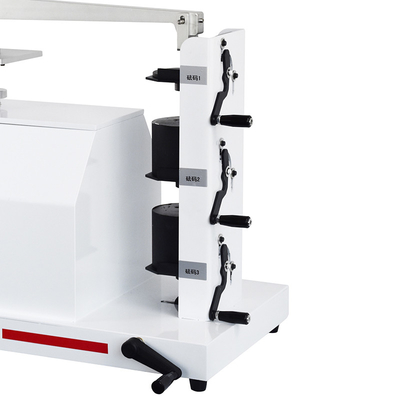

2. Two pressure feet, three weights and a scale can combine 6 different weights to press the sample
3, the weight does not need to be manually moved, only hand lifting device, easily distribute the weight of the weight
4, the benchmark plate can rise and fall, suitable for testing samples of different thickness
5, accuracy level of 0.5, in line with the standard
6, press foot fulcrum with high hardness tungsten steel, durable wear and greatly improve the service life and accuracy
technical specification
| Measuring thickness range | 0.01~30mm |
| Minimum display value | 0.01mm |
| Press foot area | 25cm² and 100cm² |
| Press foot weight | 5N; 2kpa |
| Sample pressure | 2kpa, 20kpa, 200kpa |
| Reference plate | 200mm×160mm |
| Leverage ratio | 1:61:12 |
| Product size | 740×400×700mm |
1. Are your company a trading one or a factory?
Factory ,13years focusing on test instruments field,3 years exporting experience.Our factory is in Dongguan, Guangdong, China
2. After an order is placed, when to deliver?
Usually about 15 working days, if we have finished products, we can arrange delivery within 3 working days.
Please note that our production lead time depends on the specific project and the number of projects.
3. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sales service team will provide comprehensive technical support to help customers solve problems encountered when using our products, and promptly handle customer problems and complaints.
4. What about the services and product' quality?
Service: ,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
