Product Details:
|
| Brand: | GSKA | Model: | GSA-487H |
|---|---|---|---|
| Maximum Inside Diameter Of Drain Pipe: | ≤Φ2000mm Customizable Maximum Size 3m (3000mm) | Gauge Index Value: | 0.005 MPa |
| Maximum Pressure: | 0.16 MPa | Water Adding Mode: | Water Injection Inside The Pump |
| Fastening Method: | Bolt Fastening | Pressure Mode: | Electric |
| High Light: | Concrete Drainage Pipe Pressure Testing Machine,0.16MPa Pressure Testing Machine |
||

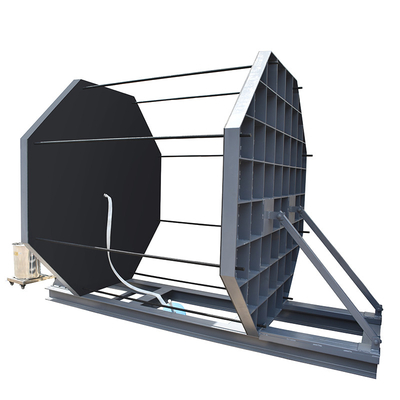

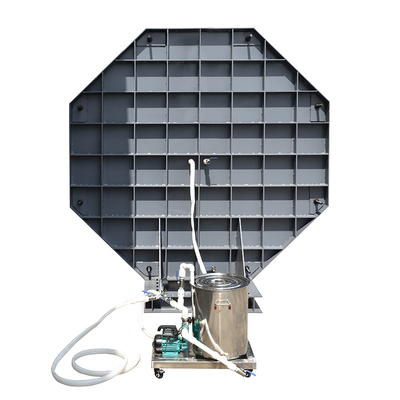

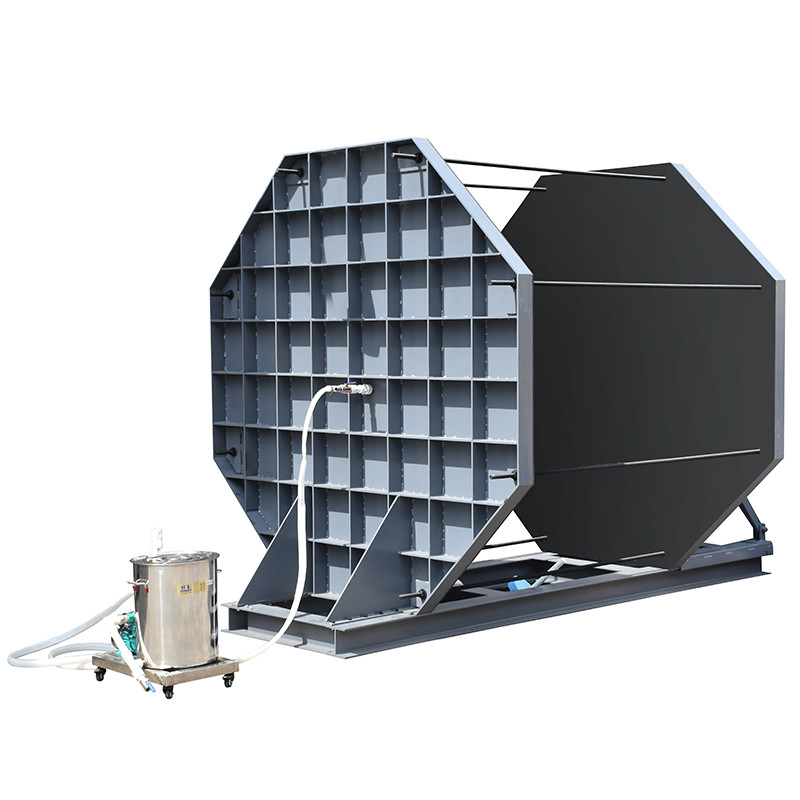

Concrete Drainage Pipe Pressure Testing Machine Model GSA-487H Pressure 0.16MPa
Product overview
Concrete drainage pipe pressure testing machine is combined with the national standard GB/T 16752-2017 "concrete and reinforced concrete drainage pipe test method", GB/T 11836-2009 "concrete and reinforced concrete drainage pipe" provisions and user requirements and design. The tester is suitable for various types of concrete and reinforced concrete drainage pipes produced by various processes.
Implementation standard
GB/T 16752-2017 "Concrete and reinforced concrete drainage pipe test method"
GB/T 11836-2009 "Concrete and reinforced concrete drainage pipe"
technical specifications:
| name | parameter |
| Maximum inside diameter of drain pipe | ≤Φ2000mm Customizable maximum size 3m (3000mm) |
| Gauge index value | 0.005 MPa |
| Maximum pressure | 0.16 MPa |
| Water adding mode | Water injection inside the pump |
| Fastening method | Bolt fastening |
| Pressure mode | electric |
| Test force display mode | Computer automatic control, real-time display of the current holding time, speed, force value, and other parameters. |
1. Are your company a trading one or a factory?
Factory ,13years focusing on test instruments field,3 years exporting experience.Our factory is in Dongguan, Guangdong, China
2. After an order is placed, when to deliver?
Usually about 15 working days, if we have finished products, we can arrange delivery within 3 working days.
Please note that our production lead time depends on the specific project and the number of projects.
3. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sales service team will provide comprehensive technical support to help customers solve problems encountered when using our products, and promptly handle customer problems and complaints.
4. What about the services and product' quality?
Service: ,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
