Product Details:
|
| Warranty: | 2 Year | Place Of Origin: | Donggaun,china |
|---|---|---|---|
| Max Temperature: | 1200℃ | Power: | 10kw |
| Classification: | Laboratory Heating Equipments | Chamber Size: | 300*300*400mm(W*H*D) |
| Volume: | 36L | Temperature Control: | Save 50 Pcs Programs |
| High Light: | Laboratory Muffle Furnace,Vacuum Drying Oven |
||

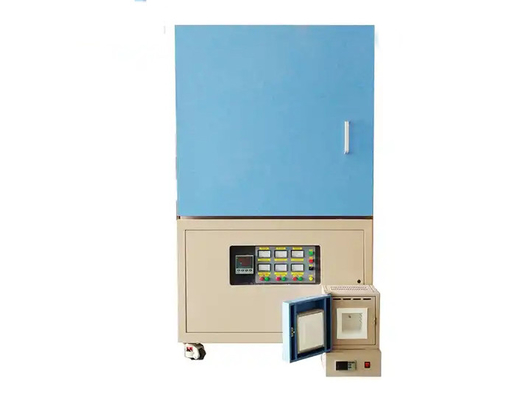

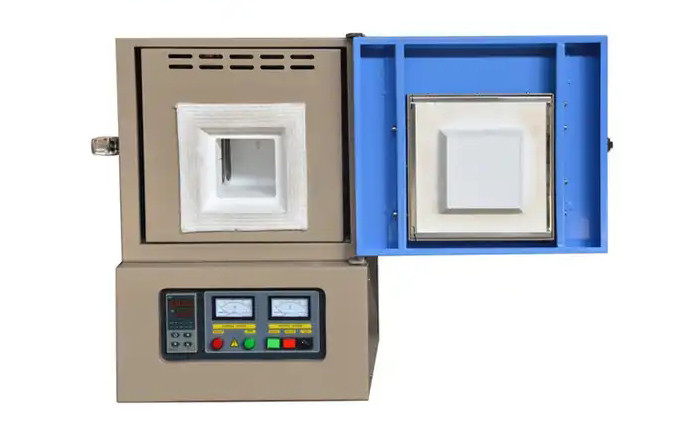

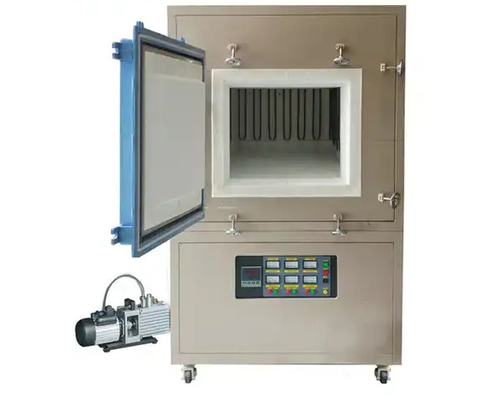

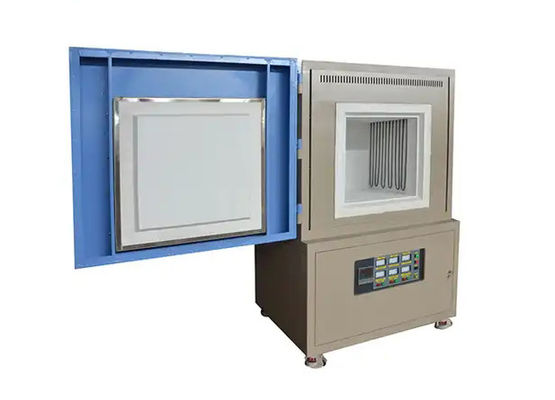

Laboratory Heating Equipment High Temperature Nabertherm Muffle Furnace 1200 ℃
product presentation:
These models stand out for their excellent workmanship, advanced and attractive design, and high level of reliability. Heating elements on support tubes radiating freely into the furnace chamber provide for particularly short heating times and a maximum temperature of 1200 °C. These muffle furnaces are a good alternative to the familiar series when higher application temperatures are needed.
Tmax 1200 °C
Heating from two sides
Heating elements on support tubes ensure free heat radiation and a long service life
Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
Adjustable air inlet integrated in door
Exhaust air outlet in rear wall of furnace
Controller B510 (5 programs with each 4 segments)
Solid state relays provide for lownoise operation
Defined application within the constraints of the operating instructions
NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
Chimney, chimney with fan or catalytic converter
Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
Protective gas connection to purge with non-flammable protective or reaction gases (not available in combination with chimney, chimney with fan or catalytic converter), not gas tight
Manual or automatic gas supply system
Process control and documentation via VCD software package for monitoring, documentation and control
echnical parameters
| Model | Max.temp.(℃) | Champer size (W*H*D) mm | Volum(L) | Power(KW) | Phase | Thermocouple |
| GSA-N47 | 1200℃ | 100*100*100 | 1 | 0.8 | 1 | K type |
| GSA-N48 | 120*120*130 | 2 | 1.2 | |||
| GSA-N49 | 150*150*150 | 3 | 2.5 | |||
| GSA-N50 | 150*150*200 | 5 | 3 | |||
| GSA-N51 | 200*200*200 | 8 | 5 | |||
| GSA-N52 | 200*200*300 | 12 | 6 | |||
| GSA-N53 | 300*300*300 | 27 | 8 | |||
| GSA-N54 | 300*300*400 | 36 | 10 | 3 | ||
| GSA-N55 | 400*400*400 | 64 | 16 | |||
| GSA-N56 | 500*500*500 | 125 | 25 | |||
| GSA-N57 | 600*600*600 | 216 | 36 | |||
| GSA-N58 | 800*800*800 | 512 | 64 | |||
| GSA-N59 | 900*900*900 | 729 | 80 | |||
| GSA-N60 | 1000*1000*1000 | 1000 |
100
|
Q1. How about after-sales service ?
A1. We have professional pre-sales and after-sales departments and can respond you within 8hrs
Q2. How about the quality guarantee period?
A2: 2 years, exclude irrationally operating and consumable parts.
Q3. How about the quality?
A3: CE certification available and twice test before shipping.
Q4. How about the delivery time?
A4: Shipping within 3 days for regular model . 35 days for customized model.
Q5. Are you a manufacturer or a trading company?
A5: We are a factory with 10 years experience in this field.
