Product Details:
|
Model Number:: | GSA -35K | Chamber Size: | 300 X 300 X300 Mm (27Liter) |
---|---|---|---|
Working Voltage: | AC 220V Single Phase 60/50 Hz | Temperature Control: | 50 Steps Programmable And PID Automatic Control |
Temperature Accuracy: | +/- 1.C | Temperature: | 1200.C |
Max. Power: | 8 KW | Heating Rate: | 0~30.C / Min (suggestion: < 20.C) |
High Light: | Laboratory Muffle Furnace,Vacuum Drying Oven |

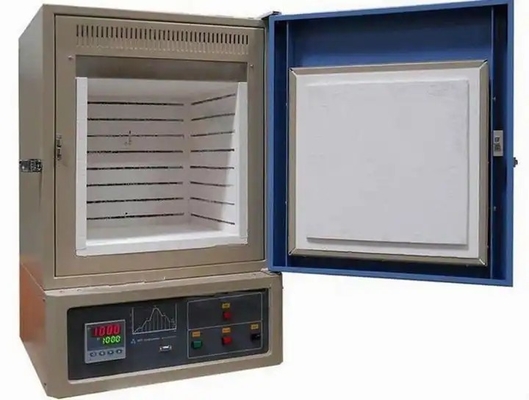

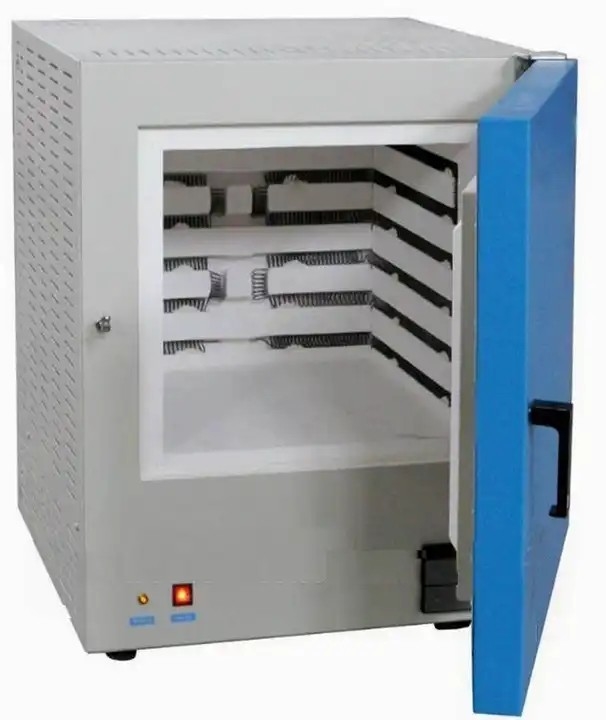

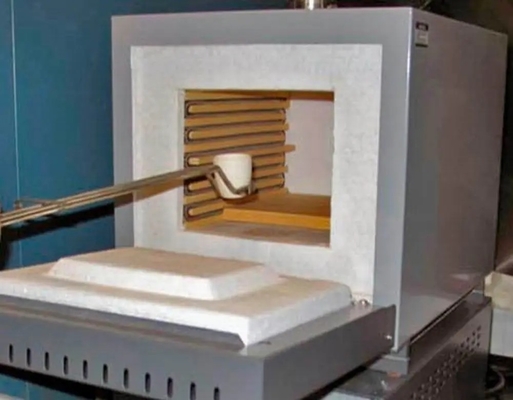

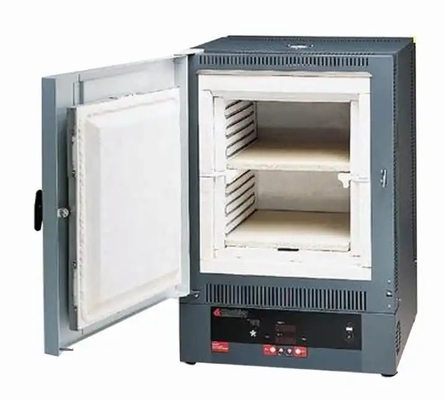

Laboratory Heating Equipment Muffle Furnace For Industrial Ceramic Sintering
GSA -35K is the most cost effective high temperature muffle furnace. The furnace consists of high quality alumina fiber brick and MoSi2 heating elements with chamber of 10"x10"x12", and temperature is controlled by high precision digital controller with accuracy +/-1.C and 30 segments programmable up to 1200.C .
Scope of application
(1) Hot processing, industrial workpiece processing, cement, building materials industry, hot processing or processing of small workpiece.
(2) Pharmaceutical industry: used for drug testing, medical sample pretreatment, etc.
(3) Analytical chemical industry: as a sample treatment in water quality analysis, environmental analysis and other fields. It can also be used for oil and its analysis.
(4) Coal quality analysis: used for the determination of moisture, ash, volatile matter, ash melting point analysis, ash composition analysis, element analysis. It can also be used as a universal ashing furnace. Scope of application
Main Specifications:
Inside Chamber Size | 300 x 300 x300 mm (27 Liter) |
Standard Working Temperature | 1100.C ( continuous ) |
Maximum Working Temperature | 1200.C ( < 3 hrs) |
Temperature Control | 30steps programmable and PID automatic control |
Heating Rate | 0~10.C / min (suggestion: < 10.C) |
Temperature Accuracy | +/- 1.C |
Heating Element | MoSi2 heating elements |
Working Voltage | AC 220V Single Phase 60/50 Hz (or according to your requirement) |
Max. Power | 8 KW |
1: Are you a factory?
Yes. We are China leading laboratory and industrial heating treatment furnace manufacturer, which integrates design, manufacture and sales for nearly 20 years.
2: Do you have customization or OEM service?
We can customize furnaces as product, work piece size, and temperature requirement. Meanwhile, we offer OEM service under the strict industrial standard.
3: What is the delivery time?
Normally within 15 working days after receiving the advanced payment or depends on order quantity.
4: How can you guarantee the production quality?
Firstly, we are ISO9001:2008 and CE certified factory, all the processes are strictly following the standard of the metallurgy process; secondly. We have QC department who perform strictly in each producing process including package.
5: How long is your furnace warranty period?
One year(expect thermocouple and heating element), lifetime support
6: What payment terms does SAFTHERM support?
T/T, L/C and so on.
