Product Details:
|
| Warranty: | 1year | Place Of Origin: | Donggaun,china |
|---|---|---|---|
| Chamber Size: | 200x120x80mm | Temperature: | 1000C |
| Heating Power: | 2.5KW | Chamber Volume: | 2L |
| Temperature Rise: | 15C/min | Power Supply: | 220/380V 50HZ |
| High Light: | Laboratory Muffle Furnace,Vacuum Drying Oven |
||

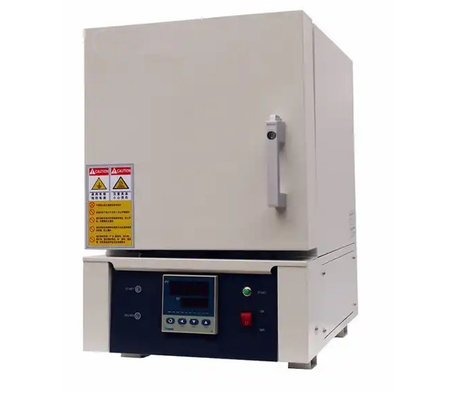

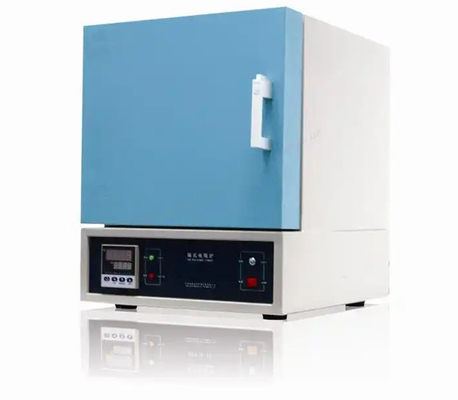

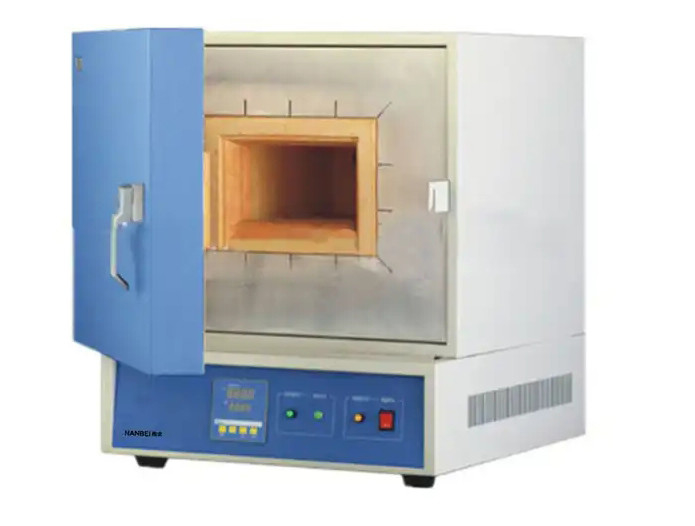

1000℃ Thermolyne High Temperature Resistance Muffle Furnace Chamber Volume 2L
Box-type resistance furnace which is also know as muffle furnace; it's the basic heating equipment for laboratory use. Its wide application areas covering industrial & mining enterprises, scientific research institutes, universities, laboratories and other experiments purpose. The resistance furnace is the necessary equipment for sintering, melting and heat treatment of the material and volatile experiments.
The series of electric resistance furnace adopts "alumina hollow ball" (a-Al2O3 micro crystal) as chamber of furnace material which is with specific characters including high temperature resistance, economy and wide range of application; it’s currently the mainstream materials of similar products.
Features
1.The use of modern integrated structure design, elegant, easy to operate
2.The door structure patented technology (patent number: ZL 2007 2 0028142.4), all-round sealed door. Make sure that the furnace temperature does not leak, to improve the working environment, to extend furnace life, save energy
3.Selection of domestic steel heating element wreath furnace wire, high cost, good stability, wide range of applications
4.The ceramic fiber insulation materials of high quality, good cotton, light weight, thermal insulation effect
5.The choice of the digital display temperature control instrumentation, intelligent PID temperature controller. It has a high precision temperature control, self-tuning, self-diagnostic functions
6.With the door open power protection system that can effectively protect the safety of operating personnel
7.After having restore power supply line anti-resistance furnace heating continued function to avoid unattended calls heating caused by other accidents
8.A box of high quality cold-rolled steel sheet, pickling phosphide, refining, surface electrostatic spray
9.equipped with a fan, which can effectively protect prolong furnace life
Specification
| Name of Section | Model |
| GSA41-KL | |
| Internal Size / Holding Capacity |
200mm*120mm*80mm(2L)
|
| Design temperature | 1000℃ |
| Operating temperature | 900℃ |
| Temperature accuracy | ±1℃ |
| Heating rate | ≤15℃/min |
| Temperature control device | Digital control / intelligent PID temperature control |
| Even sub-degree furnace | K |
| Operating Voltage | AC220V/50Hz |
| Heating power | 2.5KW |
| Dimensions | 580mm*400mm*620mm |
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 15-30days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
