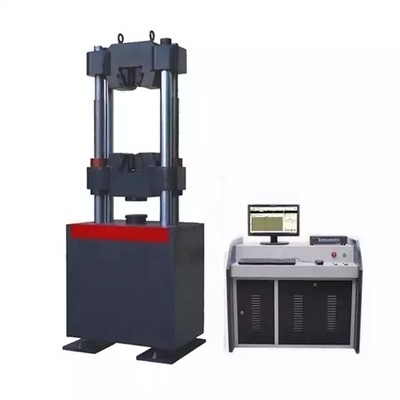

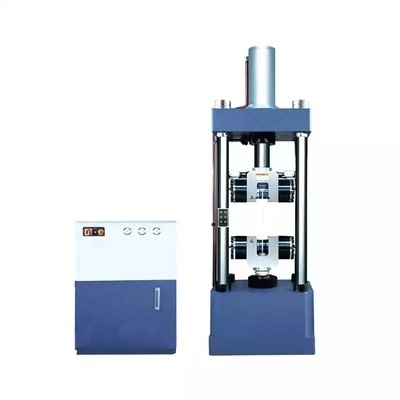

Electric Fixture High Temperature Tensile Testing Machine 5KN 10KN
Measuring principle:
1, tensile testing machine force value measurement is through the force sensor, amplifier and data disposal system to complete the measurement. It is known from the data mechanics that under the premise of small deformation, the strain ε at a certain point of an elastic element is proportional to the force on the elastic element, and also proportional to the elastic component. Taking the sensor of S-type testing machine as an example, when the sensor is subjected to the effect of tension P, the strain gauge is pasted on the surface of the elastic element, and since the strain of the elastic element is in direct proportion to the size of the external force P, the strain gauge is connected to the measuring circuit to measure the output voltage and then the size of the force.
2, the deformation measurement through the deformation measurement installation to measure, it is used to measure the deformation of the sample in the process of the experiment. The installation has two collets, which are connected to a photoelectric encoder mounted on the top of the measuring installation through a series of biographies. When the interval between the two collets switches, the shaft of the photoelectric encoder is driven to twist, and the photoelectric encoder will have a pulse signal output. Then the signal is processed by the processor and the deformation of the sample can be obtained.
3. The measurement of beam displacement is roughly the same as the deformation measurement, which is to obtain the displacement of the beam by measuring the output pulse number of the photoelectric encoder.
Main Technical Parameter: Tensile Test Equipment:
| Max capacity | 5kg,10kg,25kg,50kg,100kg,250kg,500kg,1000kg,2000kg,5000kg(It is optional.) can be setting |
| Induction method : | Precision load cell (sensor) |
| Max. Load Capacity : | 5000kg |
| Force Resolution/Accuracy: | ± 0.5% |
| Accuracy class : | 0.5 |
| Resolution: | 1/1,000,000 |
| Test width: | 400mm(Standard specifications special specifications can be customized) |
| Test stroke : | Max.700 mm( included the fixture) |
| Stroke Resolution: | 0.01mm |
| Speed range: | 0.001-20inches/min |
| Reference Machine Dimension: | 800×530×1600mm (L*W*H) Support Customized |
| Power : | 1 phase 220V 50/60Hz |
| Packing | Standard Export plywood case |
| Force system | servo drives + Servo motor + precision ball screw drive |
| Control system | Mechanical transmission + TM2101 + Pulse Command and Control System control |
| Measurement and Control System | TM2101 and control system; master controller uses the most advanced 32-bit ARM processor in the 21st century, the processing speed of the Pentium-class common computer standards, compared to the traditional 8 yuan SCM control system overall performance greatly improved, faster operation, control accuracy higher |
Obtain data |
The key components are used America's most stable and ultra-precision 24 yuan AD, sampling rate of up to 2000 times / sec, can capture the power of instantaneous change process, the entire file, regardless of the resolution of up to 1,000,000 indexing |
| Displacement Control: | Displacement encoder count with four frequency technology So that the displacement of four times the resolution can up to 0.0005mm |
| Safety devices: | 1. overload, emergency stop device
2. the upper and lower travel limit devices
3. the test is completed automatic shutdown device
|
|
|
ASTM D903, ASTM E8 CNS11888, JIS K6854, PSTC7 ASTM D903,GB/T16491CNS-11888,JIS K6854, PSTC-7 ,ASTM E4,ASTM D828,ASTM D882,ASTM,D1938,ASTM D 412 ,ISO 8339ASTM D3330,ASTM F88,ASTM F904,ISO 37,JIS P8113,QB/T 2358,QB/T 1130 , ISO 527 ,ISO 178 and other standards. |
Industry and functional characteristics:
1, metal tensile testing machine: metal material tensile strength, small elongation, need to configure metal punctuation extensiometer.
2, rubber tensile testing machine: rubber or elastomer elongation is relatively large, need to be attached with a large punctuation elongation device, at the same time the fixture design to consider the characteristics of rubber, can not slip. Can be added with O - ring fixture, tire industry fixture, etc.
3, plastic tensile testing machine: plastic tensile strength is bigger than rubber, elongation is big or small, and often to test three point bending test.
4, textile tensile testing machine: textile industry needs to test fabric peeling, piercing, tearing, single yarn tensile test, fixture and software is special.
5, paper tensile testing machine: paper needs to test tensile strength, ring compressive strength, vertical pressure, flat pressure, side pressure, peel strength, etc., more fixtures.
6, leather tensile testing machine: leather needs to test tensile strength, tear strength, etc., the test item is relatively simple.
Four, according to the test materials: metal material fixture and non-metal material fixture; according to the test temperature: normal temperature fixture, high temperature fixture, low temperature fixture, high and low temperature fixture;according to use: stretching fixture, compression fixture, bending fixture, cutting fixture, stripping fixture, tearing fixture, sealing fixture, bending and bending fixture;according to the degree of automation: manual fixture, pneumatic fixture, electric fixture, hydraulic fixture.
