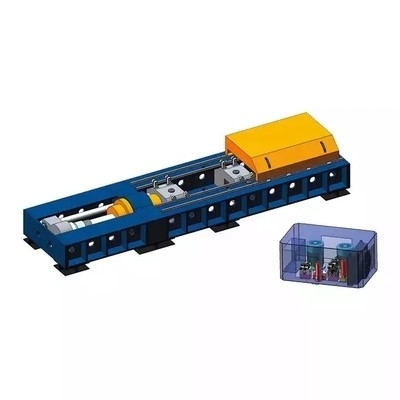

OEM ODM Horizontal Tensile Universal Testing Machine 3000KN 5000KN

OEM ODM Horizontal Tensile Universal Testing Machine 3000KN 5000KN
OEM ODM Horizontal Tensile Universal Testing Machine 3000KN 5000KN OEM ODM Horizontal Tensile Universal Testing Machine 3000KN 5000KN

Large Image :  OEM ODM Horizontal Tensile Universal Testing Machine 3000KN 5000KN

Product Details:
Place of Origin: Guangdong,China
Brand Name: GSKA
Certification: CE
Model Number: Universal Tensile Testing Machine
Payment & Shipping Terms:
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time: 15-20working days after received deposit
Payment Terms: L/C, T/T
Supply Ability: 150 Set / Sets per Month

OEM ODM Horizontal Tensile Universal Testing Machine 3000KN 5000KN

Description
Brand Name: GSKA Warranty: 1 Year
Stress Speed: 1-45 Mpa/s Quality Certification: CE
Resolution Of Testing Force: 1/200000 Range Of Testing Force: 1%-100%
Accuracy Of Testing Force: ±1% Customized Support: OEM, ODM
High Light:

Tensile Test Equipment

,

Tensile Strength Tester

Horizontal Tensile Test Using Universal Testing Machine 3000KN 5000KN



performance feature:



1 Host: the whole frame adopts steel plate welding frame structure, through the front and rear collet seat, cylinder and front beam composition system main structure; The rear collet seat is manually pushed to adjust the test space. The appearance of the main engine is designed on the basis of meeting the technical requirements of horizontal test equipment. The shape is simple and lively, the proportion is coordinated, and the color collocation is reasonable, so that the stability, safety and beauty of the test equipment are perfectly unified.



2 Oil source system (pump station) : constant pressure pump group: domestic well-known brand motor, imported low noise high pressure gear pump. The motor is installed with vibration damping device (choose vibration damping pad) to reduce vibration and noise; Tank: fully enclosed standard tank, volume 80 litres, and the oil temperature, oil level meter, precision pressure filter, air filter, etc. With the oil temperature, liquid level, oil resistance, protection and loading 등 instructions according to the requirements of the oil used with corresponding high precision oil filter device. With temperature over limit, oil filter blockage, low liquid level automatic shutdown or alarm function; Piping system, the hydraulic line of the master cylinder cutter Li bucket actuator is connected with a high pressure hose.



Technical Parameters:

MODEL WAL-3000
Maximum load 3000kN
Structure Single rod double-acting cylinder frame structure
Drive control mode Computer controlled electro-hydraulic servo control
Test type Tensile strength test / Loading hold test
Overload protection 105% overload protection
Noise of the whole machine no more than 70dB
Accuracy of load indication better than ±1% of indicated value
Load resolution

500000 yards, and the whole resolution

remains unchanged

Load control accuracy Class 1.0 (class 0.5 is optional)
Force value measuring range 2%~100%F·S (the whole process is not divided into files)
Stress control accuracy better than ±1% of the indicated value
Accuracy of displacement indication better than ±0.5% of indication
Displacement resolution 0.001mm
Displacement control accuracy (speed) better than ±0.5% of the indicated value
Piston moving speed range 0-100mm/min full load stepless speed regulation
Piston stroke 500mm-1500mm
Maximum Tension space 4000mm-30000mm
Tension space adjustment interval 500mm
Tension space width (inner clear width) 600mm
Height of the center of the Tension space 600mm
Total motor power 4.0 KW

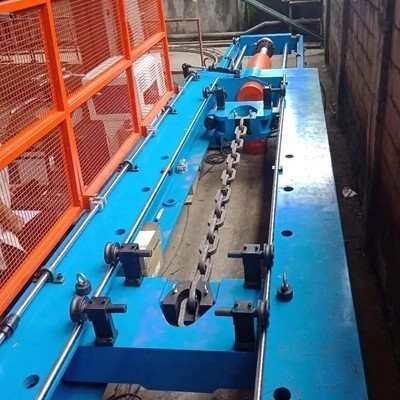

OEM ODM Horizontal Tensile Universal Testing Machine 3000KN 5000KN 0OEM ODM Horizontal Tensile Universal Testing Machine 3000KN 5000KN 1



Customer Support Services:


1. Installation


2. Training (Training customer employees)


3. Calibration


4. Preventative maintenance


5. Replacement parts


6. Assistance via phone or internet


7. On-site diagnosis and repair/online diagnosis and repair

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.
