A Vacuum Furnace Used In A Factory For Sintering Metal Parts At High Temperature

A Vacuum Furnace Used In A Factory For Sintering Metal Parts At High Temperature
A Vacuum Furnace Used In A Factory For Sintering Metal Parts At High Temperature A Vacuum Furnace Used In A Factory For Sintering Metal Parts At High Temperature A Vacuum Furnace Used In A Factory For Sintering Metal Parts At High Temperature

Large Image :  A Vacuum Furnace Used In A Factory For Sintering Metal Parts At High Temperature

Product Details:
Place of Origin: Donggaun,china
Brand Name: GSKA
Certification: CE
Model Number: GSA54M
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiate
Packaging Details: The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time: 15-20working days after received deposit
Payment Terms: L/C, T/T
Supply Ability: 150 Set / Sets per Month

A Vacuum Furnace Used In A Factory For Sintering Metal Parts At High Temperature

Description
Place Of Origin: Donggaun,china Voltage: 220V/380V, 110V Or 220V Or 380V
Weight (T): 0.5 T Warranty: 1 Year
Max Vacuum: 0.007Pa Heating Rate: Max 20C/min
Max Temperature: 1200C - 1800C Heating Element: Wires / Sic / Mosi2 / Molybdenum Foil
High Light:

Vacuum Brazing Furnace

,

Box Type Furnace

A Vacuum Furnace Used In A Factory For Sintering Metal Parts At High Temperature

product presentation:

Vacuum furnace is in the specific space of the furnace cavity using the vacuum system (vacuum pump, vacuum measuring device, vacuum valve and other components carefully assembled) to discharge part of the material in the furnace cavity, so that the pressure in the furnace cavity is less than a standard atmospheric pressure, the space in the furnace cavity to achieve a vacuum state, this is the vacuum furnace.

1. Max temperature: 1200C Working temperature: 1100C
2. 220V or 380V single phase .

3. Max vacuum: 0.007 Pa (Molecular pump)

4. Excellent temperature uniformity.

5. 30 Segment Easy Use PID Programmable Temperature Controller, allow to control heating rates, dwells ( time holds) and cooling rates.

6. One Year Limited Warranty on All Electronic Parts.

7. Quality heating elements ensure the longest heating element life, best heat radiation properties and minimum distortion of heating elements at high temperature.

8. All models use Ceramic fiber board lining to ensure energy efficiency
9. Safety feature includes a safety interlock system to shut off power when
furnace door open

specification:

Chamber size
200x200x200mm (Width * Height * Depth) (8 Liter)
Max. temperature
1200 C (<2hour)
Working temperature
1100 C
Temperature controlling
● PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor.
● 30 programmable segments for precise control of heating rate, cooling rate and dwell time.
● Built in PID Auto-Tune function with overheating & broken thermocouple broken protection.
● Over temperature protection and alarm allows for operation without attendant.
Temperature accuracy
±1C
Temperature Uniformity
±5C over 120mm @ 1100C
±3C over 80mm @ 1100C
Heating rate
0-20C /min
Thermocouple
K type with 99.7% purity Alumina tube
Heating element
Quality heating wire
Vacuum
0.007 Pa (Molecular pump)
Furnace Chamber
Two layers of ceramic fiber insulation materials
● First layer: 1430°C ceramic fiber board.
● Second layer: 1260°C ceramic fiber board.
Furnace structure
Double layer steel casing with dual cooling fan, surface temperature below 60C
Furnace door
● Front-side open
● Power cutting off when furnace door open
Working voltage
220V, 50HZ
Rated power
7KW
Stander chamber size (mm)
100x100x100 120x120x130 150x150x150 150x150x200
200x200x200 200x200x300 250x250x300 300x300x300
300x300x400 350x350x500 400x400x400 450x450x450
500x500x500 600x600x600 800x800x800 900x900x900

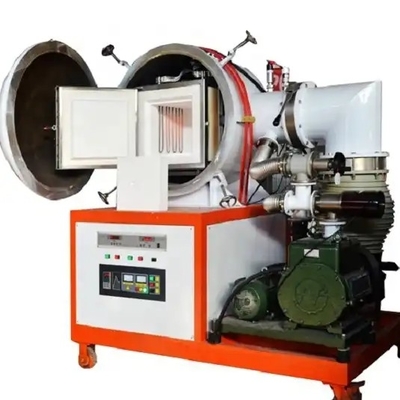

A Vacuum Furnace Used In A Factory For Sintering Metal Parts At High Temperature 0

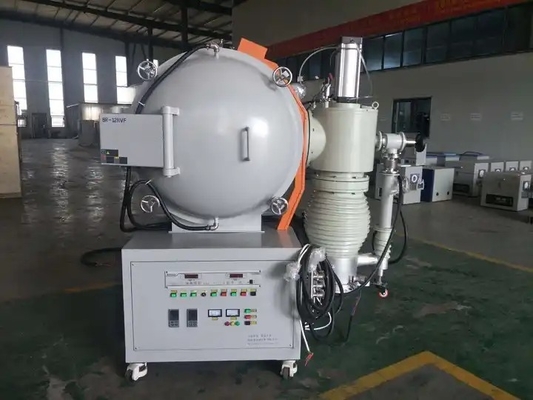

A Vacuum Furnace Used In A Factory For Sintering Metal Parts At High Temperature 1

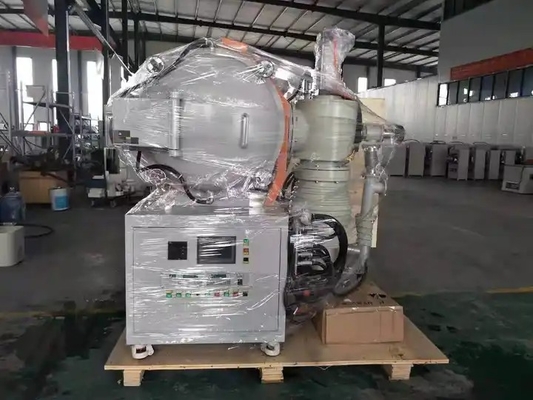

A Vacuum Furnace Used In A Factory For Sintering Metal Parts At High Temperature 2



Q:What is the MOQ ?

A:1 set for our standard furnace

Q:Can I ask for special designs?

A:Sure! And it's Free!

Q:Can I get a lower price if I order large quantities?

A:Yes, cheaper prices with more bigger size orders.

Q:Can I send the sample to you to test the furnace before I buy it ?

A:Yes, and the testing is Free!

Q:When you ship my order?

A:Normally 30 days after receiving your payment or based on order qty and production schedule.

Q:How about the quality guarantee period?

A:One year!

Q:How can you guarantee the production quality ?

A:We have more than 10years experience in this field. We have strictly quality control system in our production process. We have 4 times inspection for each finished product before package.
