Product Details:
|
| Voltage: | 220V/380V | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Weight (T): | 0.5 T | Warranty: | 1 Year |
| Max Temperature: | 1200℃,1400℃,1700℃ | Temperature Accuracy: | ±1℃ |
| Heating Rate: | 0~30 Degree/Min | Temperature Controller: | 30-50 Segments Programmable PID Auto Control |
| High Light: | Vacuum Brazing Furnace,Box Type Furnace |
||
product description:

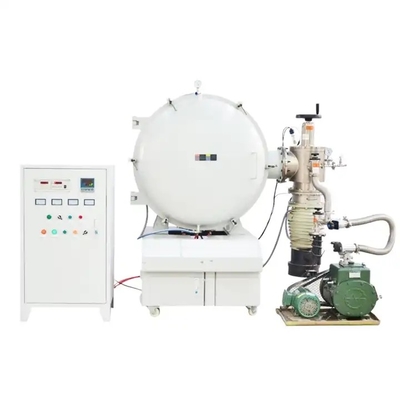

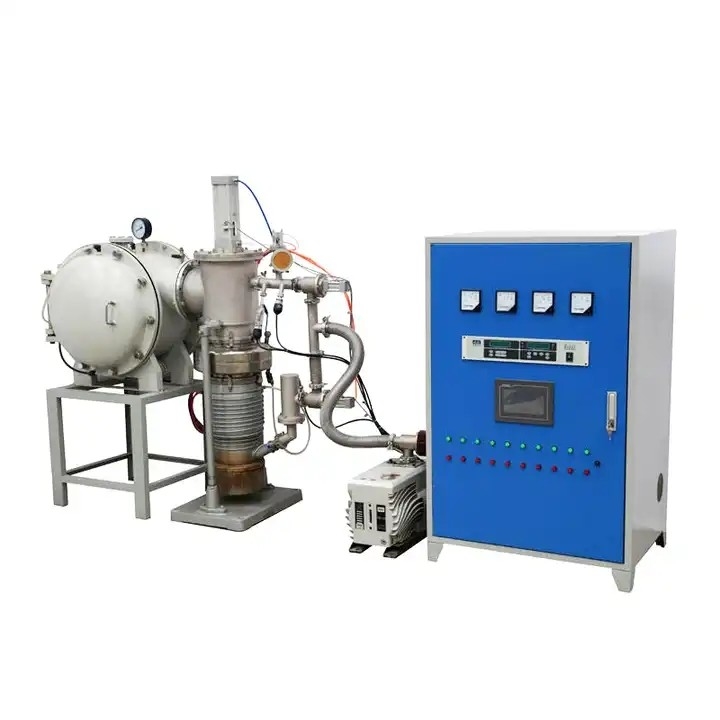

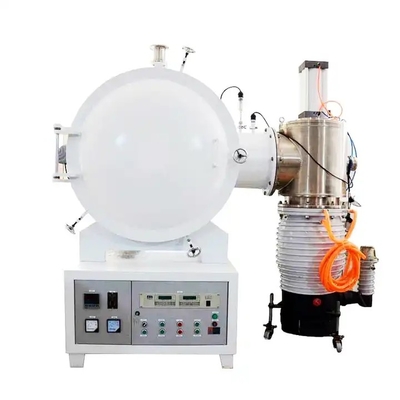

vacuum furnace is widely used for heating treatment of metal materials in low vacuum, recursive, protective atmosphere, also can be used for heating treatment of special materials, such as carbonization process of carbon products. The furnace chamber is ceramic fiber with excellent thermal insulation; Vacuum Reservoir with water cooling system.
An industrial furnace heated by an electric heating element in a near vacuum. Equipment for heating in a vacuum environment. The high vacuum pump system is connected by pipes in a metal clad or quartz glass-enclosed furnace. Furnace vacuum can reach 133x(10-10)Pa. The heating system in the furnace can be heated directly by electric resistance wire (such as tungsten wire) or high frequency induction heating. The highest temperature can reach about 3000℃. Mainly used in ceramic firing, vacuum smelting, electric vacuum parts degassing, annealing, metal parts brazing, and ceramic - metal sealing.
|
Model
|
GS-62R
|
GS-63R
|
GS-64R
|
|
Max. Temperature
|
1200°C
|
1400°C
|
1600°C
|
|
Working Temperature
|
1100°C
|
1300°C
|
1500°C
|
|
Heating Element
|
Fe-Cr-Al-Mo wire
|
SiC heater
|
MoSi2 heater
|
|
Heating Rate
|
≤20°C/min
|
≤15°C/min
|
≤15°C/min
|
|
Refractory Material
|
1430 type alumina
ceramic fiber |
1600 type alumina
ceramic fiber |
1800 type alumina
ceramic fiber |
|
Temperature Control
|
30 segments programmable,PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Control
Rectifier). |
||
|
Rated Power
|
8KW
|
||
|
Temperature Accuracy
|
±1°C
|
||
|
Max. Vacuum
|
10-3 Pa
|
||
|
Chamber Size
|
Customizable
|
||
FQA:
1. Are you Manufacturer?Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional and biggest Manufacturer like Environmental Chambers, Industrial Ovens, Universal Tensile Testers, UV Aging Test Chambers, Industrial Muffle Furnaces, Paper Packing Testers, Plastic Rubber Testers, Adhesive testers and other testing Equipment.. in China .Every machines purchasing from our factory has 12 months warranty after shipment. Generally, we offer 12 months for the FREE maintenance. while considering of sea transportation,we can extend 2 months for our customers.
Moreover, If your machine doesn’t work, you can send us an E-mail or call us we will try our best to find the problem through our conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What’s the delivery term?
For our standard machine which means normal machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines) If you are in urgent need, we will making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
