Product Details:
|
Place Of Origin: | Made In China | Voltage: | 220v / 380v, 110V Or 220V |
---|---|---|---|
Max Temperature: | 1700C | Power: | 7KW, 7kw |
Heating Rate: | Max 15C/min | Working Temperature: | 1600C |
Vacuum: | 10 Pa | Certification: | CE Certificate |
High Light: | Vacuum Brazing Furnace,Box Type Furnace |
product description:

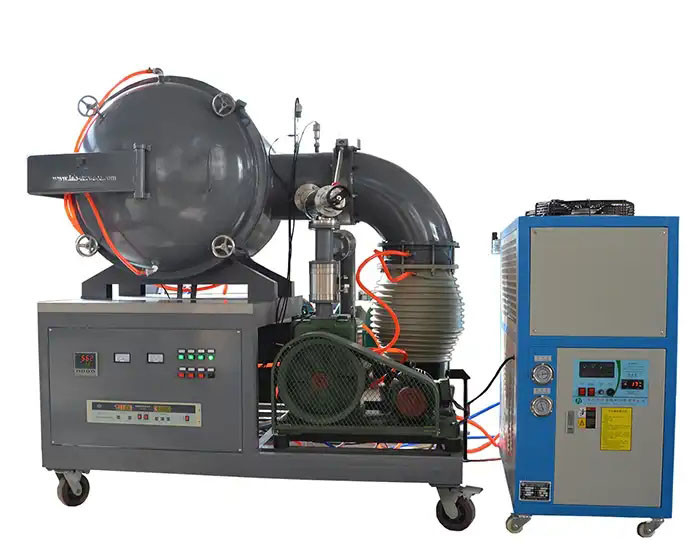

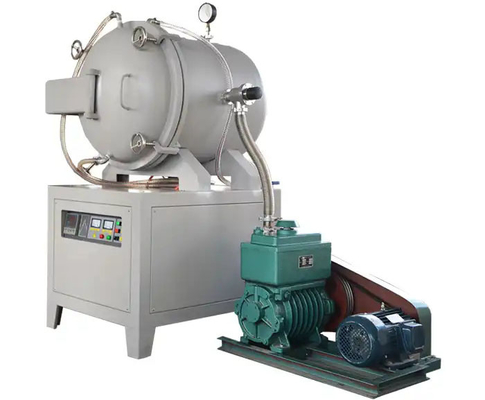

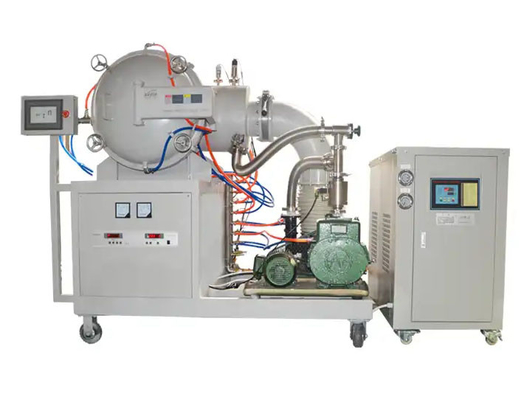

Vacuum furnace is generally composed of main engine, furnace chamber, electric heating device, sealed furnace shell, vacuum system, power supply system, temperature control system and transport vehicle outside the furnace. The sealing furnace shell shall be welded with carbon steel or stainless steel, and the joint surface of the detachable parts shall be sealed with vacuum sealing material. In order to prevent the deformation of the furnace shell after heating and the deterioration of the sealing material, the furnace shell is generally cooled by water or air cooling. The furnace is located in a sealed hearth. Depending on the purpose of the furnace, the furnace is equipped with different types of heating elements, such as resistors, induction coils, electrodes and electron guns. The furnace of the vacuum furnace for melting metal is equipped with a crucible, and some are equipped with automatic pouring device and manipulator for loading and unloading materials. The vacuum system is mainly composed of vacuum pump, vacuum valve and vacuum gauge.
Chamber dimension | Customized. |
Max. temperature | 1700C |
Working temp. | <1600C |
Furnace atmosphere | Nitrogen,Argon and other inert gas |
Heating rate | 0-15℃/min (Suggestion: 0-10℃/min) |
Temp. control | 30 steps programmable and PID automatic control |
Vacuum degree | 10-3 torr |
Temp. accuracy | +/-1℃ |
Heating element | MoSi2 heating elements |
Voltage | 380V 50HZ |
Furnace chamber | Stainless steel |
Furnace structure | Heavy duty double layer structure with cooling fan |
Payment term | T/T in advance |
Shipment | by Air, Sea, etc. |
Delivery time | 3-7 working days |
Packing | Packing - Plastic paper inside, Polyfoam filled, Wooden case outside |
1. How to choose the most suitable Mechanical Equipment ?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are
in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines
according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan,
Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on.
6. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers
may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air
without damage.
8. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing -
delivery - customer receiving - after service.
9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
