Product Details:
|
| Warranty: | 1 Year | Customized Support: | OEM, ODM, OBM |
|---|---|---|---|
| Max Temperature: | 1400 | Voltage: | 220V |
| Usage: | Lab Application | Working Temperature: | 1300'C |
| Heating Rate: | 0-30 C/min | Place Of Origin: | Made In China |
| Highlight: | Vacuum Brazing Furnace,Box Type Furnace |
||
product description:

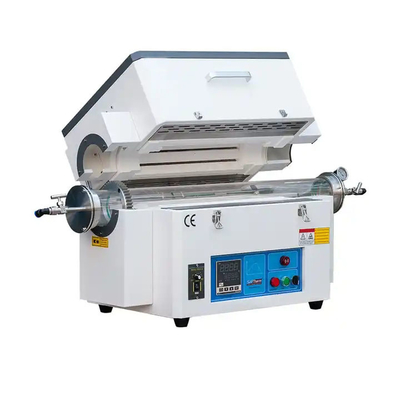

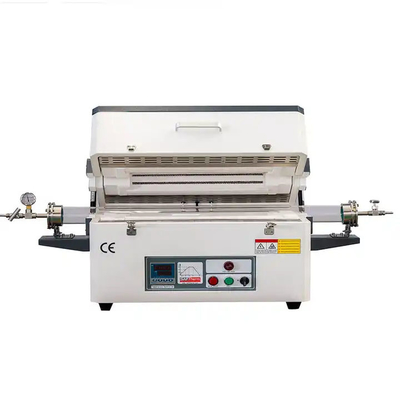

Vacuum tube furnace is used for laboratory, industrial and mining enterprises, scientific research units for element analysis and determination and general small steel parts quenching, annealing, tempering and electronic ceramics and other new materials heating instruments.
Vacuum tube furnace is cycle operation. For laboratory, industrial and mining enterprises, scientific research institutions for the determination of elements and general small steel parts quenching, annealing, tempering and electronic ceramics and other new materials for heating.
The complete supply range of this series of equipment includes temperature controller, thermocouple, compensation wire, etc. There are two kinds of temperature control: relay control and thyristor control. Because it is an intermittent operation furnace, it generally adopts 40 segments PlD advanced programmable control, which can strictly control the firing process of products.
| Model | GSA-78T | GSA-79T | GSA-80T | GSA-81T |
| Tube Size | OD40x800mm | OD60x800mm | OD80x800mm | OD100x800mm |
| Chamber length | 300mm | 300mm | 300mm | 300mm |
| Power supply | 220V/2KW | 220V/2.2KW | 220V/2.5KW | 380V/3KW |
| Furnace Type | Horizontal Split type Benchtop Front-loading |
|||
| Usage | General purpose furnace ideal for general laboratory uses—gravimetric analysis, sintering, quantitative analysis and heat treatment | |||
| Furnace structure |
Factory Prices 1400 Degree Lab Horizontal Single zone Split CVD Vacuum Tube Furnace 1. The furnace is consist of heating system, gas system, vacuum system |
|||
| Max. Temperature | 1200℃ | |||
| Continuous Temperature | 1100℃ | |||
| Heating Rate | ≤15℃/min (suggest 10℃/min for longer life using of furnace) | |||
| Heating Element | With the features of small volume, low energy consumption and light weight, the mini furnace is convenient for every person hold one set in the laboratory. It use electric resistance wire as heating element, adopted carbon steel shell structure and intelligent temperature control system | |||
| Chamber material | 1. Adopt high quality alumina polycrystalline fiber, which used Japanese technology (vac-sorb forming alumina polycrystalline fiber) with good insulation and durability properties 2. High quality 1300 degree fiber alumina as refractory lining, pure white color 3. Ceramic fiber insulation for fast heat-up and reduced energy consumption—rise time to 1100°>C takes only 50 minutes 4. Embedded heating elements on the round chamber which give an ideal temperature uniformity |
|||
| Temp. Uniformity | ±5°C | |||
| Thermocouple | N type | |||
| Temperature Controller | 1. Control system integrated in the furnace base, Defined application within the constraints of the operating instructions 2. Furnace temperature controller utilizes SHIMADEN PID 4 group 8 segments program 3. Feature single setpoint digital control, LED display of actual temperature VS set point 4. A high-precision digital microprocessor controller fitted with self-tuning and manual PID settings makes temperature and other parameters easy to control 5. Temperature controller Precision ±1℃ |
|||
| Electronic component | SCHNEIDER maker air switch, buttons, solid-state relay, A.C contactor etc. | |||
| Furnace Shell | 1. High quality cold-rolled steel sheets CNC processing 2. Environmental electrostatic plastic-spraying on surface after deoiling, derusting, phosphating etc. nine processes 3. Energy efficient insulation keeps exterior safe to touch |
|||
| Safety Precautions | 1. Overheating & Broken thermocouple protection 2. Leakage circuit breaker 3. Automatic power off when furnace door opens (optional function) 4. Over-temperature protection and alarm allow for operation without attendant(s) 5. Microprocessor-based PID control with self-tuning capability to prevent overshooting of set temperature |
|||

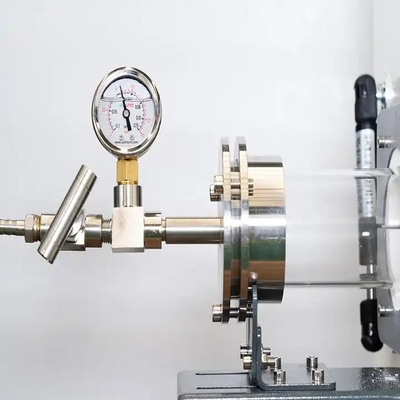

| Optional Accessories | 1. Alumina Crucibles 2. paperless recorder 3. exhaust chimney 4. Vacuum pump 5. Vacuum gauge |
|||
| Certification | ISO9001 CE SGS | |||
| Warranty | One year limited manufacturer's warranty (Consumable parts such as processing tubes, O-rings and heating elements are not covered by the warranty, please order replacements at related products respectively | |||
