Product Details:
|
| Warranty: | 1 Year | Power: | Electronic |
|---|---|---|---|
| Temperature Control Range: | -55°C ~ +180 °C | Controller: | Programmable LCD Touch Screen |
| Weight: | 650kg | External Chamber Material: | Plate+painting Or Stainless Steel For Choose |
| Temperature Accuracy: | 0.5°C | Inner Chamber Materials: | SUS304 |
| High Light: | Temperature And Humidity Chamber,Climatic Test Chamber |
||
product description:
Temperature Test Chamber Price,High Temperature Chamber,Cold Chamber Testing is for testing material heat, cold, dry resistance, humidity resistance.Suitable for electronics, electrical appliances,Communications, instrumentation, vehicles, plastic products, metal, food, chemical,building materials, medical, aerospaceand other products.
Box structure:
The box body is made of CNC machine tool processing, beautiful and generous, and the use of no reaction handle, easy to operate.
Box liner adopts imported advanced stainless steel (SUS304) mirror plate, box liner adopts A3 steel spray, increasing the appearance texture and cleanliness.
The water tank is placed in the lower right part of the control box, and has automatic water shortage protection, more convenient for the operator to replenish water.

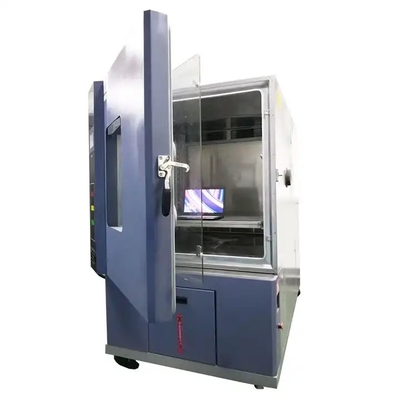

Large observation window with lights to keep the box bright, and the use of heating body embedded toughened glass, clear observation of the box at any time.
The humidifier system pipes are separated from the control circuit board to avoid faults caused by water leakage in the humidifier pipes and improve safety.
Waterway system piping circuit system is easy to maintain and overhaul.
Superfine glass fiber insulation cotton is used to prevent unnecessary energy loss.
A test hole with a diameter of 50mm is provided on the left side of the box, which can be used to connect external test power cables or signal cables. Box structure
The box body is made of CNC machine tool processing, beautiful and generous, and the use of no reaction handle, easy to operate.
Box liner adopts imported advanced stainless steel (SUS304) mirror plate, box liner adopts A3 steel spray, increasing the appearance texture and cleanliness.
The water tank is placed in the lower right part of the control box, and has automatic water shortage protection, more convenient for the operator to replenish water.
Large observation window with lights to keep the box bright, and the use of heating body embedded toughened glass, clear observation of the box at any time.
The humidifier system pipes are separated from the control circuit board to avoid faults caused by water leakage in the humidifier pipes and improve safety.
Waterway system piping circuit system is easy to maintain and overhaul.
Superfine glass fiber insulation cotton is used to prevent unnecessary energy loss.
A test hole with a diameter of 50mm is provided on the left side of the box, which can be used to connect external test power cables or signal cables.
|
Model
|
GSA-225A
|
GSA-225B
|
GSA-225D
|
|
|
T&H adjustment mode
|
Smart balanced temperature (humidity) control - BT(H)C
|
|||
|
Perfomance
|
Temperature range
|
-20℃ to +150℃
|
-40℃ to +150℃
|
-70℃ to +150℃
|
|
Temperature fluctuation
|
≤±0.5℃
|
|||
|
Temperature uniformity
|
≤±2.0℃
|
|||
|
Temperature deviation
|
≤±2.0℃
|
|||
|
Heat-up rate
Non-linear |
From -20℃ to +150℃
3℃/min. |
From -40℃ to +150℃
3℃/min. |
From -70℃ to +150℃
3℃/min. |
|
|
Cool-down rate
Non-linear |
From +20℃ to -20℃
1℃/min. |
From +20℃ to -40℃
1℃/min. |
From +20℃ to -70℃
1℃/min. |
|
|
Humidity range
|
20％RH to 98％RH
|
|||
|
Humidity fluctuation
|
±2.0％RH
|
|||
|
Humidity unformity
|
±3.0％RH
|
|||
|
Humidity deviation
|
±3.0％RH when Humidity＞75％RH
±5.0％RH when Humidity≤75％RH |
|||
|
Noise level
|
≤70dB
|
|||
|
Workspace volume
|
225L
|
|||
|
Workspace dimensions (WxDxH)mm
|
600x500x750
|
|||
|
Exterior dimensions (WxDxH)mm
|
850x1500x1750
|
|||
|
Material
|
Interior
|
Matte SUS #304 Stainless Steel Plates
|
||
|
Exterior
|
Powder Coated Carbon Steel Plates
|
|||
|
Seal
|
Imported Silicone Seal
|
|||
|
Insulation
|
Hard Polyurethane Foam Insulation and Glass Wool
|
|||
|
System
|
Heating
|
Nichrome Wire Electric Heater
|
||
|
Humidification
|
Stainless Steel Armoured Humidifier (Vapor Generator System)
|
|||
|
Air circulation
|
Centrifugal Blower Fan
|
|||
|
Refrigeration
|
France TECUMSEH Hermetic Compressor or Other Brands
Air-cooled or Water-cooled Cooling Mode for Option Zero Ozone Depletion Potential (ODP) Refrigerant - R404A / R23 |
|||
|
Controller
|
Display
|
7 inch 65535 true color, LED backlit display screen, resolution 800 x 480.
|
||
|
Operating modes
|
Program or set point
|
|||
|
Setting method
|
Man-machine dialogue mode, touch-screen input and control.
|
|||
|
Program capacity
|
Up to 269 groups, a total of 13,450 segments.
|
|||
|
Control accuracy
|
Temperature: ±0.01℃; Humidity: ±0.1%RH; Time: 0.01min.
|
|||
|
Communication interface
|
USB, RS-232, RS-485, or Ethernet.
|
|||
|
Standard configurations
|
1 x Multi-pane viewing window; 1 x cable access port;
1 x internal light; 4 x casters & leveling legs; 1 x power cable; 2 x stainless steel shelves. |
|||
|
Allowable ambient conditions
|
Temperature: +5℃ to +35℃;
Relative humidity: ≤85％RH (No condensation); Air pressure: 86kPa to 106kPa. |
|||
|
Electrical supply
|
AC 380 (1±10％)V (50±0.5)Hz 3 Phase 4 Wire plus Earth Wire
|
|||
|
▲Custom options available
|
||||
FAQ:
1.Are your company a factory or a trading company ?
A:-- We are a manufacturer, factory + trading company
2.What are the payment methods?
A:- Payment methods are T/T, Paypal, LC, VISA
3.Do you accept customization service? Can I have my logo on the machine?
A:--Yes, of course. We can not only offer standard machines, but also customized.
4.How do you calibrate the equipment?
A:--We have our own calibration and third-party calibration such as ISO17025.
5.What's the delivery term?
A:--At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 7-20 working days after deposit receipt. If you
are in urgent need, we can consider making a special arrangement for you.
6.What about the services and product' quality?
A:-Service: ,Design service ,Buyer service. Quality: Each instruments must be carried out 100% quality examination and test, the finished
products must through a third party calibration institutions before shipping and delivery goods.
7.Can we come to your factory to study and train?
A:- Welcome to our factory for study and training, we provide this service free of charge.
8.Do you have an agent?
A:- Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.
