Product Details:
|
| Place Of Origin: | Guangdong, China | Voltage: | 380V 50HZ |
|---|---|---|---|
| Weight (T): | 12 T | Warranty: | 1 Year |
| Usage: | Heat Treatment Furnace | Dimension(L*W*H): | 600x400x400 |
| Power (kW): | 120KW | Authentication Certificate: | CE |
| High Light: | Vacuum Brazing Furnace,Box Type Furnace |
||
product description:

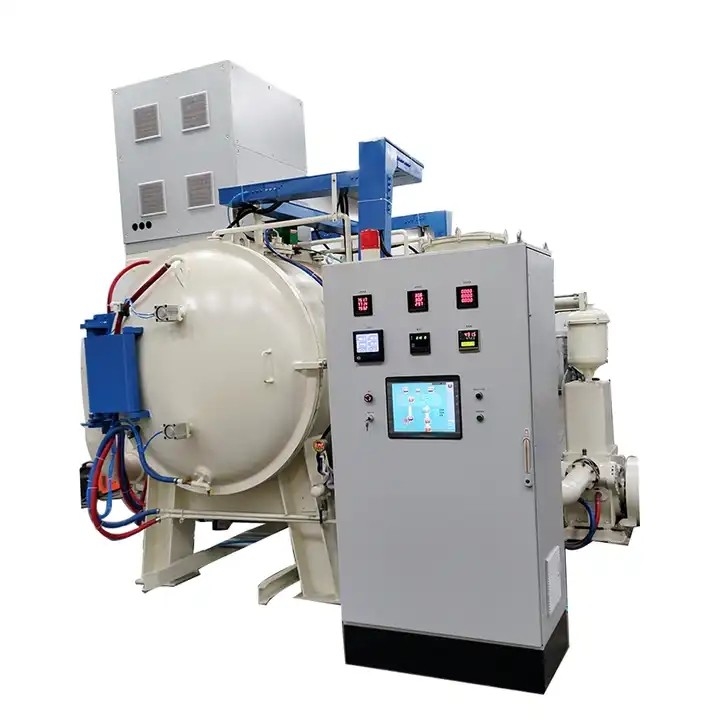

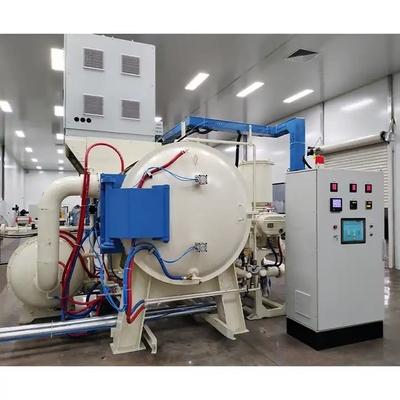

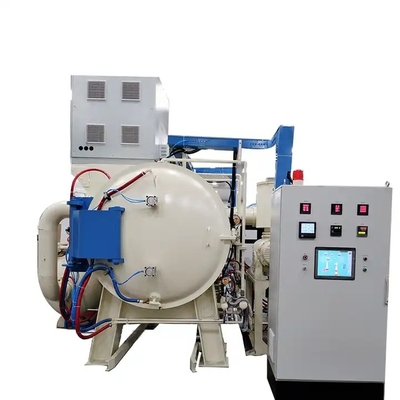

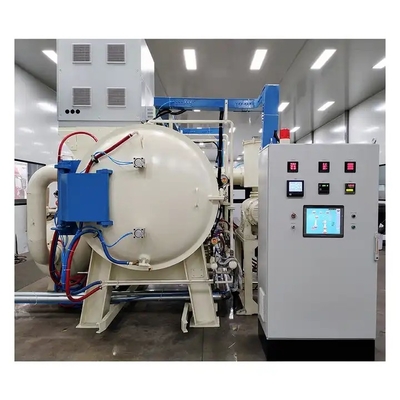

Muffle furnace adopts molybdenum wire as heating element, adopts double shell structure and PID30 section program control temperature control system, phase shift trigger and thyristor control. The furnace body is made of soft and hard carbon fiber material, which can rise and fall quickly and gently. The shell is integral sealed, the cover plate and the door seal are made of high temperature silicone O-ring, and the door is equipped with a water cooling system. The furnace is sintered under vacuum. The furnace uses a mechanical pump and an oil diffusion pump. At the same time, it has a cold trap and a unit. The furnace has the characteristics of small volume, balanced temperature field, low surface temperature, fast temperature rise, perfect, energy saving and so on. It is the ideal product for vacuum sintering in scientific research institutes and industrial and mining enterprises.
Muffle furnace equipment uses:
The device is used in various alloy materials, devices, NdFeB magnetic materials, samarium cobalt magnetic materials, hydrogen storage alloys, vacuum sintering and aging treatment of active and refractory metals. The equipment is based on the advantages of digesting and absorbing foreign equipment. It has been refined and improved many times. Adopt internal air circulation mode and large vacuum device. It has uniform cooling, high speed, good furnace temperature uniformity and large pumping capacity. Uniform and controllable temperature, high vacuum, no leakage
|
Vacuum Sintering Furnace
|
||||||
|
Model
|
Valid zone
|
Loading volume(KG)
|
Maximum temperature (℃)
|
Heating power (kw)
|
Ultimate vacuum (Pa)
|
Gas cooling pressure (bar)
|
|
GSA28L
|
450x300x300
|
80
|
1600
|
80
|
5x10-3 or 4x10-1
|
0.8
|
|
GSA29L
|
600x400x400
|
150
|
1600
|
120
|
5x10-3 or 4x10-1
|
0.8
|
|
GSA30L
|
750x500x500
|
300
|
1600
|
150
|
5x10-3 or 4x10-1
|
0.8
|
|
GSA31L
|
900x600x600
|
500 |
1600
|
200
|
5x10-3 or 4x10-1
|
0.8
|
|
GSA32L
|
1500X600X600
|
800
|
1600
|
450
|
5x10-3 or 4x10-1
|
0.8
|
|
The heating chamber can adopt graphite tube heating and multi-layer graphite felt or graphite hard felt insulation structure;
The heating chamber with high product requirements or special materials can also be heated by molybdenum strip, molybdenum sheet and stainless steel plate composite insulation structure;
Optional configuration: customized dewaxing function according to customer requirements;
The size of valid zone can be customized according to customer requirements;
Computer control system;
|
||||||
|
Product description: Mainly used for sintering of cemented carbide, magnetic materials, ceramic parts and powder metallurgy components.
|
||||||
