Product Details:
|
| Place Of Origin: | Made In China | Voltage: | 220V 50/60HZ |
|---|---|---|---|
| Weight (T): | 0.2 T | Warranty: | 1 Year |
| Weight: | 200kg | Dimension(L*W*H): | 300*300*500 |
| Max Temperature: | 2000c | ||
| High Light: | Vacuum Brazing Furnace,Box Type Furnace |
||
product description:

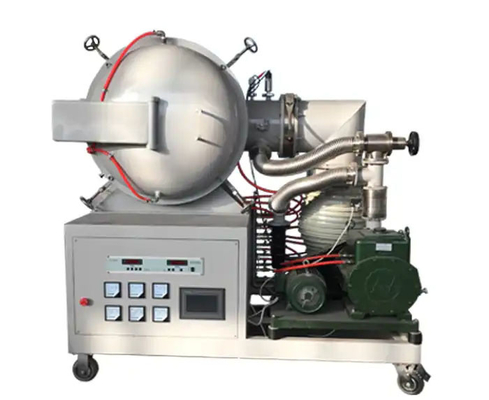

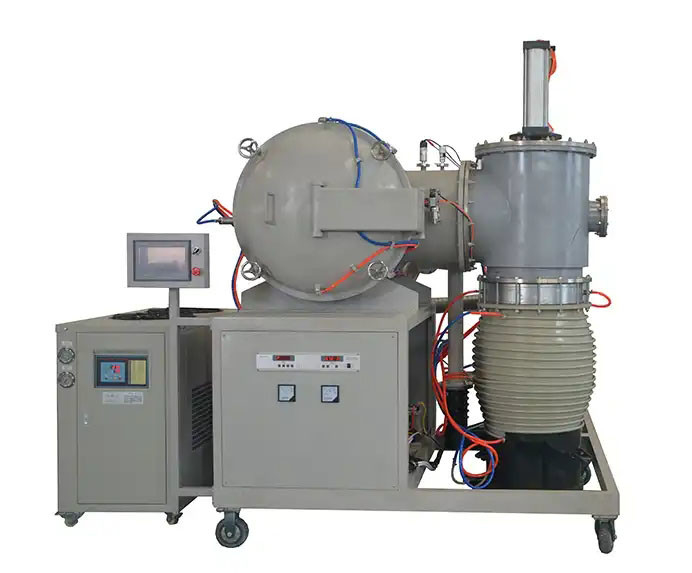

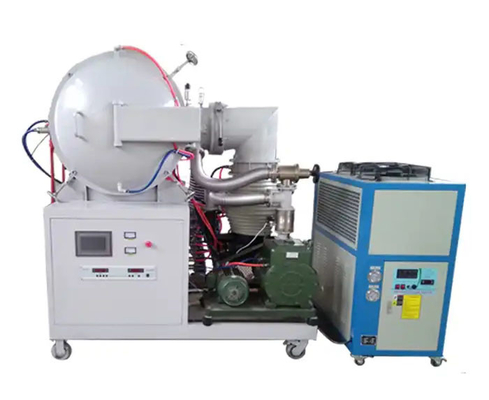

Vacuum furnace, that is, in the specific space of the furnace chamber, the vacuum system (by vacuum pump, vacuum measuring device, vacuum valve and other components carefully assembled) is used to discharge part of the material in the furnace chamber, so that the pressure in the furnace chamber is less than a standard atmospheric pressure, the space in the furnace chamber to achieve a vacuum state, which is the vacuum furnace.
Merit editing broadcast:
1) Completely eliminate the oxidation and decarbonization of the workpiece surface in the heating process, and obtain a clean surface without metamorphic layer. This can greatly improve the cutting performance of tools that grind on only one side (such as twist drill grinding to expose the decarbonized layer of the groove surface directly to the edge).
2) No pollution to the environment, no need to carry out three waste treatment.
3) The accuracy of furnace temperature measurement and monitoring is obviously improved. The indicating value of the thermocouple and the furnace temperature reached ±1.5°c. However, the temperature difference of different parts of a large number of workpiece in the furnace is large. If the rarefied gas forced circulation is adopted, the temperature difference can still be controlled within the range of ±5°c.
4) High degree of electromechanical integration. On the basis of the improvement of temperature measurement and control accuracy, workpiece movement, air pressure regulation, power regulation can be preset, according to the steps of quenching and tempering.
5) Energy consumption is significantly lower than that of salt bath furnace. Modern advanced vacuum furnace heating chamber adopts heat insulation wall and barrier made of high quality heat insulation materials, which can highly concentrate the electric heating energy in the heating chamber, and the energy saving effect is remarkable.
specification:
| Power Requirements |
Input Voltage: 208 - 240V AC, three phases. Max. Current:35A Output:25KW |
| Vacuum chamber |
Vacuum chamber made of stainless steel with water cold jacket Vacuum Chamber dimension:400 mm Dia. x 400 mm Highlight Vacuum level can achieve 10-6 torr ( cold status) Built-in Quartz window ( 120 mm dia ) for observation. Build in turbopump, which can achieve 6x10-6 torr vacuum level Built-in charger adding port, which allows more sample can be added during melting. Built-in crucible tilting mechanism to allow cast the melt into a water cold copper or refractory mold Customized casting mold is available upon request at extra cost. Standard casting mold size: D50x90mm ( customized size available upon request ) |
| Atmosphere | The furnace can fill inert gas up to 0.5 Bar. |
| Induction Heating |
15KW (30-80Khz) Dual Station Bench Top Induction Heater with Timer Control & Temp Controller Port 58 L/minute cooling water is required, but not included Induction Coil:60 mm ID x 80 mm Height, including one. The customized induction coil is available upon request |
| Temperature Control |
Programmable Temperature control with overheated protection via standard thermal couple or optical sensor upto 2100°C K type T/C -- 1200ºC Max. B type T/C -- 1700ºCMax C type T/C - - 1800ºC Max. IR optical temperature sensor: 2000ºC Max. ( optional ) |
| Warranty | One-year limited warranty with lifetime support |
| Dimensions | 1250 x1150 x 1500 ( L xWxH ), mm |
| Net Weight | ~500kg |
