Product Details:
|
| Frequency Range(Hz): | 2-4000 | Max. Exciting Force(kg.f): | 100 |
|---|---|---|---|
| Certification: | CE ISO | Max. Displacement(MMp-p): | 25 |
| Max.Acceleration(G): | 40 | Max. Speed(cm/s): | 150 |
| Payload(kg): | 65 | Moving Coil Circular(mm): | 140 |
| High Light: | Vibration Testing Equipment,Vibration Test System |
||

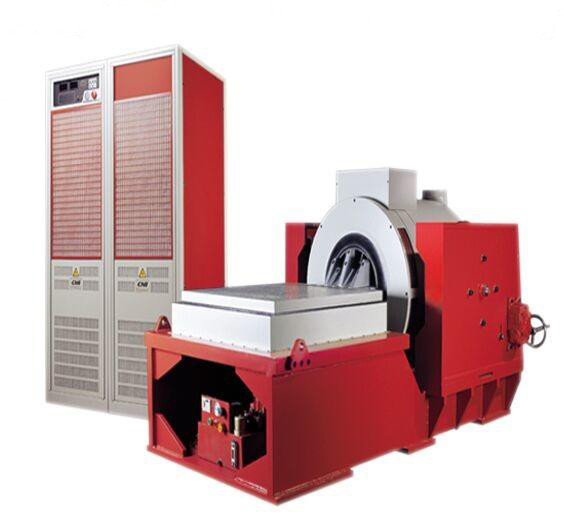

Impact Vibration Testing Machine For Automotive Heat Exchanger
Descriptions:
Vibration testing machine is mainly used for product vibration and shock environmental test environment, environmental stress screening test, reliability test, tests may be needed to do for aerospace, communications, electronics, electrical, communications, home appliances and other areas of the products. Vibration testing machine is made of vibration machine body(DC-1000), switching power amplifier(Ka-12), blower(Fj-1000), vertical expansion table(TB-0404). [horizontal sliding table(SC-0404) for optional].
Features:
1 The careful design of the moving coil skeleton, has higher first-order axial resonant frequency
2 Light armature, high stiffness, 4000 Hz frequency.
3 Computer connecting line control, immediately store materials.
4 Display controlling chart.
5 Low resistance and high performance design, high efficiency, low cost.
6 High reliability, low fault. 6 Best after sales service: One year free parts maintenance.
Technical specifications:
| Model | GSKA-11 | GSKA-12 | GSKA-13 | GSKA-14 | GSKA-15 | GSKA-16 |
| Vibrator Model | GV100/25 | GV200/25 | GV300/25 | GV300/40 | GV500/25 | GV600/25 |
| Frequency Range(Hz) | 2-4000 | 2-4000 | 2-4000 | 2-2500 | 2-3000 | 2-2500 |
| Max. Exciting Force(kg.f) | 100 | 200 | 300 | 300 | 500 | 600 |
| Max. Displacement(MMp-p) | 25 | 25 | 25 | 40 | 25 | 25 |
| Max.Acceleration(G) | 40 | 80 | 80 | 33 | 83 | 100 |
| Max. Speed(cm/s) | 150 | 150 | 160 | 120 | 150 | 150 |
| Payload(kg) | 65 | 65 | 110 | 120 | 190 | 190 |
| Moving Coil Weight (kg) | 2.5 | 2.5 | 4 | 9 | 6 | 6 |
| Moving Coil Circular(mm) | 140 | 140 | 150 | 225 | 202 | 202 |
| Vibrator Weight(kg) | 220 | 250 | 240 | 760 | 690 | 700 |
| Dimensions(LWH)mm | 675×560×660 | 675×560×660 | 675×560×660 | 675×560×660 | 800×600×710 | 800×600×710 |
| Power Amplifier Model | SA1K | SA2K | SA3K | SA4K | SA5K | SA6K |
| Power Amplifier Weight(kg) | 210 | 210 | 250 | 300 | 300 | 320 |
| Cooling Method | Force-Air Cooling | |||||
| Power Amplifier Size(L×W×H)mm | 720×545×1625 | 720×545×1625 | 720×545×1625 | 720×545×1625 | 720×545×1625 | 720×545×1625 |
| Power Source[k.w] | AC 1Ψ 220V/50Hz;3Ψ 380V 50Hz | |||||
| General Power(KVA) | 5 | 6 | 6 | 9 | 17 | 18 |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
