Product Details:
|
| Power: | 0.75kW | Brand Name: | OEM |
|---|---|---|---|
| Rated Sine Force: | 300kgf | First Resonance Frequency: | 2900Hz |
| Axial Vibration Isolation Frequency: | <3Hz | Weight: | 490kg |
| Max. Eccentric Torsion: | >196N×m | Bench Screw Layout (diameter ,square): | Φ60mm 6 Piece,Φ120mm 6 Piece |
| Highlight: | Vibration Testing Equipment,Vibration Test System |
||

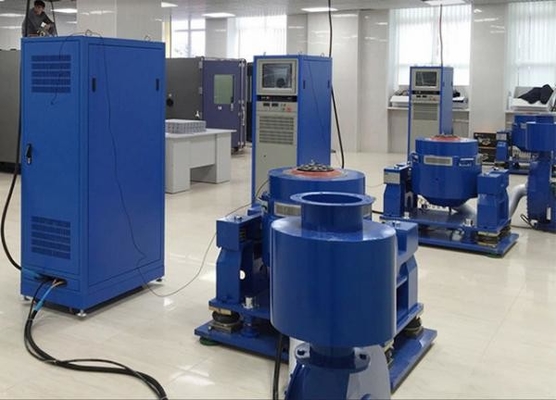

Vibration Testing Machine Has Strong Bearing Capacity And Low Vibration Transmission
Vertical Moving Type Vibration Testing Equipment is dedicated to high quality, high performance and high reliability, precision and accuracy, and convenient operation. It is a test platform that meets all kinds of test specifications, and can be executed including IEC, MIL-STD, JIS, ASTM and other specifications.
Product features:
Flexible suspension system and straight line guide, strong bearing capacity, good guidance performance and high stability.
The static stiffness of the central load airbag is large, the dynamic stiffness is small, the bearing capacity is strong, and the dynamic performance is excellent.
Rapid self-examination diagnosis and chain protection, high safety and reliability;
The air bag isolating and damping device makes the vibrator do not need the special foundation, perfectly reproduces the vibration wave and reduces the vibration transmission.
Provide different use of horizontal and vertical expansion platforms;
It can be used with all kinds of vibration controllers, and the operation is simple.
Technical Parameters:
| Vibration System (Model :GSKA315M) | |
| Rated Sine Force | 300kgf |
| Rated Random Force | 300kgf |
| Rated Shock Force | 600kgf |
| Frequency Range | 5~4000Hz |
| Max. Displacement | 25.4mm |
| Shock Displacement | 25.4mm |
| Max. Velocity | 2m/s |
| Max. Acceleration | 981m/s2 |
| Armature Diameter | Φ150mm |
| First Resonance Frequency | 2900Hz |
| Max. Eccentric Torsion | >196N×m |
| Mass of Moving elements | 3kg |
| Load Connection Point | 13 Connection Point |
| Bench Screw Size (Standard) | M8 |
| Bench Screw layout (diameter ,square) | Φ60mm 6 piece,Φ120mm 6 piece |
| Axial Vibration Isolation Frequency | <3Hz |
| Max. Loading | 120kg |
| Magnetic leakage | <3mT (≤1mT optional for special requirement ) |
| Dimension(uncrated )(L×W×H) | 764mm×530mm×660mm |
| Weight | 490kg |
