Product Details:
|
| Internal Dimension: | W1000 X H1000 X D1000 (mm) | Cooling Rate: | ≥1°C/min |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Power Supply: | 110V 60Hz,220V 50Hz | Temperature Uniformity: | ±2.0℃ |
| Material:: | SUS 304 Stainless Steel + Coating Outside | Controller Resolution: | ±0.3℃；±2.5%RH |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

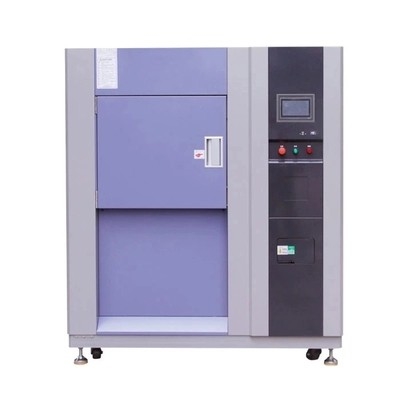

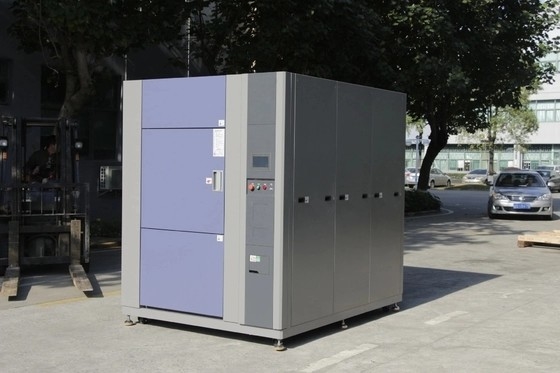

Temperature adaptability test under the condition of rapid change, or gradient for electrical, electronic, instruments and other products or spareparts, particularly applies to environmental stress screening test(ESS)
| Model | GSKA-80A | GSKA-150A | GSKA-225A | GSKA-408A | GSKA-800A | GSKA-1000A |
| Internal size WxHxD(cm) |
40x50x40
|
50x60x50 | 60x75x50 | 60x85x80 | 100x100x80 | 100x100x100 |
| External size WxHxD(cm) | 120x165x115 | 130x170x125 | 140x185x130 | 165x195x155 | 185x200x175 | 190x210x185 |
| Weight (about) | 150KG | 180KG | 250KG | 350KG | 500KG | 520KG |
| Temperature range | Low temperature: A: -40°C or -70 °C High temperature: up to 150°C | |||||
| Humidity range | 20%~98% R.H. Optional 10%~98%R.H or 5%~98% R.H | |||||
| Distribution accuracy | 0.1P 0.1%R.H./±2.0P ±3.0%R.H. | |||||
| Temp and humi control accuracy | ±0.5t) ±2.5%R.H. | |||||
| Heating/cooling time | Heating about: 3°C/min Cooling: 1°C /min | |||||
| Internal and external materials | The inner and outer boxes are made of SUS304# stainless steel plate | |||||
| Insulation material | High temperature resistant high density ethyl chloroformate foam insulation material | |||||
| Cooling system | Air-cooled | |||||
| Safety device | No fuse switch, compressor overload protection, super humidity over temperature protection, water shortage alarm protection | |||||
| Power supply | AC220V 50/60Hz & 1 # AC380V 50/60Hz3§ | |||||
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
