Product Details:
|
| Cooling Rate: | ≥1°C/min | Temperature Uniformity: | ±2.0℃ |
|---|---|---|---|
| Material: | SUS 304 Stainless Steel + Coating Outside | Controller Resolution: | ±0.3℃；±2.5%RH |
| Heating Rate: | From Normal Temperature~150℃≤50min | Customized Support:: | OEM |
| Condenser: | Water-cooled Condensing Agent | Power: | 3kw-7kW |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

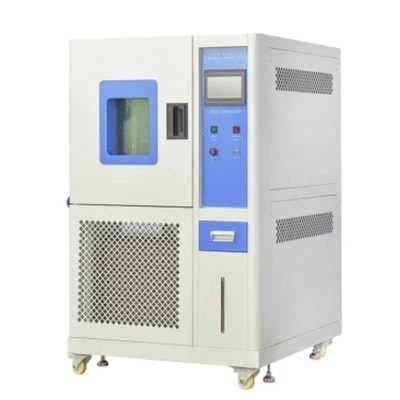

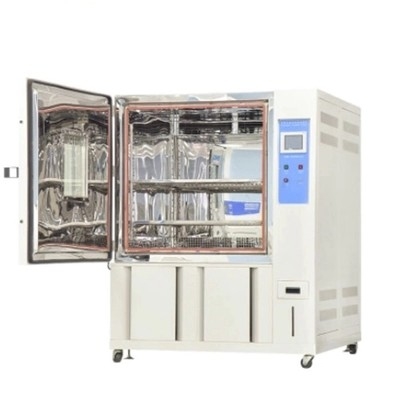

SUS304 Stainless Steel Temperature Control Chamber Touch Screen
Test chamber Application:
1. Using programmable color screen TEMI8226S imported from South Korea, the touch screen input screen display is intuitive and easy to operate, and the data is stored for a long time.
2. Make an appointment to switch on and off the machine, end the planning setting, and automatically save the data curve after power failure.
3. Real-time experimental curve analysis, equipped with RS232, USB data storage connection
4. At the end of the test, the product under test will automatically return to room temperature to avoid frost and dew protection.
5. Using servo refrigerant flow control technology to effectively achieve energy saving of more than 30%
6. The experiment is carried out in a cycle, effectively reaching a defrost every 5 days, and the defrosting only takes 2 hours, which does not affect the impact time
7. Using pure aluminum fin evaporator, effectively reducing energy storage time and energy saving
8. With two-box and three-box testing function, it meets the test specifications
Applications:
Temperature adaptability test under the condition of rapid change, or gradient for electrical, electronic, instruments and other products or spareparts, particularly applies to environmental stress screening test(ESS)
| Model | GSKA-80A | GSKA-150A | GSKA-225A | GSKA-408A | GSKA-800A | GSKA-1000A |
| Internal size WxHxD(cm) |
40x50x40
|
50x60x50 | 60x75x50 | 60x85x80 | 100x100x80 | 100x100x100 |
| External size WxHxD(cm) | 120x165x115 | 130x170x125 | 140x185x130 | 165x195x155 | 185x200x175 | 190x210x185 |
| Weight (about) | 150KG | 180KG | 250KG | 350KG | 500KG | 520KG |
| Temperature range | Low temperature: A: -40°C or -70 °C High temperature: up to 150°C | |||||
| Humidity range | 20%~98% R.H. Optional 10%~98%R.H or 5%~98% R.H | |||||
| Distribution accuracy | 0.1P 0.1%R.H./±2.0P ±3.0%R.H. | |||||
| Temp and humi control accuracy | ±0.5t) ±2.5%R.H. | |||||
| Heating/cooling time | Heating about: 3°C/min Cooling: 1°C /min | |||||
| Internal and external materials | The inner and outer boxes are made of SUS304# stainless steel plate | |||||
| Insulation material | High temperature resistant high density ethyl chloroformate foam insulation material | |||||
| Cooling system | Air-cooled | |||||
| Safety device | No fuse switch, compressor overload protection, super humidity over temperature protection, water shortage alarm protection | |||||
| Power supply | AC220V 50/60Hz & 1 # AC380V 50/60Hz3§ | |||||
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
