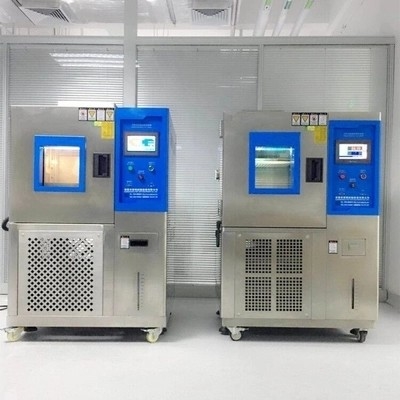

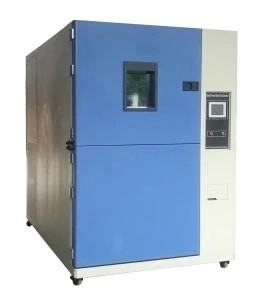

Environmental Simulation Chamber For Complex Alternating Climate AC380V

Environmental Simulation Chamber For Complex Alternating Climate AC380V
Environmental Simulation Chamber For Complex Alternating Climate AC380V Environmental Simulation Chamber For Complex Alternating Climate AC380V

Large Image :  Environmental Simulation Chamber For Complex Alternating Climate AC380V

Product Details:
Place of Origin: Made in China
Brand Name: GSKA
Certification: ce
Model Number: Thermal Shock Chamber
Payment & Shipping Terms:
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time: 15-20working days after received deposit
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 160 Set / Sets per Month

Environmental Simulation Chamber For Complex Alternating Climate AC380V

Description
Place Of Origin: Dongguan China Warranty: 1 Year
Humidity Range(Optional): 20%~98%R.H. Uniformity: +/-2.0degree C; +/-3.0% R.H.
Brand Name: GSKA Temperature Range: -70~+150 Degree C
Ccuracy: 0.1degree C; 0.1% R.H Temperature Rising/Falling Speed: 3~30degree C/Min, Adjustable
High Light:

Temp Humidity Chamber

,

Walk In Environmental Chamber

Environmental Simulation Chamber For Complex Alternating Climate AC380V



Application:


fact temperature change Temperature Humidity Stress Test Machine is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.

Highly Accelerated Temperature Chamber Features:


1.Graceful appearance, circularly shaped body, surface treated with mist strips. Easy to operate, safe and reliable


2. Rectangular double-paned viewing window for observation of sample under test,with interior lights


3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.


4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.


5. French Tecumseh is used as compressor, with environment friendly refrigeration R23,R404A


6.LCD display screen is used for the control unit, capable of displaying set point and actual point at the same time


7. The control unit has the functions of multiples segment program editing Quick or ramp rates control of temperature and humidity. Casters are provided for ease of mobility, with strong positioning screws.

Structure about humidity test chamber:


1.Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no
reaction. Easy to operate, safe and reliable.


2.Interior material:SUS#304 stainless steel , mirror polishing.


3.Exterior material:SUS#304 stainless steel.


4.Insulation Material:Resistant to high temperature, high density, formate chlorine, ethyl acetum foam
insulation materials.Test hole: One hole (Dia.50mm or Dia.100mm) on left side of chamber, for connecting outside 's powerline or
signal line.





Specification:



Model GSKA-1A GSKA-2A GSKA-3A GSKA-4A
Internal Dimension
W*H*D( mm)
500*600*500 600*750*500 600*850*800 1000*1000*800
Internal Dimension
W*H*D (mm)
1100*1750*1600 1200*1800*1700 1250*1900*1900 1600*2050*2150
Range of Fast
Temperature Change
Temperature Range: -70~+150degree C; Range of Fast Temperature Change:
-45~+85degree C; Ma*. temperature rising/falling speed is 15degree C/min when
the whole process with linear control .
Humidity Range(Optional) 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optional ,need Dehumidifier)
Indication resolution/
Distribution Uniformity
of Temperature and Humidity
0.1degree C; 0.1% R.H/±2.0degree C; ±3.0% R.H.
Control Accuracy of
Temperature and Humidity
±0.5degree C; ±2.5% R.H.
Temperature Rising/
Falling Velocity
Rising/Falling Speed Rate with linear control : 3~15degree C/min, adjustable
Rising/Falling Speed Rate non-linear control : 3~30degree C/min, adjustable
Material Interior material is SUS 304# stainless steel,e*terior is stainless steel or SEE
cold-rolled steel with paint coated.
Insulation Material Resistant to high temperature, high density, formate chlorine, ethyl acetum foam
insulation materials
Cooling System Water cooled/single segment compressor
Protection Devices Fuse-free switch, overloading protection switch for compressor, high and low
voltage coolant protection switch, over-humidity and over-temperature protection
switch, fuses, fault warning system, water short storage warning protection
Optional Accessories Inner door with operation hole(Optional), Water Purifier, Dehumidifier
Compressor French Tecumseh Brand, Germany Brand
Power AC380V 3Ph 5 lines, 50/60HZ
Appro*. Weight(Kg) 250 350 450 600





Environmental Simulation Chamber For Complex Alternating Climate AC380V 0



Advantage:


Ø 24 hours online


Ø 35 years experiences


Ø Sample chamber of each model


Ø Best price, fast delivery


Ø OEM,ODM


Ø Oversea offices


Ø Own import and export business license


Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
