Environmental Temperature Testing Chamber With LCD Touch Screen

China Dongguan FREETO Medical Technology Co., LTD certification
China Dongguan FREETO Medical Technology Co., LTD certification
Customer Reviews
The box structure is beautiful and generous, and the use of no reaction handle, simple operation, temperature and humidity stable operation, high accuracy. Explain the operation method of the equipment in detail, very good

—— Masood Rehman

I must confess you have a brilliant customer relations skills and i am learning from you. I tell you if you want to see how beautiful Zambia in Africa

—— Dr Claude VILLETTE -----France

Thanks always giving me good products. thanks for your effort you done before. your firend from Egypt.

—— Waleed-Egypt

I'm Online Chat Now

Environmental Temperature Testing Chamber With LCD Touch Screen

Environmental Temperature Testing Chamber With LCD Touch Screen
Environmental Temperature Testing Chamber With LCD Touch Screen Environmental Temperature Testing Chamber With LCD Touch Screen

Large Image :  Environmental Temperature Testing Chamber With LCD Touch Screen

Product Details:
Place of Origin: Donggaun,china
Brand Name: GSKA
Certification: CE SGS ROHS UL
Model Number: Climatic Test Chamber
Payment & Shipping Terms:
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time: 15-20working days after received deposit
Payment Terms: L/C, T/T
Supply Ability: 220 Set / Sets per Month

Environmental Temperature Testing Chamber With LCD Touch Screen

Hygrometer Type: Dry And Wet Bulb Thermometer Operate Interface: LCD Touch Screen
Brand Name: GSKA Humidity Resolution: 0.1%R.H
Box Material: SUS304 Stainless Steel Place Of Origin: Dongguan China
Temperature Range: -20ºC ~ + 150ºC Temperature Uniformity: <= 2ºC
High Light:

Temp Humidity Chamber


Walk In Environmental Chamber

Environmental Temperature Testing Chamber With LCD Touch Screen


Product description:

100L Temperature and Humidity Chamber is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.


1. The separation of humidifier circuit from electric circuit improves safety and protects the circuit against the leakage of water supply line.

2. Available in Chinese and English LCD touch screen, easy operation and program.

3. Programmable constant temperature humidity chamber is able to display the relative date and information of the whole operating system in running mode, graphic display. Precautions, maintenance and troubleshooting appear on the screen instantly.

4. The Sirocco fan motor provides greater cyclic airflow to avoid dead corner in the chamber so as to obtain an uniform distribution of temperature and humidity. The system of heating up, heating down, dehumidifying, and humidifying can be operated independently so as to reduce the cost of testing, extend the operating life of the machine and decrease the failure rate. Water Supply adopts automatic watering System, Circulating water supply together with water filter.

Standard Parameters:


Model GSKA-100A
Capacity 100L
Internal dimensions 400mm*500mm*500mm(W*H*D)
External dimensions 900mm*1400mm*1075mm(W*H*D)
Temperature Range -20ºC ~ + 150ºC
Humidity Range 20ºC~98%R.H
Temperature resolution 0.01ºC
Humidity resolution 0.1%R.H
Temperature deviation ±0.5ºC
Humidity deviation ±2%R.H
Temperature uniformity <= 2ºC
Humidity deviation ±3%R.H
Temperature fluctuation ±0.5ºC
Humidity fluctuation ± 2%R.H
Heating rate -70ºC → + 150ºC ,Average throughout >= 3ºC / min
Cooling rate 150ºC → -70ºC ,Average throughout >= 1ºC / min
Case shell material SUS304 # stainless steel plate (thickness 1.2mm)
Chassis inner wall material SUS304 # stainless steel plate (thickness 1.2mm)
Insulation material 100mmRigid polyurethane foam+100mmHigh density glass fiber cotton
Standard configuration φ50 Test hole, lighting lamp, double-layer vacuum strengthened glass observation window
Weight 150kg
Electric current 6A
Power 5.5kw
Power supply single-phase,220V,50/60HZ
Filter drier Absorbs residual moisture and acidic substances in the refrigerant of the refrigeration system, and filters out solid rest particles and copper shavings in the system to protect the normal operation of the expansion valve and capillary from ice and dirty plugging
Humidification system Stainless steel humidifier
Heating system Nickel chromium alloy stainless steel heater
Water supply system Front-mounted water supply tank, automatic water supply system



(The above parameters are machine standard parameters and can be customized according to your requirements)

Control system:

1. Adopt precision liquid crystal display programmable temperature controller;

2. Intelligent digital display PID microcomputer temperature control instrument;

3. Touch setting, digital and direct display, humidity directly display percentage, temperature sensor uses PT100 platinum resistance tester.

4. The temperature control adopts the thermal balance method.

5. Programmable temperature controller can do program test, and can have multiple sets of multi-segment programming operation, set value and program are optional, time can be set arbitrarily.The main electrical components of the equipment, such as circuit breakers and AC contactors, all use the "Zhengtai" brand, and other electrical accessories adopt well-known domestic brands. Convenient data processing: It can be connected to a printer or 232 communication interface, with a USB data transfer interface (U disk), displayed by a computer, and printed temperature and humidity and time curve, which provides a strong guarantee for data storage and playback during the test process.

Protection system:

The overall equipment is over temperature, the fan is overheated, the overall equipment is under-phase / reverse-phase, the refrigeration system is overloaded, the refrigeration unit is over-pressured, the overall equipment is timed, and there are leakage, operation indication, and automatic shutdown after failure alarm.

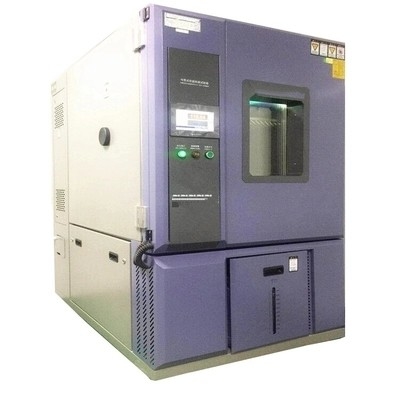

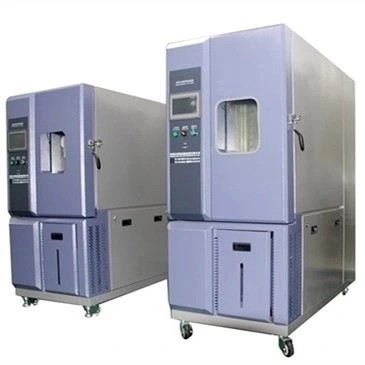

Product images:

Environmental Temperature Testing Chamber With LCD Touch Screen 0

Our Company:

GSKA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
