Product Details:
|
Unit (switchable): | N, KN, Kgf, Lbf, Mpa,Lbf / In2, Kgf / MM2 | Load Resolution: | 1 / 500,000 |
---|---|---|---|
Load Accuracy: | ± 0.25 % | Load Range: | Rangless |
Effective Width: | 400mm, 500mm (optional) | Voltage: | 220V |
Main Unit Dimension: | W830xD670xH1940mm | Main Unit Weight: | 345Kg |
High Light: | Tensile Strength Tester,Tensile Test Equipment |

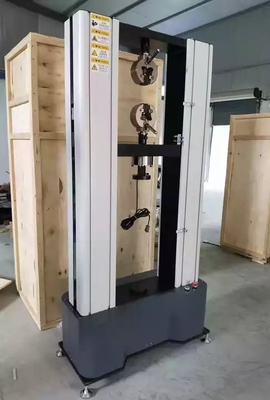

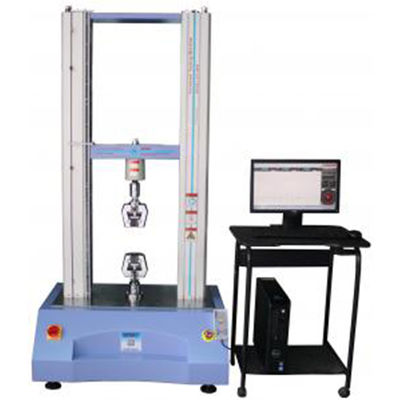

50KN Servo Control Universal Testing Machine, 20KN Tensile Test Machine, 10KN Compression Test Machine
Application:
Servo Control Tensile Testing Machine) are applies to all kinds of metal, non-metallic materials subjected to tensile, compression, bending, shear, tearing, peel, puncture and other mechanical properties, you can also carry out constant velocity loaded, constant velocity displacement, automatic control, and low-cycle Loadings cycle, deformation circulation, displacement function of loop. To strike elongation, tensile strength, flexural modulus, modulus of elasticity, yield strength, the net energy, fold back energy, the total energy and other indicators.
Standard:
Tension testing machine is manufactured according to the standards including GB / T 16491 - 2008, GB2611 - 2007, JB6146 - 2007, JJF1246 - 2010.
To meet GB / T228-2002, GB / T14452 - 93 standard testing requirements.
To meet ASTM D638 - 03, ASTM D790 - 07 standard testing requirements.
To meet GB/T2792, ASTM D3330-04 Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape (Test Method A—Single - Coated Tapes at 180° Angle), ASTM D1894 - 06 Standard Test Method for Static and Kinetic Coefficients of Friction of Plastic Film and Sheeting(Single Coated Tapes at 90° Angle) standard testing requirements.
Features:
High accuracy:
Adopt AC servo motor to driving the high precise Taiwan ABBA ball screw working, with high precise America TRANSCELL explosion-proof load cell, load accuracy reached to ±0.25% & displacement accuracy reach to 0.001mm.
High performance:
Automatic broken identification, automatically return, point collected by hand, multi-units switching, English and Chinese languages can be choice. And also have many kinds of analysis curve: stress vs strain curve, load vs flexure curve, strength vs deformation curve, strength vs time curve, time vs flexure curve.
Specification:
Model | GSKA-9010 |
Capacity (optional) | 100N, 200N, 500N, 1KN, 2KN, 5KN, 10KN, 20KN, 30KN, 50KN |
Unit (switchable) | N, KN, Kgf, Lbf, Mpa,Lbf / In2, Kgf / MM2 |
Power system | Japan Panasonic serve motor |
Load resolution | 1 / 500,000 |
Load accuracy | ± 0.25 % |
Load range | rangless |
Stroke (exclude the grips) | 800mm,1000mm (optional) |
Effective width | 400mm, 500mm (optional) |
Test speed | 0.001 ~ 500mm / min |
Speed accuracy | ± 0.5 % |
Stroke resolution | 0.001mm |
Software | Profession software |
Motor | AC servo Motor |
Main unit dimension | W830xD670xH1940mm |
Main unit weight | 345Kg |
Power supply | AC220V 5A or specified by user |
Advantage:
Ø 24 hours online
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
