Product Details:
|
| Capacity: | 1,2,5,10,20,50,100,200,500,1000,2000 Optional(or Customize) | Effective Test Width: | 400mm |
|---|---|---|---|
| Deformation Test Accuracy: | Less Than ±0.5% | Test Force Resolution: | 1/250,000 |
| Optional Parts: | Lenovo Computer | Dimension: | 80×50×150cm |
| Power: | 220V/50HZ | Load Force: | 500N To 20KN |
| High Light: | Tensile Strength Tester,Tensile Test Equipment |
||

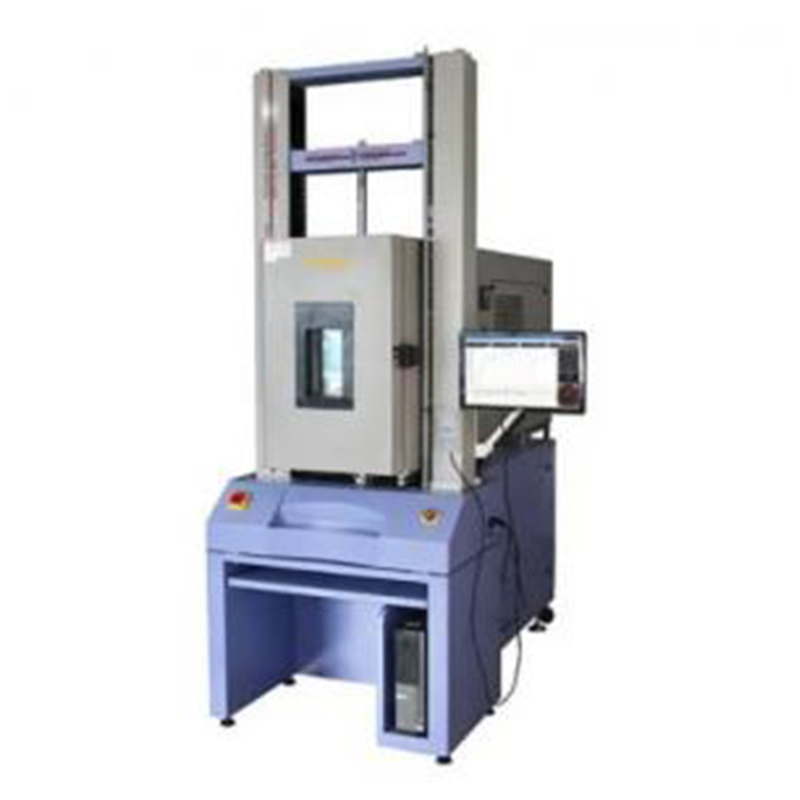

LED Digital Display Output Tensile Test Machine With Temperature Chamber OEM
Main feature:
Universal tensile testing machine, compared with a ball screw type electric mechanical UTM, is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force. Therefore it is very suitable for making test to different metal and nonmetal materials under high toughness and hardness against extreme big loading force.
By using oil pressure transducer and photoelectric encoder, the computer is timely collecting the testing parameter like loading force, stroke etc.The servo system will provide on line close loop control and constant parameters control. The test software is able to create customized testing methods and setup testing report in only a few steps. GSKA series is widely used in different inspection department, engineering area, universities and institutes.
are widely use for different material testing, like semi-product & finished product made of rubber, plastic, metal, nylon, non-woven fabrics, textile, tape, polyfoam, waterproof materials, wire, cable, etc. With different test jigs or fixtures, the UTM can run the tensile, compression, shearing foce, adhesion, peeling force, tear strength, fatigue, etc test according to GB, CNS, ASTM, ISO, DIN, JIS, EN test standards.
The SM-UTM-8000-T series are tensile test machines integrated with temperature chamber as one test machine, to run the tension, compression, bend, peel, shear and other materials tests under high low temperature environment. Integrating HMI with P.I.D system, the chamber is easy to use and stable temperature control.
Metal high temperature tensile test
Metal low temperature tensile test
Rubber high & low temperature tensile test
Other material high & low temperature tensile test
Test standard:
GB/T4338-1995 ISO783:1989 metal high tempertature tensile test
GB/T13239-2006 ISO15579:2000 metal low temperature tensile test
GB/T228-2002 ISO6892:1998 metal room temperature tensile test
Main Technical Parameter:
| Capacity | 1,2,5,10,20,50,100,200,500,1000,2000 optional(or customize) | |
| Accuracy level | 0.5 | |
| Effective pull space | 1200mm(contain grips) | |
| Effective test width |
400mm
|
320mm |
| Effective test force range | 0.02/100~100% | |
| Speed accuracy | Less than ±0.5% | |
| Displacement accuracy | Less than ±0.5% | |
| Deformation test accuracy | Less than ±0.5% | |
| Sensor | Imported high accuracy sensor | |
| Test force resolution | 1/250,000 | 1/150,000 |
| Test Speed | 0.1~500mm/min | 50~500mm/min |
| Motor system | Panasonic servo motor + Panasonic sevor drive | AC motor + AC drive |
| Software controlling system | Fully computer control, can do constant stress, constant strain, constant displacement,ect. test | |
| Lifting control | Computer control or manual button control | |

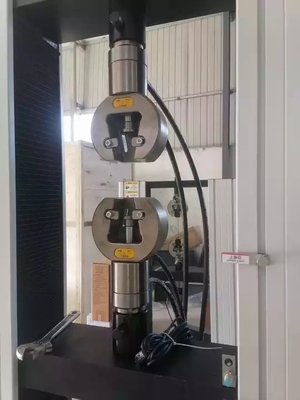

| Grips | Customize according to customer requirements | |
| Optional parts | Lenovo computer | |
| Dimension | 80×50×150cm | |
| Weight: | About 145 kg | |
| Operation method | computer control | |
| Operation system | TM2102 | |
| Power | 1Ø,220V/50HZ |
|
Advantage:
Ø 24 hours online
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
