Product Details:
|
| Maximum Test Force: | 300KN | Accuracy Class: | 0.5 |
|---|---|---|---|
| Measuring Range Of Test Force: | 0.4%～100%FS (full Scale) | Indicating Error Of Test Force: | Within ±0.5% Of Indicating Value |
| Displacement Indicating Error: | Within ±0.5% Of Indicating Value | Resolution Of Displacement: | 0.025μm |
| Horizontal Test Space: | ≤400mm | Force Reading: | Kgf, Ibf, N, KN, T Etc |
| High Light: | Tensile Strength Tester,Tensile Test Equipment |
||

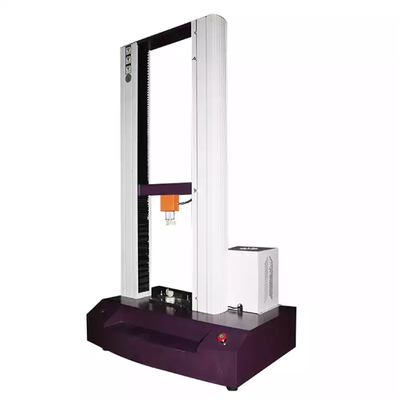

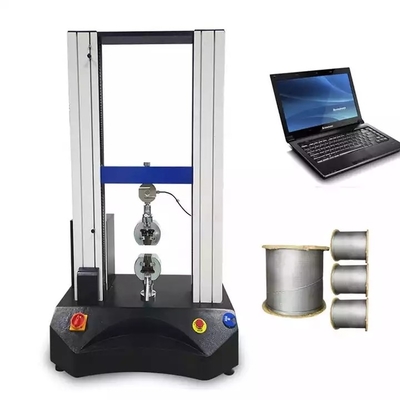

300KN Universal Tensile Testing Machine For Tensile Test Lab Report And Tensile Shear Test
Application of equipment:
This machine is applied in analysis and research of statics property testing of tensile, compression, bending, cutting, holding and other items of metal and nonmetal material (including composite material). It can achieve ReH, ReL, Rp0.2, Fm, Rt0.5 , Rt0.6, Rt0.65, Rt0.7,Rm, E and other testing parameters automatically and can also do test and provide data according to GB, ISO, DIN, ASTM, JIS and other international standards.
Main feature:
Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, calculation and storage. It can automatic calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, automated statistical results; automatically recorded the biggest point, breaking point, the designated point value or the rate of elongation; Using computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics processing module, printing reports, product performance reached the international advanced level.
Tensile Test Equipment:
| Item | Description |
| Frame capacity | 5000kg |
| Load cell brand | Germany brand load cell for high accuracy 5000kg (1000,2000kg are optional) |
| Load accuracy | 0.5% F.S |
| Control system | PC with windows 7 system |
| Motor | Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Vertical test space | 1100mm including fixture |
| Horizontal test space | ≤400mm |
| Test speed | 0.1~300mm/min (adjustable) |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features | E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Advantage:
Ø 24 hours online
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
