Product Details:
|
| Vertical Test Space: | 1100mm Including Fixture | Test Speed: | 70-270 Mm/min(choose By Customer) |
|---|---|---|---|
| Working Voltage: | 110-220V | Outline Dimension: | 250×340×1270 |
| Experience In Making: | 15years | Speed Accuracy: | Less Than ±0.5% |
| Stoke: | 650~1200mm | Power: | Electronic |
| High Light: | Tensile Strength Tester,Tensile Test Equipment |
||

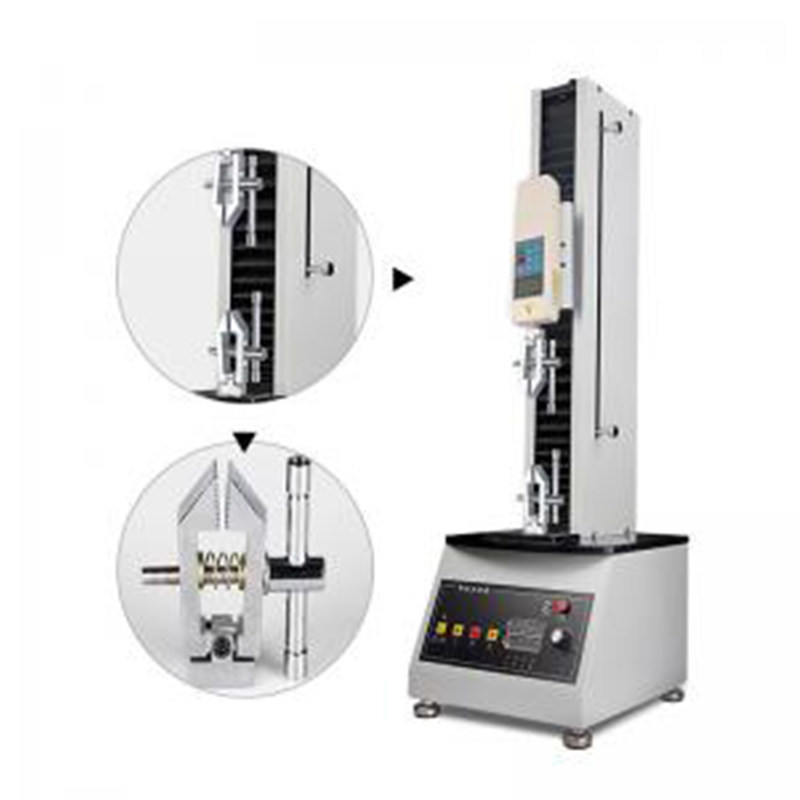

Brush And Toothbrush Tensile Testing Machine Stepless Speed Regulation
Features:
Single-column Vertical Machine is force load test platform specially matched for HF and NK series force measurement gauge. The product is double vertical rod structure, featuring good stability, wide applicable scope and convenience, as well as stepless speed regulation, manual (point) and automatic control switching functions. Applicable for tests of force load, Insertion and withdrawal, destruction in such industries as rubber and plastic, light industry-textile, constructional door and window, composite materials, electric wire and cable, parts and accessories for automobile, power machinery, scientific research institutes, etc.
1. Electric load, stepless speed regulation, gear drive
2. Compact structure, stable drive

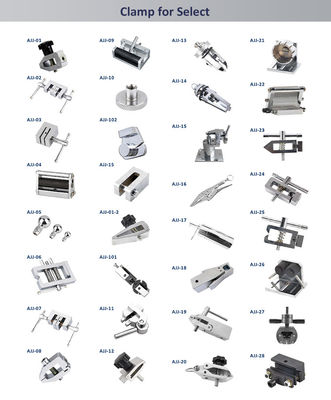

3. Simple operation, able to be used with various kinds of clips
Applicable Industries:
The tensile testing equipment is the double columns pulling and pressure testing machine,which is suitable for testing strength of plastic film, composite materials, soft packaging materials, plastic hose, adhesive, adhesive tape, adhesive sticker, medical patch, protective film, release paper, combination cover, metal foil, nafion, backplane materials, non-woven fabric, rubber, paper fiber and other materials in tension, compression, bending, shearing, tearing and peeling, puncture, three point bending condition and relevant physical parameters.
This machine is Widely used in textile manufacturing, furniture manufacturing industry related materials, all kinds of wire mesh, adhesive sticker pressure sensitive adhesive tape, film materials, medical electronic equipment protective film related industries.
Corresponding Standard:
ASTM D903,GB/T16491,GB/T 2790/2791/2792,CNS-11888,JIS K6854, PSTC-7 ,GB 13022,GB 8808,GB 1040,GB 4850,GB 7753/7754,GB 453,GB/T 17200,GB/T 16578,GB/T 7122,GB/T 17590,ASTM E4,ASTM D828,ASTM D882,ASTM D1938,ASTM D3330,ASTM F88,ASTM F904,ISO 37,JIS P8113,QB/T 2358,QB/T 1130 and other standards.
Front View of Universal testing machine laboratory apparatus textile fiber tensile test machine/rubber tensile tester
Main Technical Parameter:
| Max capacity | 5kg,10kg,25kg,50kg,100kg,250kg,500kg,1000kg,2000kg,5000kg(It is optional.) can be setting |
| Induction method : | Precision load cell (sensor) |
| Max. Load Capacity : | 5000kg |
| Force Resolution/Accuracy: | ± 0.5% |
| Accuracy class : | 0.5 |
| Resolution: | 1/1,000,000 |
| Test width: | 400mm(Standard specifications special specifications can be customized) |
| Test stroke : | Max.700 mm( included the fixture) |
| Stroke Resolution: | 0.01mm |
| Speed range: | 0.001-20inches/min |
| Reference Machine Dimension: | 800×530×1600mm (L*W*H) Support Customized |
| Power : | 1 phase 220V 50/60Hz |
| Packing | Standard Export plywood case |
| Force system | servo drives + Servo motor + precision ball screw drive |
| Control system | Mechanical transmission + TM2101 + Pulse Command and Control System control |
| Measurement and Control System | TM2101 and control system; master controller uses the most advanced 32-bit ARM processor in the 21st century, the processing speed of the Pentium-class common computer standards, compared to the traditional 8 yuan SCM control system overall performance greatly improved, faster operation, control accuracy higher |
Obtain data |
The key components are used America's most stable and ultra-precision 24 yuan AD, sampling rate of up to 2000 times / sec, can capture the power of instantaneous change process, the entire file, regardless of the resolution of up to 1,000,000 indexing |
| Displacement Control: | Displacement encoder count with four frequency technology So that the displacement of four times the resolution can up to 0.0005mm |
| Safety devices: | 1. overload, emergency stop device
2. the upper and lower travel limit devices
3. the test is completed automatic shutdown device
|
|
|
ASTM D903, ASTM E8 CNS11888, JIS K6854, PSTC7 ASTM D903,GB/T16491CNS-11888,JIS K6854, PSTC-7 ,ASTM E4,ASTM D828,ASTM D882,ASTM,D1938,ASTM D 412 ,ISO 8339ASTM D3330,ASTM F88,ASTM F904,ISO 37,JIS P8113,QB/T 2358,QB/T 1130 , ISO 527 ,ISO 178 and other standards. |
Advantage:
Ø 24 hours online
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
