Product Details:
|
| Motor: | TaiWan TECO AC Servo Moto | Test Width: | 550mm |
|---|---|---|---|
| Color: | White And Blue (customized) | Disp. Resolution: | 0.04μm |
| Load Accuracy: | ≤±1% | Tensile Space: | N Space: 700mm (can Be Customized) |
| Clamp Type: | Manual Clamp (pneumatic/hydraulic Clamp For Choice) | Load Resolution: | 1/300000 Of Full Scale |
| High Light: | Tensile Strength Tester,Tensile Test Equipment |
||

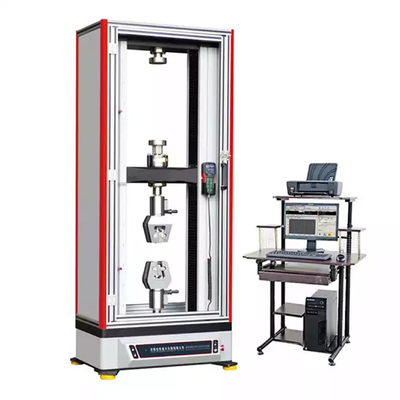

100KN Electronic Universal Testing Machine Tensile Testing Machine (Can Be Customized)
Application:
GSKA series computerized electronic universal testing machines are designed and manufacture according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Corresponding Standard:
ASTM D903,GB/T16491,GB/T 2790/2791/2792,CNS-11888,JIS K6854, PSTC-7 ,GB 13022,GB 8808,GB 1040,GB 4850,GB 7753/7754,GB 453,GB/T 17200,GB/T 16578,GB/T 7122,GB/T 17590,ASTM E4,ASTM D828,ASTM D882,ASTM D1938,ASTM D3330,ASTM F88,ASTM F904,ISO 37,JIS P8113,QB/T 2358,QB/T 1130 and other standards.

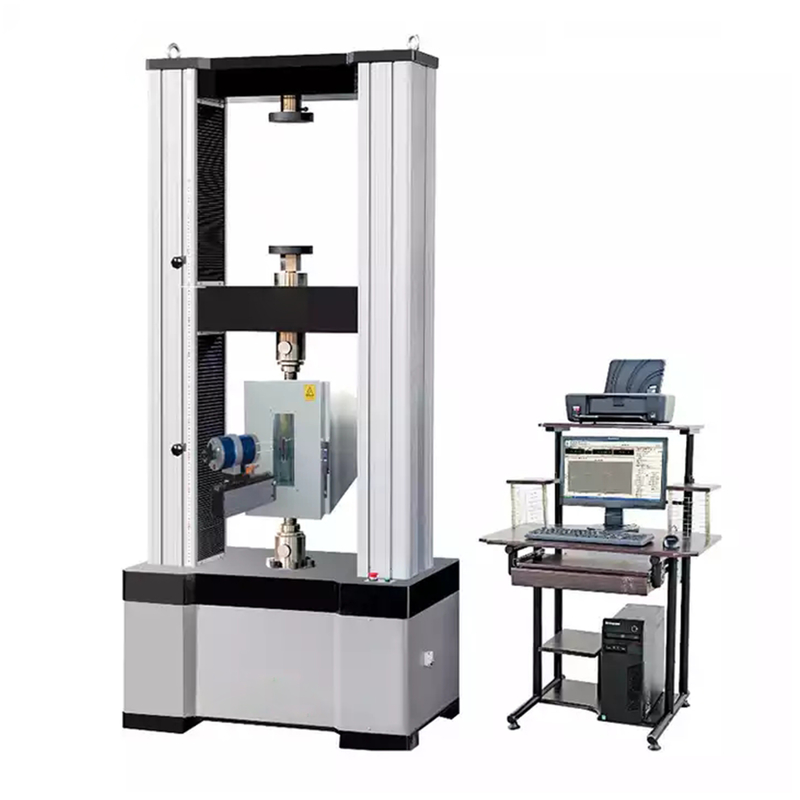

Front View of Universal testing machine laboratory apparatus textile fiber tensile test machine/rubber tensile tester
Main feature:
Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, calculation and storage. It can automatic calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, automated statistical results; automatically recorded the biggest point, breaking point, the designated point value or the rate of elongation; Using computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics processing module, printing reports, product performance reached the international advanced level.
speicification:
| Model | GSKA-50 | GSKA-50E | GSKA-100 | GSKA-100E |
| Max. Load(KN) | 50 | 50 | 100 | 100 |
| Load accuracy | Class 1 | Class 0.5 | Class 1 | Class 0.5 |
| Load range | 2%~100%F·S | 0.2%~100%F·S | 2%~100%F·S | 0.2%~100%F·S |
| Structure |
Four-column floor or desk model, (upper is compression and lower is tensile) |
|||
| Cover | All aluminum alloy | |||
| Control method | Computer control | |||
| Load resolution | 1/300000 | |||
| Rang of deformation | 4%-100%FS | |||
| Resolution of deformation | 0.04um | |||
| Accuracy of displacement | Within±0.5%of indicating load | |||
| Resolution of displacement | 0.01mm | |||
| Test speed(mm/min) | 0.05-500 stepless arbitrary setting | |||
| Tensile space(mm) | 700(can be customized) | |||
| Compression space(mm) | 700(can be customized) | |||
| Test width(mm) | 500(can be customized) | 550(can be customized) | ||
| Workbench thickness(mm) | 58 | 68 | ||
| Base height(mm) | 435 | 460 | ||
| Working environment | Room temperature 10℃~30℃,relative humidity≤80% | |||
| Power supply | AC220V±10%,50Hz/60Hz(can be customized) | |||
| Grips |
Wedge type, plate type and other grips as consumer’s demand
|
|||
| Dimension(mm) | 850*480*1865 |
1000*550*2076 |
||
