Product Details:
|
| Max Load: | 5kn,1T,2T | Effective Measuring Range: | Diesel Air Heater |
|---|---|---|---|
| Accuracy Of Displacement Measurement: | Tolerance: ±0.5%/ Tolerance: ±0.2% | Overload Protection: | Overload 10%,automatic Protection |
| Effective Testing Width: | 390mm | Effective Tensile Stroke: | 800mm;1000mm;1200mm |
| Tester Resolution: | 740m3/H | Measuring Accuracy: | Display The Value ±1%/Display The Value±0.5% |
| High Light: | Tensile Strength Tester,Tensile Test Equipment |
||

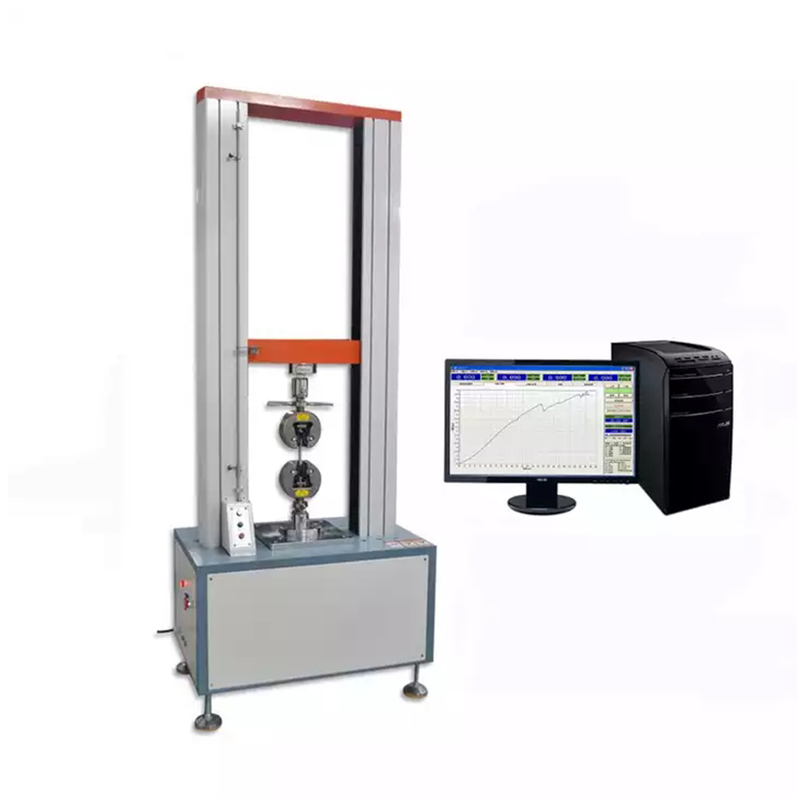

Microcomputer Control Tensile Testing Machine Universal Tensile Testing Machine OEM
Main functions:
This test machine is applied to test the flexible material with large deformation. such as rubber, plastics, leather and others to complete the test of tensile, tear, adhesive strength, peel and other tests, it is equipped with large deformative extensometer which has the specialized terminology used in measurement of specimen, suitable for testing large deformation of materials.
Applicable industry:
It is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum & Chemical; other industries.
Corresponding standard :
GB/T16491-1996 Electronic Universal Testing Machine.
Technical parameter:
| Model | GSKA-800 |
| Max load | 5KN,10KN, 20KN |
| Accurate grade | 1 % /0.5 % |
| Effective measuring range | 0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Measuring accuracy | Display the value ±1%/Display the value±0.5% |
| Tester resolution | Max load 1/200000,regardless of inside and outside,constant the resolution |
| Load sensor |
Basic configuration:sensor(max load): one Extended configuration:can add more sensors |
| Effective testing width | 390mm(can be widened according to customer’s requirement ) |
| Effective Tensile stroke | 800mm;1000mm;1200mm,(can be increased the height according to customer’s requirement) |
| Range of testing speed | 0.001~200mm/min ; 500mm/min (1000mm/min is option) |
| Accuracy of displacement measurement | Tolerance: ±0.5%/ tolerance: ±0.2% |
| Deformation of measured system(according to the requirements) |
Min span :10mm, Max range of deformation :800mm Extended deformation :Min span: 25mm,50mm,100mm, range of deformation :5mm,10mm,25mm |
| Accuracy of measured deformation | Tolerance :±0.5% (according to requirement of customer to choose the larger or small deformation) |
| safety | Electronic-limit protection |
| Testing platform moving device | Fast /slow two speeds to control,can jog |
| Return back | Manual or automatic operation,After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection | Overload 10%,automatic protection |
| fixture | A set of tensile fixture |
| Machine size | 80x55x220cm(length*width*height) |
| Power system | Panasonic AC Servo Motor + Driver + high-precision ball screw |
| Power supply | 220V,50HZ, |
| Power | 0.4KW(depending on different demand of force, using different motor) |
| Machine weight | (about)250 Kg |
| Units |
Kg, N, LB, TON, can be exchanged. |
