Product Details:
|
| Force: | 2kn,5kn,20kn,50kn, | Material: | Stainless Steel |
|---|---|---|---|
| Speed Accuracy: | Less Than ±0.5% | Brand: | GSKA |
| Keyword: | Universal Tensile Testing Machine | Stoke: | 650~1200mm |
| Effective Test Force Range: | 0.02/100~100% | Power: | Electronic |
| High Light: | Tensile Testing Machine,Universal Testing Machine |
||

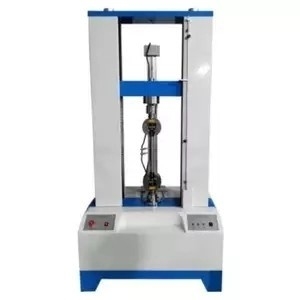

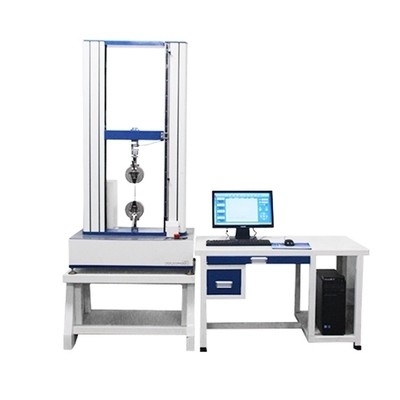

CE Rustproof Universal Tensile Testing Machine Multifunctional
characteristic:
Tensile testing machine is also known as universal material testing machine. The universal testing machine is a mechanical force testing machine used to test various materials for mechanical properties such as static load, tension, compression, bending, shearing, tearing, peeling, etc. It is suitable for plastic sheets, pipes, Various physical and mechanical performance tests of profiled materials, plastic films, rubber, wire and cable, steel, glass fiber and other materials are developed for materials, and are indispensable testing equipment for physical property testing, teaching research, quality control, etc. Tension machine fixtures are used as instruments. An important part, different materials require different fixtures, and it is also an important factor for whether the test can be carried out smoothly and the accuracy of the test results.
| Capacity | 1,2,5,10,20,50,100,200,500,1000,2000,5000 KG optional(or customize) | |
| Accuracy level | 0.5% | |
| Effective pull space | 1200mm(contain grips) | |
| Effective test width | 400mm | 320mm |
| Effective test force range | 0.02/100~100% | |
| Speed accuracy | Less than ±0.5% | |
| Displacement accuracy | Less than ±0.5% | |
| Deformation test accuracy | Less than ±0.5% | |
| Sensor | high accuracy sensor | |
| Test force resolution | 1/250,000 | 1/150,000 |
| Test Speed | 0.1~500mm/min | 50~500mm/min |
| Motor system | Panasonic servo motor + Panasonic sevor drive | AC motor + AC drive |
| Software controlling system | Fully computer control, can do constant stress, constant strain, constant displacement,ect. test | |
| Lifting control | Computer control or manual button control | |
| Grips | Customize according to customer requirements | |
| Optional parts | Lenovo computer | |
| Dimension | 80×50×150cm | |
| Weight: | About 145 kg | |
| Operation method | computer control | |
| Operation system | TM2102 | |
| Power | 1Ø,220V/50HZ | |
Test function:
1. The use of multi-threaded parallel processing technology, the testing process is displayed at the same time force - displacement, force - time, displacement - time, stress - strain curve, you can easily switch to the curve of the screen to see, and can view the user settings, etc.
2. The flexible and powerful way to customize the test method, with constant speed, position shift, given the strength, will power rates, given stress, stress rate constant, constant strain, strain rate and other fixed control mode, enabling complex multi-step nested loop control. It can be set to automatic return, automatic judgment fracture, auto-zero function
3. Standardized test process control and report output templates so that you can define as many test standard for users to call, covering GB, ASTM, DIN, JIS, BS ... almost all test criteria
4. Combining different fixtures and accessories, do all kinds of products and materials most strongly, breaking strength, peel strength, tensile strength, shear strength, tear strength, maximum deformation, yield strength, elongation, modulus of elasticity, ring stiffness, non-proportional elongation, interval minimum force, interval average power, power take constant elongation, elongation given power to take as many as more than 400 pilot projects
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
