Product Details:
|
| Test Speed: | 0.1~300mm/min (adjustable) | Material: | Stainless Steel |
|---|---|---|---|
| Speed Accuracy: | Less Than ±0.5% | Brand: | GSKA |
| Keyword: | Universal Tensile Testing Machine | Stoke: | 650~1200mm |
| Effective Test Force Range: | 0.02/100~100% | Power: | Electronic |
| High Light: | Tensile Testing Machine,Universal Testing Machine |
||

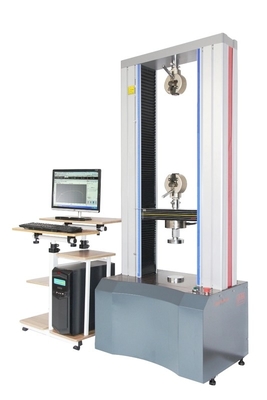

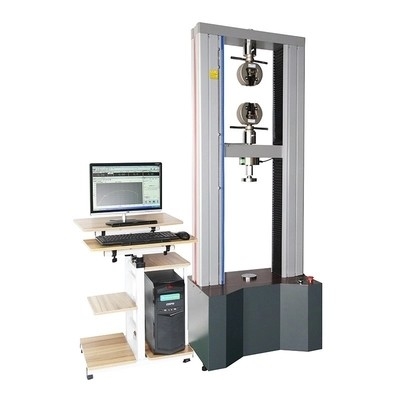

AC220V 50HZ Antiwear Tensile Strength Equipment Capacity 1000kg 5000kg
peculiarity:
Tensile Test Equipment is used to test tension, compression, shearing force, adhesion, peeling force, tear strength,...etc. of specimen, semi-product and finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile,...etc. , which are the basic facilities for input quality contorl (I.Q.C), Quality Control (Q.C.), Physical Inspection, Mechanics Research and Material Development.
Main Technical Parameter: Tensile Test Equipment:
| Items | Specification |
| Sensor | Celtron load cell |
| Capacity | 1000, 2000, 3000, 5000kg |
| Unit Switchover | G, KG, N, LB |
| Display Device | PC |
| Resolution | 1/250,000 |
| Accuracy | ±0.5% |
| Max. Stroke | 1200mm (including fixture) |
| Test Speed | 0.1-500mm/min (adjustable ) |
| Motor | Panasonic Servo Motor |
| Screw | High Precise Ball Screw |
| Elongation Accuracy | 0.001mm |
| Power | AC220V, 50HZ |
| Weight | Approx.250kg |
| Accessories | One set tensile clamp,one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual |
Usage:
Universal tensile test equipment is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.
Universal test software:
The TM2101 software is designed purposely for computer controlled electronic universal testing machine, used for tension, compress, bend, shear, tearing andpeel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force maximum deformation, yielding point and elastic modulus; this universal test equipment system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
