Product Details:
|
| Tester Resolution: | Max Load 1/200000 | Material: | Stainless Steel |
|---|---|---|---|
| Speed Accuracy: | Less Than ±0.5% | Brand: | GSKA |
| Keyword: | Universal Tensile Testing Machine | Stoke: | 650~1200mm |
| Power: | Electronic | Effective Test Force Range: | 0.02/100~100% |
| High Light: | Tensile Testing Machine,Universal Testing Machine |
||

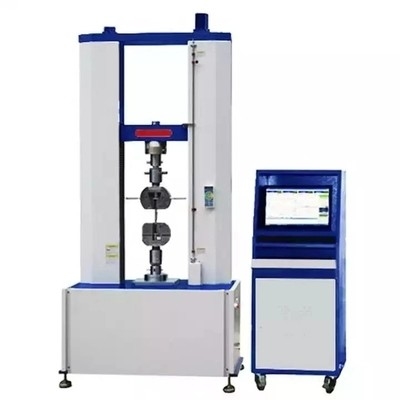

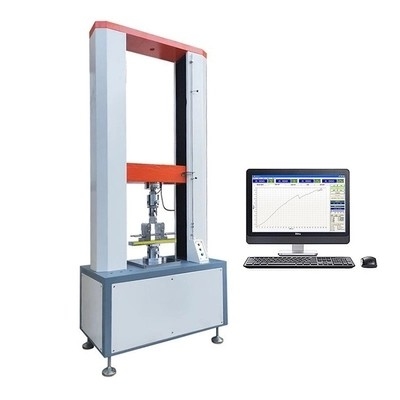

AC 220V 50HZ Universal Tensile Testing Machine Multifunctional
Main functions:
This test machine is applied to test the flexible material with large deformation. such as rubber, plastics, leather and others to complete the test of tensile, tear, adhesive strength, peel and other tests, it is equipped with large deformative extensometer which has the specialized terminology used in measurement of specimen, suitable for testing large deformation of materials.
Applicable industry:
It is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum & Chemical; other industries.
Main feature:
Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, calculation and storage. It can automatic calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, automated statistical results; automatically recorded the biggest point, breaking point, the designated point value or the rate of elongation; Using computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics processing module, printing reports, product performance reached the international advanced level.
Main Technical Parameter: Tensile Test Equipment:
| Items | Specification |
| Sensor | Celtron load cell |
| Capacity | 1000,2000,3000,5000kg |
| Unit Switchover | G, KG, N, LB |
| Display Device | PC |
| Resolution | 1/250,000 |
| Accuracy | ±0.5% |
| Max. Stroke | 1200mm (including fixture) |
| Test Speed | 0.1-500mm/min (adjustable ) |
| Motor | Panasonic Servo Motor |
| Screw | High Precise Ball Screw |
| Elongation Accuracy | 0.001mm |
| Power | AC220V, 50HZ |
| Weight | Approx.250kg |
| Accessories | One set tensile clamp,one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual |
Usage:
Universal tensile test equipment is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.
Universal test software:
The TM2101 software is designed purposely for computer controlled electronic universal testing machine, used for tension, compress, bend, shear, tearing andpeel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force maximum deformation, yielding point and elastic modulus; this universal test equipment system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
