Product Details:
|
| Test Speed: | 0.1~300mm/min (adjustable) | Material: | Stainless Steel |
|---|---|---|---|
| Speed Accuracy: | Less Than ±0.5% | Brand: | GSKA |
| Keyword: | Universal Tensile Testing Machine | Stoke: | 650~1200mm |
| Effective Test Force Range: | 0.02/100~100% | Power: | Electronic |
| High Light: | Tensile Testing Machine,Universal Testing Machine |
||

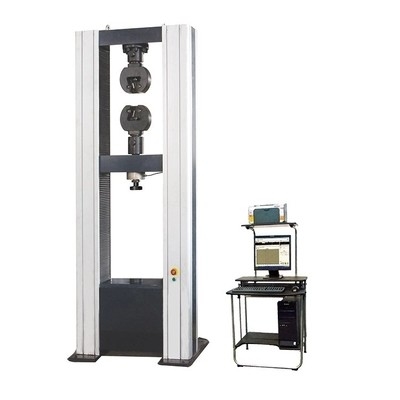

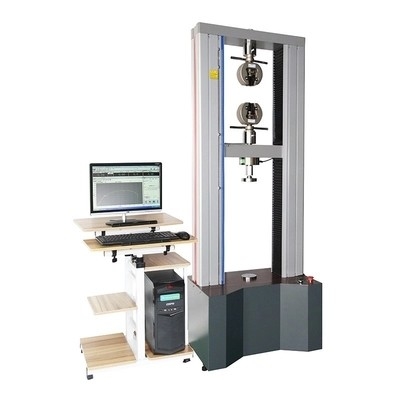

Stainless Steel Universal Tensile Testing Machine 10T Dustproof
Application Details:
1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
3. Deformation under defined load: Test deformation under defined load of tested sample
4. Load under defined deformation: Test load under defined deformation of tested sample
5. Universal test software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
Tensile testing machine is also known as universal material testing machine. The universal testing machine is a mechanical force testing machine used to test various materials for mechanical properties such as static load, tension, compression, bending, shearing, tearing, peeling, etc. It is suitable for plastic sheets, pipes, Various physical and mechanical performance tests of profiled materials, plastic films, rubber, wire and cable, steel, glass fiber and other materials are developed for materials, and are indispensable testing equipment for physical property testing, teaching research, quality control, etc. Tension machine fixtures are used as instruments. An important part, different materials require different fixtures, and it is also an important factor for whether the test can be carried out smoothly and the accuracy of the test results.
| Item | Description |
| Frame capacity | 10T |
| Load cell brand | USA brand transcell load cell for high accuracy 10T (2T, 5T are optional) |
| Load accuracy | 0.5% F.S |
| Control system | PC with windows 7 system |
| Motor | Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Vertical test space | 1100mm including fixture |
| Horizontal test space | ≤400mm |
| Test speed | 0.1~300mm/min (adjustable) |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features | E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Universal test software:
The TM2101 software is designed purposely for computer controlled electronic universal testing machine, used for tension, compress, bend, shear, tearing andpeel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force maximum deformation, yielding point and elastic modulus; this universal test equipment system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
