Product Details:
|
Control: | Computer Control | Weight: | 100-500Kg |
---|---|---|---|
Accuracy Of Displacement Measurement: | Tolerance: ±0.5%/ Tolerance: ±0.2% | Overload Protection: | Overload 10%,automatic Protection |
Effective Testing Width: | 390mm | Effective Tensile Stroke: | 800mm;1000mm;1200mm |
Tester Resolution: | 740m3/H | Measuring Accuracy: | Display The Value ±1%/Display The Value±0.5% |
High Light: | Microcomputer Tensile Testing Machines,AC220V Tensile Testing Machines,Servo Control Tensile Strength Tester |

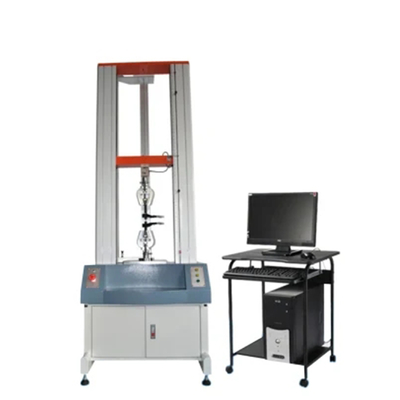

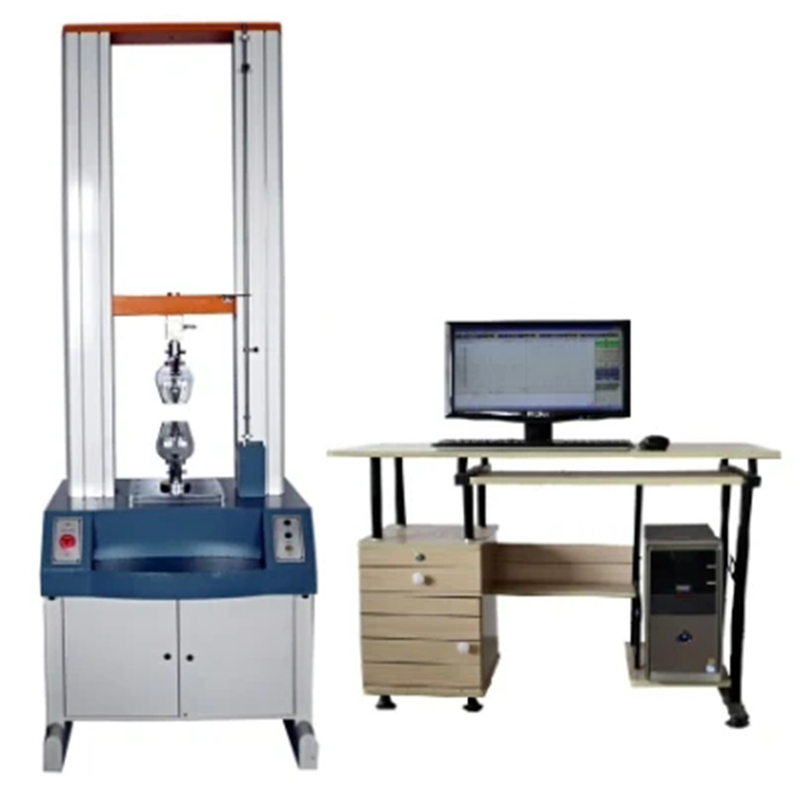

Servo Control Micro-Computer Electronic Double Column Universal Tensile Testing Machine AC220V
Product Description:
This machine is suitable for stretching and compressing rubber, plastic, aluminum-plastic pipe, composite material, waterproof material, preventer, yarn, fiber, wire and cable, paper, spring, wood, packaging material, tape and other materials , Bending, shearing, tearing, peeling and other mechanical properties test, but also can realize constant stress, constant strain, creep, relaxation and other multi-closed-loop tests, after configuring special devices, it can also complete torsion, cupping and other test items.
The tensile testing machine system is suitable for measuring the mechanical properties and related physical parameters of various materials under tension, compression, bending, shearing, tearing, peeling, puncture and other states. It can be used for tensile, compression, three-point bending, four-point bending, shearing, tearing, finished shoe puncture, carton holding pressure, foam cyclic compression, spring tension and compression and various dynamic and static cycle tests, and can be used for Test the breaking strength, elongation at break, tear strength, stitch strength, stitch slip, peel strength, etc. of various yarns, fabrics and other textiles
Corresponding standard :
GB/T16491-1996 Electronic Universal Testing Machine.
Technical parameter:
Model | GSKA-800 |
Max load | 5KN,10KN, 20KN |
Accurate grade | 1 % /0.5 % |
Effective measuring range | 0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
Measuring accuracy | Display the value ±1%/Display the value±0.5% |
Tester resolution | Max load 1/200000,regardless of inside and outside,constant the resolution |
Load sensor |
Basic configuration:sensor(max load): one Extended configuration:can add more sensors |
Effective testing width | 390mm(can be widened according to customer’s requirement ) |
Effective Tensile stroke | 800mm;1000mm;1200mm,(can be increased the height according to customer’s requirement) |
Range of testing speed | 0.001~200mm/min ; 500mm/min (1000mm/min is option) |
Accuracy of displacement measurement | Tolerance: ±0.5%/ tolerance: ±0.2% |
Deformation of measured system(according to the requirements) |
Min span :10mm, Max range of deformation :800mm Extended deformation :Min span: 25mm,50mm,100mm, range of deformation :5mm,10mm,25mm |
Accuracy of measured deformation | Tolerance :±0.5% (according to requirement of customer to choose the larger or small deformation) |
safety | Electronic-limit protection |
Testing platform moving device | Fast /slow two speeds to control,can jog |
Return back | Manual or automatic operation,After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
Overload protection | Overload 10%,automatic protection |
fixture | A set of tensile fixture |
Machine size | 80x55x220cm(length*width*height) |
Power system | Panasonic AC Servo Motor + Driver + high-precision ball screw |
Power supply | 220V,50HZ, |
Power | 0.4KW(depending on different demand of force, using different motor) |
Machine weight | (about)250 Kg |
Units |
Kg, N, LB, TON, can be exchanged. |
