Product Details:
|
| Power Source: | AC220V | Control: | Computer Control |
|---|---|---|---|
| Weight: | 100-500Kg | Overload Protection: | Overload 10%,automatic Protection |
| Effective Testing Width: | 390mm | Effective Tensile Stroke: | 800mm;1000mm;1200mm |
| Tester Resolution: | 740m3/H | Measuring Accuracy: | Display The Value ±1%/Display The Value±0.5% |
| High Light: | CE Tensile Testing Machines,Servo Control Tensile Testing Machines,50kn Tensile Test Equipment |
||

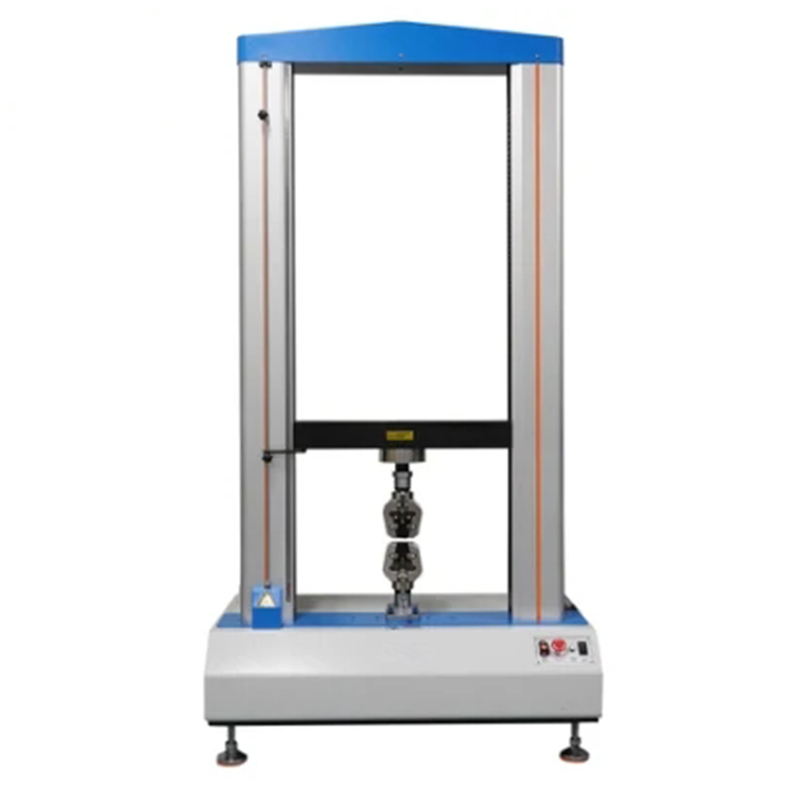

50kn Capacity Servo Control Tensile Test/Testing Machine OEM
Features:
1. Powerful test function, with different fixtures, it can carry out a variety of test requirements to meet the needs of users.
2. The software has more powerful functions. Various test results and test curves can be displayed and automatically marked in the interval. It can be upgraded at any time to realize positioning shift, fixed force, fixed time, repeated fatigue testing, etc.
3. The design of the machine is beautiful, generous, easy to operate, and the software has strong scalability and high accuracy.
4. Servo motor drive, high precision ball screw drive, low failure rate and simple maintenance.
Main functions:
This test machine is applied to test the flexible material with large deformation. such as rubber, plastics, leather and others to complete the test of tensile, tear, adhesive strength, peel and other tests, it is equipped with large deformative extensometer which has the specialized terminology used in measurement of specimen, suitable for testing large deformation of materials.
Applicable industry:
It is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum & Chemical; other industries.
Product Parameters:
| Item | GSKA-50K1 | GSKA-50K2 |
| Capacity (MAX) | 50KN (optional 10N~50KN range force sensor) | |
| Control mode | full computer control mode, powerful software function | |
| Power unit | N, kN, gf, kgf, lbf, kP, tf (SI), tf (long), etc. | |
| Length unit | mm, cm, Inch, m, km, um, etc. | |
| Power resolution | 1/500,000; | |
| Accuracy | ±0.1% | |
| Travel resolution | 1/500,000mm | |
| Accuracy | ±0.1% | |
| Effective stroke | 700mm; (customizable) | 1200mm; (customizable) |
| Speed range | 0.01~500mm/min; (customizable) | |
| Test space | 420mm left and right (customizable) | |
| Shutdown mode | overload shutdown, emergency stop button, automatic shutdown of specimen damage, automatic shutdown of upper and lower limit settings | |
| Machine power | Servo motor drive | |
| Machine size (W×D×H) | 88×66×208cm | 108×66×208cm |
| Net weight of machine | 420KG | 480KG |
| Power | 400W | |
| Power supply | 220V 50~60HZ | |
| Machine equipment | 1 USB communication line, 1 software | |
| Optional accessories | tensile fixture, compression fixture, etc.; (purchase different fixtures according to different test standards) |
|
Advantage:
Ø 24 hours online
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
