Plastic Compression Testing Machine , Universal Tensile Testing Machine OEM

Plastic Compression Testing Machine Universal Tensile Testing Machine OEM

1.Application:

It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

2.Standard:

ASTM, ISO, DIN, GB and other international standards.

3.Main Technical Parameters:

4. Main Unit Feature:

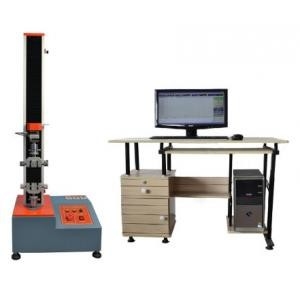

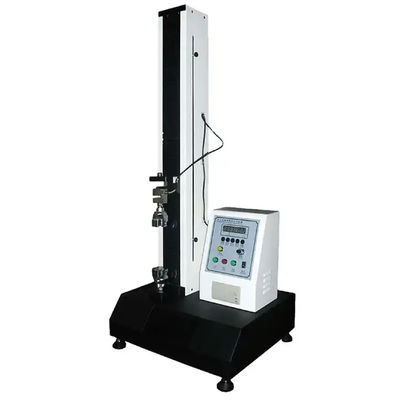

4.1 Adopt single column structure, lower for tensile, upper for compression, double space. The beam is stepless lifting, light but rigid.

4.2 Adopting ball screw drive, realize no clearance transmission,make sure the precision control of the test force and deformation speed.

4.3 The photoelectric encoder is the displacement sensor, with high resolution, strong anti-interference ability.

4.4 The shiel plate with limit mechanism used to control the beam moving range, in order to avoid sensor damaged due to the moving distance is too large.

4.5 The table, moving beams is made of high quality precision machining steel plate , not only reduce the vibration generated by specimen fracture, but also improve the stiffness.

4.6 The motor tail is upwards, above the work surface, this design makes the main unit lower space narrowing, the whole machine is more coordinating, and more easy to spread out the heat generated by the motor rotation, extend electrical components life.

4.7 Three columns of mandatory orientation, make the main unit rigidity much improved, to further ensure the repeatability of measurement.

4.8 Adopt bolt type grip installation, make the grip replace easier.

5. Software function:

5.1 Defined function: according to different types of users, different material properties, different test standards, different languages, flexible setting the test program to meet the test requirements.

5.2 Input Function: Entry specimen parameters before the test, you can single input sample parameter, you can also batch input sample parameters, you can modify the sample parameters before the test, the specimen parameters can be modified after the test, fully satisfy your operating habits.

5.3 Data processing query functions: fully equipped data query function, print function, the export function to ensure the accuracy of the test data, reliability, real embody and reflect the nature and characteristics of the material test data.

5.4 Curve analysis function: All the material properties can be reflected by the data curve, so the powerful data curve analysis function can help you better mastery and understanding of the material test properties, which is your best helper to analyze the material.
