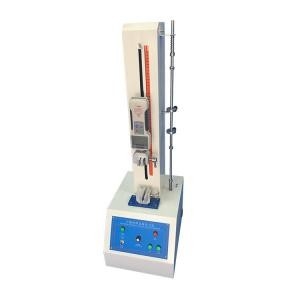

Computer Servo Universal Material Testing Machine , Tensile Testing Machines Oem

Large Image : Computer Servo Universal Material Testing Machine , Tensile Testing Machines Oem

Product Details:

Place of Origin:	Made in China
Brand Name:	GSKA
Certification:	ce
Model Number:	Top Vertical Load Teste

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	US $1,200-8,000 / Piece
Packaging Details:	Standard package of Silent Diesel Generator
Delivery Time:	after payment 3-20days can be shipping
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	50000 pcs per month

Contact Now

Computer Servo Universal Material Testing Machine , Tensile Testing Machines Oem

Description

Speed Control Accuracy:	Within ±0.2% Of Set Value	Test Force Range:	0.4%~100%FS (full Scale)
Function:	Force Tester	Test Range:	500-5000N
Standard:	ISO ASTM	Warranty:	1 Year
Test Speed:	10-500mm/min	Power Supply:	220 V/50Hz
High Light:	500N Universal Material Testing Machine , Servo Universal Material Testing Machine , 5000N Tensile Testing Machines

Computer Servo Universal Material Testing Machine Tensile Testing Machine Oem

Professional technology:

* The tester adopts 7-inch professional color LCD screen.

* Multi level authority management is convenient for laboratory managers to standardize the use of equipment

* Support remote upgrade and maintenance

* English menu operation interface, easy to use, easy to learn, understand and operate

Product Description

Universal Material Testing Machine is mainly used for tensile, compression, bend and other mechanical tests, analysis and study of metal and non-metal materials. It can automatically obtain such parameters as ReH, ReL, Rp0.2, Fm, Rt0.5, Rt0.6, Rt0.65, Rt0.7, Rm and E and conduct test and provide data according to GB, ISO, DIN, ASTM, JIS and other international standards

Product Parameter:

Product name		computerized servo-driven universal material testing machine
Max. test force		5KN 10KN 20KN 50 KN 100KN
Accuracy		Class 0.3
Load parameters	Test force range	0.4%~100%FS (full scale)
	Test force indication error	With ±0.5% of indicated value
	Test force resolution	with the full scale not graded and the resolution remaining constant in the full scale
Displacement parameters	Displacement indication error	Within ±0.2% of indicated value
	Displacement resolution	0.015μm
	Speed range	0.001~200mm/min
	Speed control accuracy	Within ±0.2% of set value
Main frame parameters	Overall dimensions	95×60×210cm
	Effective stroke (without fixture)	800mm
	Effective test width	400mm
	Power supply	220V/50Hz, ±10%
	Power	3KW
	Weight	500KG

Computer Servo Universal Material Testing Machine , Tensile Testing Machines Oem 0

Advantage:

Ø 24 hours online

Ø Best price, fast delivery

Ø OEM,ODM

Ø Oversea offices

Ø Own import and export business license

Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
