Product Details:
|
| Load Way: | Electronic Load | Display: | Computer Or PLC |
|---|---|---|---|
| Weight: | 0-100Kg | Max. Testing Force: | 3000n |
| Est Spacing: | Est Spacing | Test Resolution: | 1/10000 |
| Accuracy Grade: | 0.5 | Loading Method: | Static Load |
| Control: | Computer Or Manual Control | ||
| High Light: | 300kg Tensile Testing Machine,3000n Tensile Testing Machine,PLC Laboratory Testing Equipment |
||

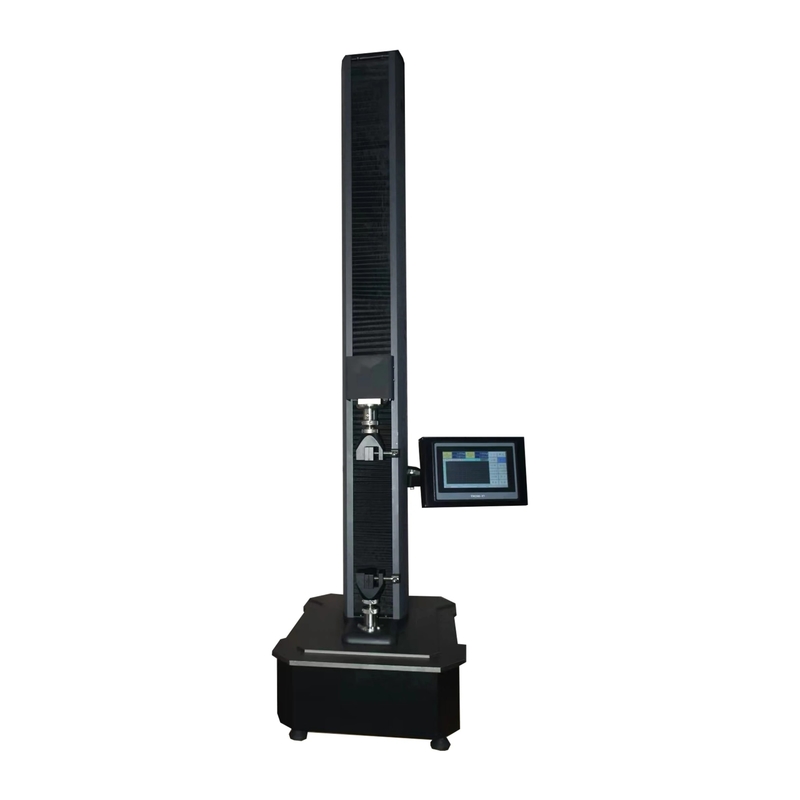

Servo Universal Tensile Testing Machine, Laboratory Testing Equipment
Product Description:

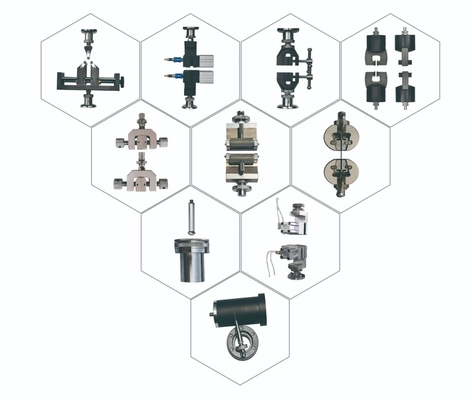

Universal Tensile Testing Machine is suitable for rubber and plastics, paper products, color printing packaging, adhesive tapes, luggage and handbags, textiles, pharmaceuticals, daily chemicals, food, wire and electronics and other industries. It can test the physical properties of various materials, finished products and semi-finished products, and can choose various fixtures for tensile, compressive, tensile, compressive, bending, tearing, peeling, adhesion, shearing and other tests.
This machine is a newly designed and developed microcomputer type tensile (compression) force testing machine. The company has completely changed the shortcomings of the traditional material testing machine, which is cumbersome, complicated in operation, and single in performance. The data acquisition and operation speed is high, the product performance is stable and reliable, the measurement accuracy is high, and the operation is simple and easy to understand.
Product Features:
★Servo Motor Control
★The machine includes a thermal printer, which can automatically output the test results;
★Units can be switched arbitrarily: Strength: kN/N/kgf/gf/t/lbf;
★Displacement: mm/cm/in;
★Automatic homing function;
★The overload protection function can be set;
★Various test methods such as fixed load and positioning displacement.
★The height and angle of the control screen are adjustable, which can better match the usage habits of various groups of people.
Product Parameters:
| Capacity selection | 10,20,50,100,200,300kg optional |
| Display | Touch screen display |
| Force measurement accuracy | better than ±1.0% |
| Force resolution | 1/10,000 |
| Effective force range | 1~100%F.S |
| Displacement resolution | 0.001mm |
| Displacement indication accuracy | better than ±1.0% |
| The test speed range | 100~500mm/min,can be adjusted arbitrarily |
| The maximum test stroke | up to 600mm, excluding clamps |
| Effective test space | 120mm front and rear |
| Force unit switching | kgf,gf ,N,kN,Ibf |
| Stress unit switching | MPa,kPa,kgf/cm2,Ibf/in2 |
| Deformation unit switching | mm,cm,in |
| Stop mode | Upper and lower limit safety setting, emergency stop button, test piece damage detection |
| Size | 50×50×160cm(W×D×H) |
| Weight | About 75kg |
| Power | High-quality stepper motor/servo motor |
| Power supply | AC220V,50/60Hz,10A or specified |
FQA:
Q1: What's your guarantee?
A: The product warranty is 12 months, but lifetime service. Non-consumable parts will be provided free of charge in the event of performance
failure due to non-human damage within 12 months.
Q2: How to provide video?
A:Yes. If needed, our engineers will record a special video for you.
Q3:Is your company a trading company or a factory?
A: Yes, we are manufacturing plant and trade (integration). 10 years focused on the field of test instruments. 5 years of export experience, warmly welcome to visit the factory.
Q4: After the order is placed, when will it be shipped?
A: Usually about 15 days. If we have stock, we can arrange shipment within 10 days. Please note that our production lead time depends on the specific project and the number of projects.
Q5:What about after-sales service and product quality?
A:The warranty is 12 months. After warranty, professional after-sales service team will provide perfect technical support. Help customers to solve the problems encountered in the process of use, professional and timely handling problems and complaints. Each instrument must be inspected and tested for 100% quality at the time of shipment and delivery. Product use training, each of our products provide video training to show you how to install and operate. Engineers will go abroad for training and maintenance.
Q6:How about the packaging of the equipment?
A: Before the machine is put into the standard export wooden box, the bubble film is covered first, which not only has good shock absorption and impact resistance, but also has the advantages of non-toxic, odorless, moisture-proof corrosion and good transparency.
