Product Details:
|
| Function: | Automatic Counting,Automatic Compaction, Automatic Shutdo | Compaction Speed: | 60±5 Times/minute |
|---|---|---|---|
| Hammer Weight: | 10210g±10g/4536±9g | Test Mode Cylinder Diameter: | 152.4mm/101.6mm |
| Weight: | 175Kg | Compaction Preset Number: | 0-999times |
| Ambient Temperature: | 5~40℃ | Drop Distance: | (457±1.5)mm |
| High Light: | Electric Asphalt Compactor,Marshall Compaction Test Device |
||

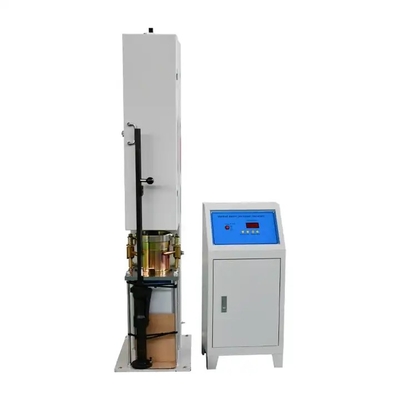

Marshall Electric Compactor Asphalt Compactor Marshall Compaction Test Device
product introduction:
This equipment is a sample forming equipment in asphalt mixture, suitable for standard compaction method for the laboratory to carry out asphalt mixture physical and mechanical properties test, Marshall test, indirect tensile test, etc. Widely used in the asphalt production enterprises, highway, bridge construction units and related colleges and universities, research institutions.
the implementation of standards:
JTG E20-2011 Test Rules for Asphalt and Asphalt Mixture in Highway Engineering
product characteristics:

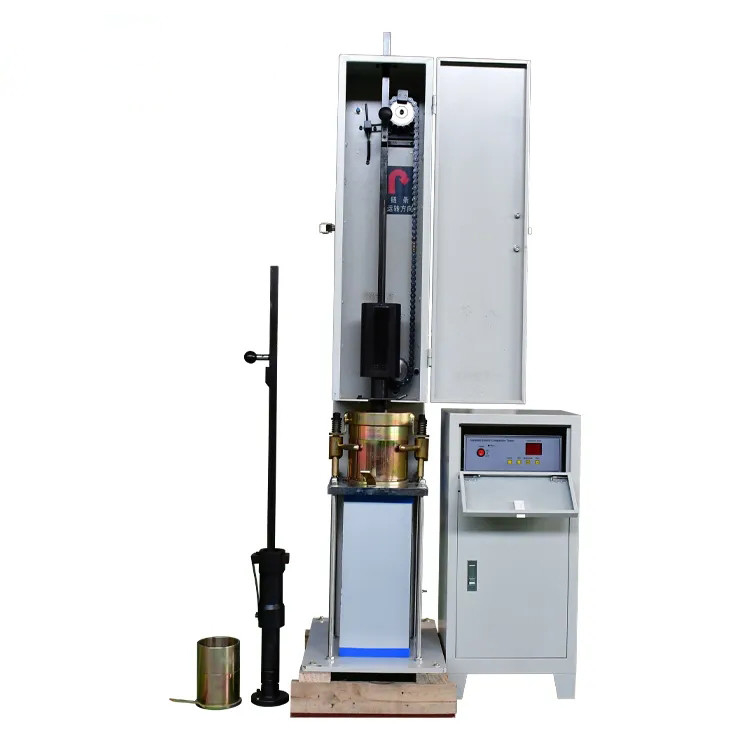

1, the instrument for the floor structure, by mechanical transmission and instrument control box composed of two parts, mechanical transmission mechanism for motor, reducer, chain drive.
2, the circuit control is controlled by a single chip microprocessor, can be preset counter, count value can be in the range of 0 ~ 999 arbitrary choice, can be set according to the number of compaction automatically compaction, automatic stop, automatically cut off the power, and shut off the motor, can ensure that stop in the convenient lifting hammer loading and unloading position.
3, this instrument is suitable for compaction Φ101.6mm×63.5mm specimen.
|
Drop distance
|
(457±1.5)mm
|
|
Compaction speed
|
60±5 times/minute
|
|
Compaction preset number
|
0－999times
|
|
Hammer weight
|
10210g±10g/ 4536±9g
|
|
Test mode cylinder diameter
|
152.4mm/101.6mm
|
|
Dimensions
|
670X570X1800mm
|
|
Weight
|
175kg
|
|
Ambient temperature
|
5～40℃
|
|
Environment humidity
|
≦85﹪
|
FQA:
Q1: What's your guarantee?
A: The product warranty is 12 months, but lifetime service. Non-consumable parts will be provided free of charge in the event of performance
failure due to non-human damage within 12 months.
Q2: How to provide video?
A:Yes. If needed, our engineers will record a special video for you.
Q3:Is your company a trading company or a factory?
A: Yes, we are manufacturing plant and trade (integration). 10 years focused on the field of test instruments. 5 years of export experience, warmly welcome to visit the factory.
Q4: After the order is placed, when will it be shipped?
A: Usually about 15 days. If we have stock, we can arrange shipment within 10 days. Please note that our production lead time depends on the specific project and the number of projects.
Q5:What about after-sales service and product quality?
A:The warranty is 12 months. After warranty, professional after-sales service team will provide perfect technical support. Help customers to solve the problems encountered in the process of use, professional and timely handling problems and complaints. Each instrument must be inspected and tested for 100% quality at the time of shipment and delivery. Product use training, each of our products provide video training to show you how to install and operate. Engineers will go abroad for training and maintenance.
Q6:How about the packaging of the equipment?
A: Before the machine is put into the standard export wooden box, the bubble film is covered first, which not only has good shock absorption and impact resistance, but also has the advantages of non-toxic, odorless, moisture-proof corrosion and good transparency.
