Product Details:
|
| Maximum Test Force: | 600kn(customizable) | Indication Relative Error: | ≤±0.5% Of The Indicated Value |
|---|---|---|---|
| Displacement Relative Error: | 0.1% | Piston Loading Speed: | 0~10mm/min |
| Testing Machine Accuracy: | 0.5 | Test Force Measuring Range: | 2%~100% FN |
| Stretch Space: | 12000mm(customizable) | Piston No-load Maximum Speed: | 0~15mm/min |
| High Light: | 600kn Tension Testing Machine,Servo Microcomputer Tension Testing Machine,10mm/min Wire Rope Test Bed |
||

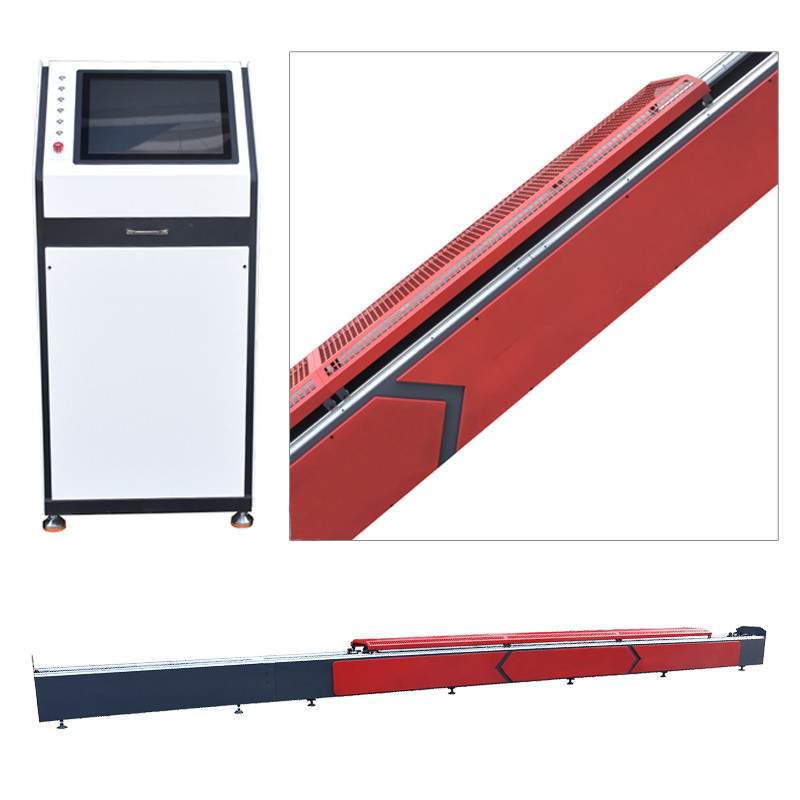

Servo Microcomputer Control Horizontal Tension Testing Machine Wire Rope Test Bed
Product overview:
The instrument is suitable for tensile specimens, generally straightening fracture, determination of one or more mechanical properties defined in 1.3, Widely used in colleges and universities, scientific research institutes, import and export commodity inspection Bureau, quality inspection bureau, building materials quality inspection station and other units of the testing center of metal, non-metal, composite materials and products tensile, compression, bending, shearing, peeling, tearing and other physical and mechanical properties test.
Unless otherwise specified, the test is generally carried out in the range of 10℃ ~ 35℃ at room temperature. For the test with strict temperature requirements, the test temperature should be 23℃±5℃.
Test principle: The sample is clamped between the two collets of the fixture, and the two collets do relative motion. Through the force sensor located in the dynamic collet and the displacement sensor built in the machine, the change of force value and the change of displacement are collected during the test, so as to calculate the tensile, tearing, deformation rate and other performance indicators of the sample.
Main characteristics:
1, automatic protection: automatic overload, overcurrent, overvoltage, undervoltage, upper and lower limit protection.
2, automatic return: moving beam can be set at different speeds, can be accurate automatic return to the initial position of the test.
3. The data and curves are displayed dynamically with the test process. The curves of the same group of tests can be compared with multiple colors superimposed, and any section of the curve can be enlarged and analyzed.
|
model
|
GSKA-60WS
|
|
maximum test force
|
600KN(customizable)
|
|
Testing machine accuracy
|
0.5
|
|
Force measurement range
|
2%～100% FN
|
|
Relative error of displacement indication
|
0.1%
|
|
Stretching space
|
12000mm(customizable)
|
|
Space adjustment method
|
bolt fixation
|
|
Piston loading speed
|
0～100mm/min
|
|
Piston stroke
|
1200mm(customizable)
|
|
Tensile attachment for round sample
|
φ10～φ60
|
FQA:
Q1: What's your guarantee?
A: The product warranty is 12 months, but lifetime service. Non-consumable parts will be provided free of charge in the event of performance
failure due to non-human damage within 12 months.
Q2: How to provide video?
A:Yes. If needed, our engineers will record a special video for you.
Q3:Is your company a trading company or a factory?
A: Yes, we are manufacturing plant and trade (integration). 10 years focused on the field of test instruments. 5 years of export experience, warmly welcome to visit the factory.
Q4: After the order is placed, when will it be shipped?
A: Usually about 15 days. If we have stock, we can arrange shipment within 10 days. Please note that our production lead time depends on the specific project and the number of projects.
Q5:What about after-sales service and product quality?
A:The warranty is 12 months. After warranty, professional after-sales service team will provide perfect technical support. Help customers to solve the problems encountered in the process of use, professional and timely handling problems and complaints. Each instrument must be inspected and tested for 100% quality at the time of shipment and delivery. Product use training, each of our products provide video training to show you how to install and operate. Engineers will go abroad for training and maintenance.
