Product Details:
|
| Body Materials: | SUS#304 Stainless Steel Plate | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Impact Recovery Time: | (-40)℃~(+150)℃≤5min | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Accuracy: | ±0.5℃ |

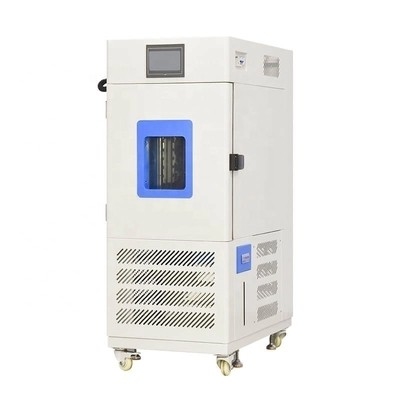

OEM 220V Stability Temperature Test Chambers Waterproof Vertical Control
Features:
1. Unique design of the box within the wind circulation structure, to ensure that under the conditions of the test with the case of
uniformity within the box within ± 2 ℃
2. Unique design of the humidity test when the top of the box anti-drip design to ensure that live test from water short circuit,
surface water pollution
3. Using the latest environmentally friendly adsorption drying processor, effective control of the product when the surface
temperature condensation
4. The refrigeration room is fully sealed and soundproofed to reduce machine noise and box resonance, machine noise control within
75db./ Other Contact us
| External size WHD (cm) |
60*161.5*120.5 |
| Window Size WH (mm) |
400*500mm |
| Test Hole Size Diameter (mm) |
2 holes 50mm of each |
| Weight | 225KG |
| Voltage | 1Ø 220V 50Hz/ 3Ø 380V 60Hz/Customized |
| Temperature range | -70℃ ～180℃ |
| Humidity range | 10% ～98%RH (5%~98% R.H. customized) |
| Temp.& humidity control fluctuation | ≤±0.5℃, ≤ ±2.5%RH |
| Indication resolution | 0.01℃, 0.1 %RH |
| Temp.&humidity Uniformity | ≤±1.5℃,≤±2.5% RH |
| Heat up&Cool down time | ≤5℃/min for heating; ≤ 1.2℃/min for cooling |
| Cooling type | Air cold |
| Chamber materials | SUS#304 stainless steel for Inner chamber with thickness 1.5mm Steel plate for external chamber with thickness 1.5mm |
| Insulation materials | Rigid polyurethane foam + ultrafine glass fiber with thickness of 100mm |
|
|
Refrigerating unit, water supply and drainage device, blower fan, power distributing Cabinet; Humidifying and humidity measuring water utilization control device |
|
|
Heat emission blower fan Distribution switchboard Test terminal of sample USB physical interface (need to be purchased together with centralized monitoring software) Residual current circuit breaker of main power supply |
|
|
Basin heating humidifying method Stainless steel armored heater is adopted in basin humidification Control mode of heater: non contact equal period pulse-width modulation, SSR (solid state relay) Water level control device, dry heating prevention device of heater |
| Humidifier | 1. Basin heating humidifying method 2. Control mode of heater: non contact equal period pulse-width modulation, SSR (solid state relay) 3. Water level control device, dry heating prevention device of heater |
|
|
Temperature (humidity) control display, over temperature protection setting device, emergency switch, run indicator, failure indicator |
|
|
Imported Compressor Fits wide range of pressure Higher heating efficiency Easy to maintain |
Environmental test chambers are systems that allow users to manipulate the environmental conditions of an enclosed space to run controlled tests on a subject. Researchers, engineers, scientists, and manufacturers utilize these conditions to push innovation and ensure whatever products they produce are safe for use.
Environmental test chambers can range in size from half-a-cubic-foot benchtop models all the way up to 12,000-cubic-foot, drive-in rooms.
There are also multiple environmental conditions that test chambers can recreate: temperature and humidity conditions, temperature only conditions, and corrosive conditions through the use of salt spray.
If properly maintained, test chambers can remain operational for 10 years or more.
The type of test chamber you need depends on a number of factors, namely the lab space available to you, the products or components you’re testing, and the standards (see below) to which you’re testing. (For more information on how to determine what test chamber to purchase, read our Test Chamber Buyer’s Guide).
Below are common types of test chambers, categorized by physical style and performance.
Product Usage:
This series of products is suitable for aerospace products, information electronic instruments, materials, electrical, electronic products, and various electronic components to test their performance indicators in high and low temperature or humid and hot environments.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Advantages:
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM, ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
