Product Details:
|
| Heating Rate: | 2~3℃/min (no Load) | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |
| Cooling Type: | Water Cold | Temperature Uniformity: | ±2.0℃ |
| Condenser: | Water-cooled Condensing Agent | Keyword: | Temperature Humidity Chamber |

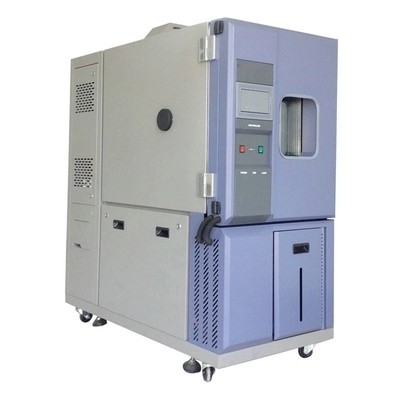

SGS 80L Temperature Humidity Chamber , Anticorrosive Stability Test Chamber
Product introduction
The new generation of constant temperature and humidity box sets the company's many years of successful experience in cabinet design. Based on the humanized design concept, we will try our best to meet customer requirements in every detail from the actual needs of customers, and provide customers with high-quality constant temperature and humidity series product.
This test equipment prohibits: test and storage of samples of flammable, explosive, and volatile substances
Test and storage of corrosive material samples
Testing or storage of biological samples
Test and storage of strong electromagnetic emission source samples
Optional Accessories:
1. Low humi. Dehumidifying system
2. Inner glass door with manual operating ports
3. Temp./ humi. Recorder
4. Pure water treatment device
5. Reverse osmosis water purifier
6. RS-485 interface can be linked to PC and achieve multi-level control and recording software management.
7. LN2 / LCO2 fast cooling-down system
| Temperature Range | 0℃~150℃ |
| Humidity range | 20% R.H~98%R.H |
| Fluctuation/Uniformity | ±0.5℃/±2℃ |
| Heating rate | 1℃/min~3℃/min |
| Cooling rate | 0.7℃/min~1℃/min |
| Accuracy range | Setting accuracy: temperature 0.1℃, humidity 1% R.H, indication accuracy: temperature 0.1℃, humidity 1% R.H |
| Sensors | Platinum resistance. PT100Ω/MV |
| Humidification system | External isolation type, all stainless steel shallow surface evaporative humidifier |
| Dehumidification system | Using evaporator coil dew point temperature laminar flow contact dehumidification method |
| Water supply system | Humidification water supply is automatically controlled. And can recycle the remaining water. Save water and reduce consumption |
| Circulation System | Temperature-resistant and low-noise air-conditioning type motor. Multi-lobe centrifugal wind turbine |
| Standard configuration | 1 set of illuminated glass window, 2 specimen holders, 1 test lead hole (25, 50, 100mm) |
| Security Protection | Leakage, short circuit, over temperature, water shortage, motor overheating, compressor over pressure, overload, over current protection/controller power failure memory |
| Voltage | AC110V/AV220V/AC380V/415V±10% 50±0.5Hz Three-phase five-wire system |
| Usage Environment temp | 5℃~+30℃≤85%R.H |
Equipment structure:
The equipment is mainly composed of a box, a refrigeration system, a heating system, an air circulation system and a control system.

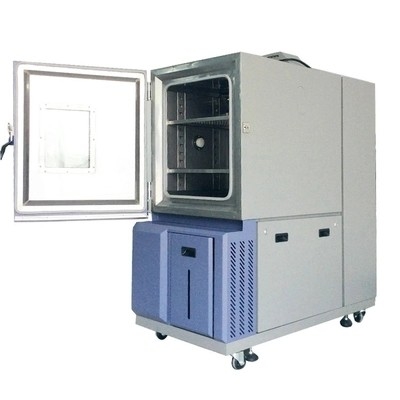

The outer shell of the box is made of cold-rolled steel plate electrostatically sprayed, and the inner tank is made of high-quality stainless steel plate. There is a large-area observation window in the middle of the box door, and is equipped with an observation light, so that the user can clearly see the test situation of the sample. The overall appearance is beautiful and generous. The thermal insulation layer is made of hard polyurethane foam and a small amount of ultra-fine glass wool, which has the characteristics of high strength and good thermal insulation. The main temperature controller of this equipment adopts intelligent digital display temperature and humidity controller, and the operation method of humanized design is easy to learn and use, and the operation of instruments of different functional grades is compatible with each other. The input adopts a digital correction system, with built-in non-linear correction tables for commonly used thermocouples and thermal resistances, and the measurement is accurate and stable. With position adjustment and AI artificial intelligence adjustment functions, 0.2-level accuracy, multiple alarm modes. Heating, cooling, humidification and dehumidification are independent, and the unique BTHC balance temperature and humidity adjustment method.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
