Product Details:
|
| Test Method: | Air To Air | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Controller: | Programmable LCD Touch Screen | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |

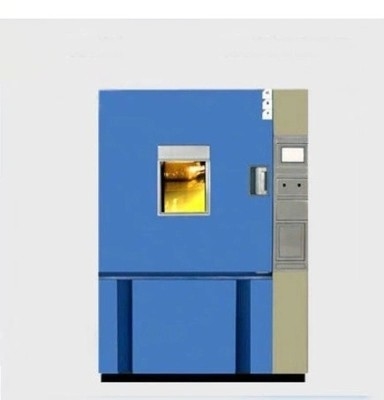

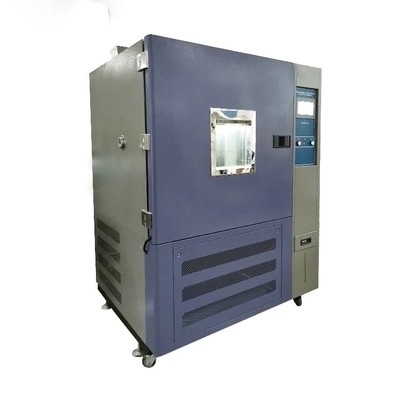

LED Liquid Crystal Display Temperature Test Equipment AC380V 50HZ/60HZ
product description:
The operating temperature range in the chamber from -30 ° C to + 100 ° C is maintained throughout the volume.
| Shock Temperature ragne | -65°C~150°C |
| Heating up time | RT~200°C about 35min |
| Cooling down time | RT~-70°C about 90min |
| Temp recover time/ change time |
≤5min / ≤10sec |
| Temp control accuracy/ | ±0.5°C / ±2.0°C |
| distribution accuracy | |
| Inner materials | SUS 304# stainless steel plate for inner chamber,and stainless steel plate |
| + spray painting for external chamber. | |
| Insulation materials | High-temperature high-density amino acid ethyl ester foam insulator material. |
| Systems | P.I.D+S.S.R+Microcomputer balanced temperature control system. |
| Cooling systems | Semi-hermetic two-stage compressor (water-cooled) / |
| hermetic two-stage compressor (air-cooled). | |
| Safety devices | Fuse switch, high and low pressure protection switch compressors, |
| refrigerant pressure protection switch failure warning system, electronic siren. | |
| Fitting | Outlook window (special purchase), the upper and lower adjustable |
| compartment two energized measured line hole, casters,level bracket. | |
| Power | 3 phase AC380V 50HZ/60HZ |
| Controller | Tanwan TATO or TH900C |
| Compressor | Germany / Bock Brand |
How a Humidity Chamber Works:
The main components of a humidity chamber are mechanisms that introduce moisture and heat. There are a variety of methods used to introduce moisture into the chamber, which can be in the form of a spray or bath. The same concept applies to heat that is supplied in the form of coils or heating elements.
In most cases, humidity chambers are designed, manufactured, and produced to fit the setting that the customer requires. Though there are many varieties of chambers, the basic components of heat and moisture are necessary to create the needed humid conditions.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
The equipment is made from high quality materials and components from leading Russian and European manufacturers. The manufactured equipment undergoes long-term factory tests without fail, which allow us to guarantee a higher - in comparison with the closest competitors - product quality.
